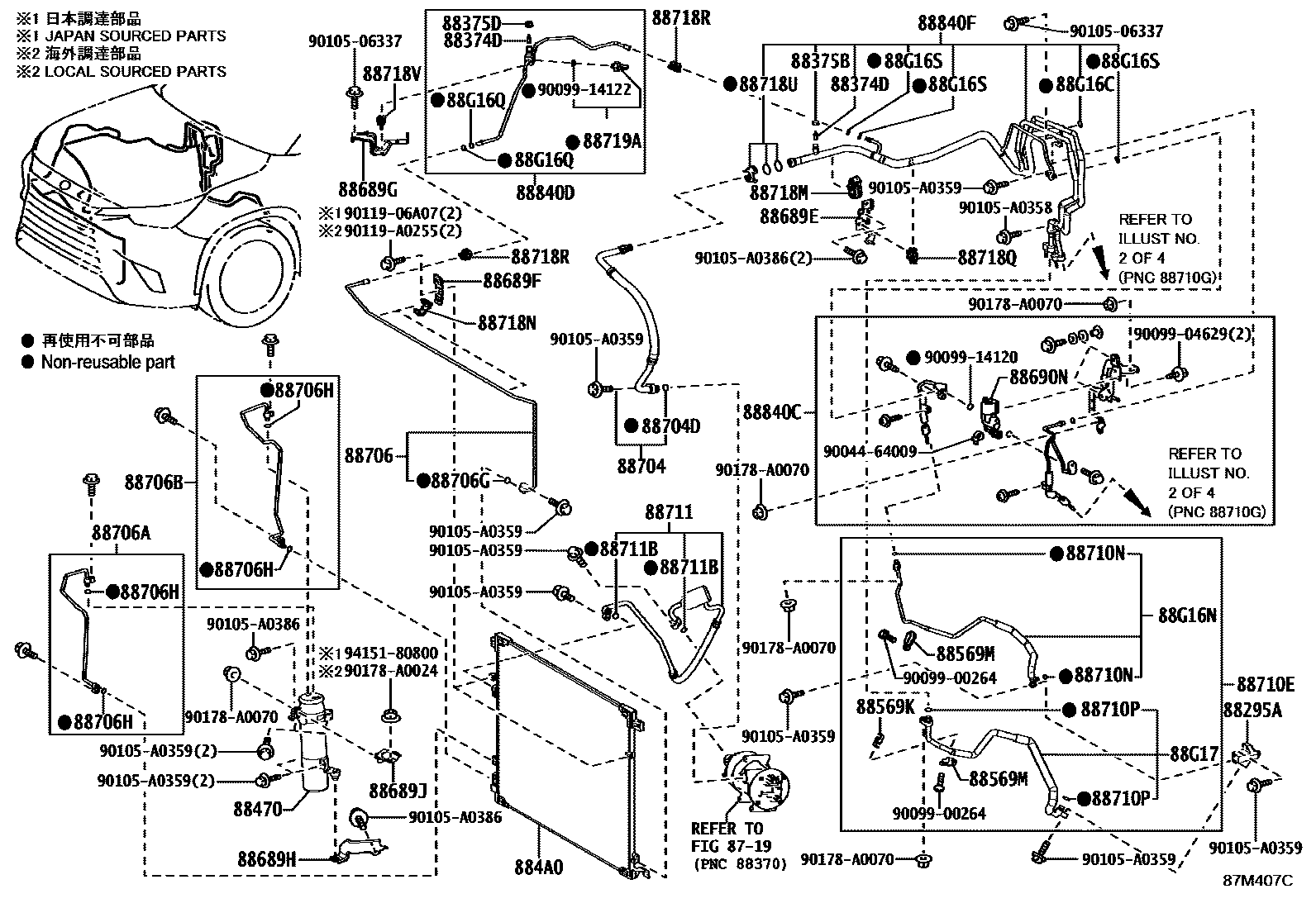

HEATING & AIR CONDITIONING - COOLER PIPING
8719
88295ATUBE, VALVE TO CONNECTOR
88374DVALVE, SERVICE NO.3
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88470RECEIVER & DRYER ASSY, COOLER
884A0CONDENSER ASSY, COOLER
88569KCLAMP, COOLER, NO.2
88569MCLAMP, PIPING, NO.1
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88689HBRACKET, COOLER, NO.4
88689JBRACKET, COOLER, NO.5
88690NVALVE ASSY, MAGNET, NO.2
88704HOSE SUB-ASSY, SUCTION
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=17.2,OD=22.0
88706PIPE SUB-ASSY, LIQUID
88706ATUBE SUB-ASSY, LIQUID, A
88706BTUBE SUB-ASSY, LIQUID, B
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88706HRING, O, NO.2(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=10.8,OD=15.6
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
ID=10.8,OD=15.6
88718QCLAMP, PIPING
88718RCLAMP, PIPING
88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)
88718VCLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88840CACCESSORY ASSY, AIR CONDITIONER, NO.1
88840DACCESSORY ASSY, AIR CONDITIONER, NO.2
88840FACCESSORY ASSY, AIR CONDITIONER, NO.4
88G16CRING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88G16NTUBE, LIQUID, NO.2
88G16QRING, O, NO.1(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88G16SRING, O, NO.3(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88G17TUBE, SUCTION, NO.3
9004464009
main90044-64009
9009900264
main90099-00264
9009904629
main90099-04629
9009914120
main90099-14120
9009914122
main90099-14122
9010506337
main90105-06337
90105A0358
main90105-A0358
90105A0359
main90105-A0359
90105A0386
main90105-A0386
9011906A07
main90119-06A07
90119A0255
main90119-A0255
90178A0024
main90178-A0024
90178A0070
main90178-A0070
9415180800
main94151-80800
57 parts on this diagram · 12 diagrams in section
