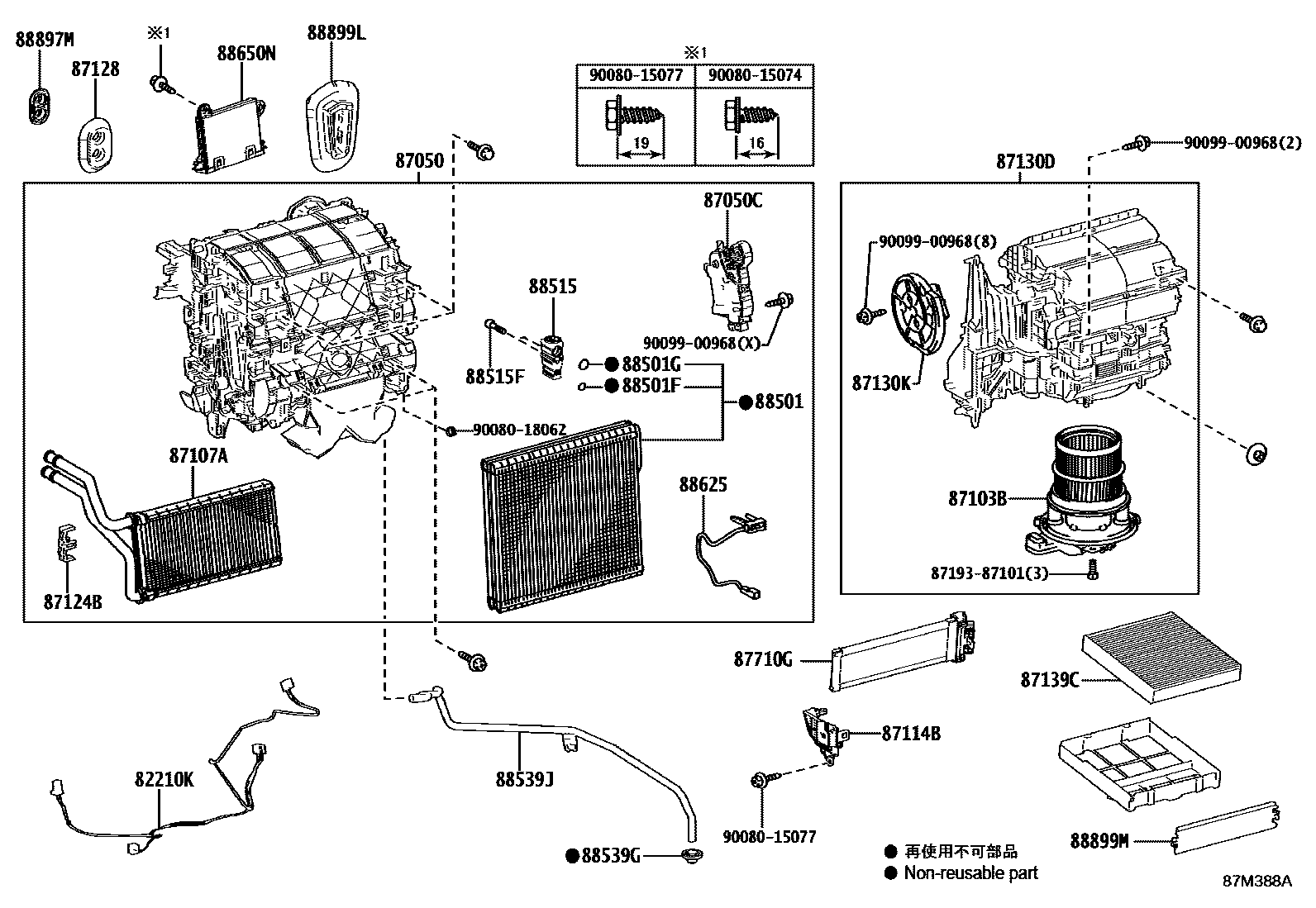

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0R040iTAUA15..S202309

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0E590iTAUA1#..G,M,N202309

main87050-0E600iGYU15,TAUH15202309

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06420iTAUH15;GYU15,TAUA1#..G,M,N202309

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309-202412

main87103-0E150iGYU15,TAUA1#,TAUH15202412

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06100iTAUH15;GYU15,TAUA1#..G,M,N202309

87114BCOVER, HEATER

main87114-06090iTAUA1#,TAUH15202309

main87114-0E070iGYU15202312

87124BCLAMP, HEATER

main87124-07030iTAUH15;GYU15,TAUA1#..G,M,N202309

87128GROMMET, HEATER

main87128-06010iTAUH15;GYU15,TAUA1#..G,M,N202309

87130DBLOWER ASSY

main87130-06410iTAUH15;GYU15,TAUA1#..G,M,N202309-202412

main87130-06411iGYU15,TAUA1#,TAUH15202412

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0E130iTAUH15;GYU15,TAUA1#..G,M,N202309

(L)

main87106-58050iTAUH15;GYU15,TAUA1#..G,M,N202309-202412

(J)

87139CFILTER, CLEAN AIR

main87139-0E040iTAUA15..S202309

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-58010iGYU15202312

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0E190iGYU15,TAUH15202309

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90069-08007iTAUA1#..G,M,N202309-202412

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90069-08009iGYU15,TAUH15202309-202412

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0E160iTAUH15;GYU15,TAUA1#..G,M,N202309

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iTAUH15;GYU15,TAUA1#..G,M,N202309

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06020iTAUH15;GYU15,TAUA1#..G,M,N202309

88539JHOSE, DRAIN COOLER

main88539-0E190iTAUH15;GYU15,TAUA1#..G,M,N202309

88625THERMISTOR, COOLER, NO.1

main88620-0E050iGYU15,TAUH15202309

main88620-0R010iTAUA1#..G,M,N202309

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-0E090iTAUH15;TAUA1#..G,M202309-202411

main886H0-0E091iTAUA1#,TAUH15..G,M,S202412

main886H0-0E100iTAUA1#..N202309-202411

sub886H0-0E101

main886H0-0E101iTAUA1#..N202412

main886H0-48140iGYU15202312-202411

main886H0-48141iGYU15202412

88897MGROMMET (FOR HEATER PIPE)

main87128-28010iTAUH15;GYU15,TAUA1#..G,M,N202309

88899LPARTS, COOLING UNIT

main88899-06280iTAUH15;GYU15,TAUA1#..G,M,N202309

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06310iTAUH15;GYU15,TAUA1#..G,M,N202309

8719387101

main87193-87101

9008015074

main90080-15074

9008015077

main90080-15077

9008018062

main90080-18062

9009900968

main90099-00968

29 parts on this diagram · 3 diagrams in section
