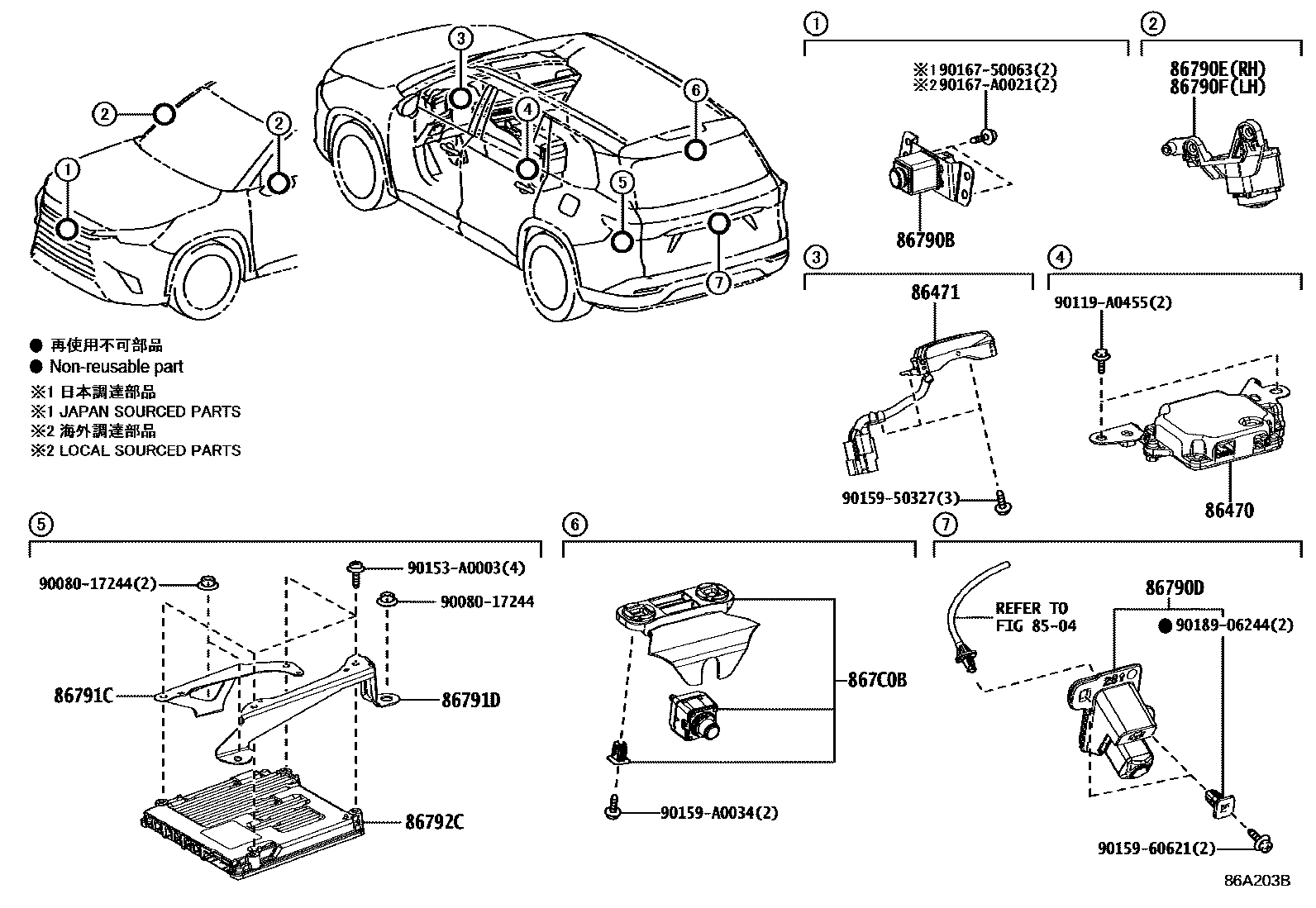

CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
main86470-48020
86471CAMERA, DRIVER MONITOR
main86471-48010
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
sub867B0-0E261
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
867C0BCAMERA ASSY, INNER MIRROR, RR
9008017244
main90080-17244
90119A0455
main90119-A0455
90153A0003
main90153-A0003
9015950327
main90159-50327
9015960621
main90159-60621
90159A0034
main90159-A0034
9016750063
main90167-50063
90167A0021
main90167-A0021
9018906244
main90189-06244
20 parts on this diagram · 1 diagram in section
