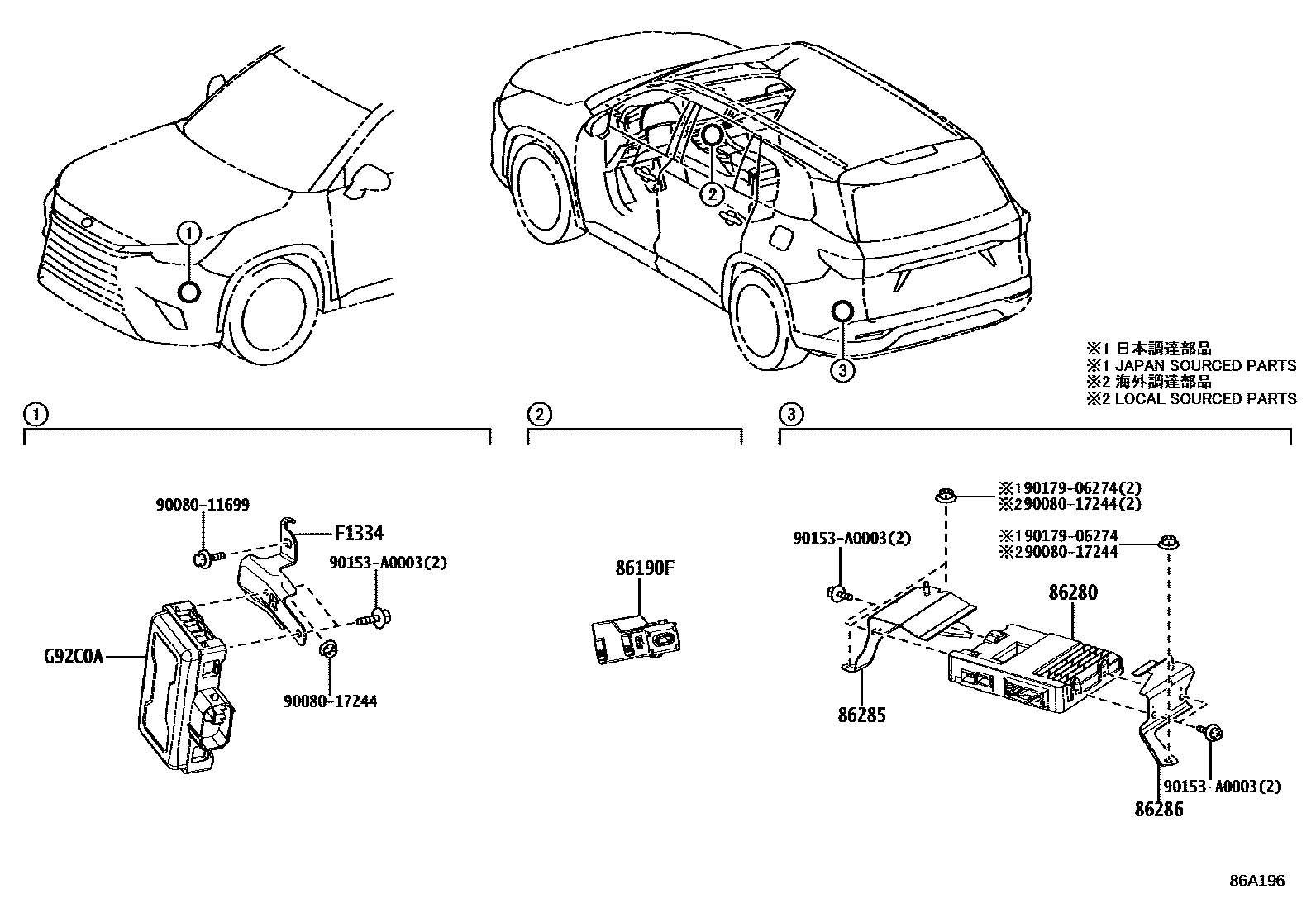

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86190FADAPTER ASSY, STEREO JACK

main86190-48130iTAUH15;GYU15,TAUA1#..G,M,N202309

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-48520iTAUH15;GYU15,TAUA1#..G,M,N202309

86285BRACKET, AMPLIFIER, NO.1

main86285-0E170iTAUH15;GYU15,TAUA1#..G,M,N202309

86286BRACKET, AMPLIFIER, NO.2

main86286-0E160iTAUH15;GYU15,TAUA1#..G,M,N202309

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF13340E080iTAUA1#..G,M,N202309

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iTAUA1#..G,M,N202309

9008011699

main90080-11699

9008017244

main90080-17244

90153A0003

main90153-A0003

9017906274

main90179-06274

10 parts on this diagram · 2 diagrams in section
