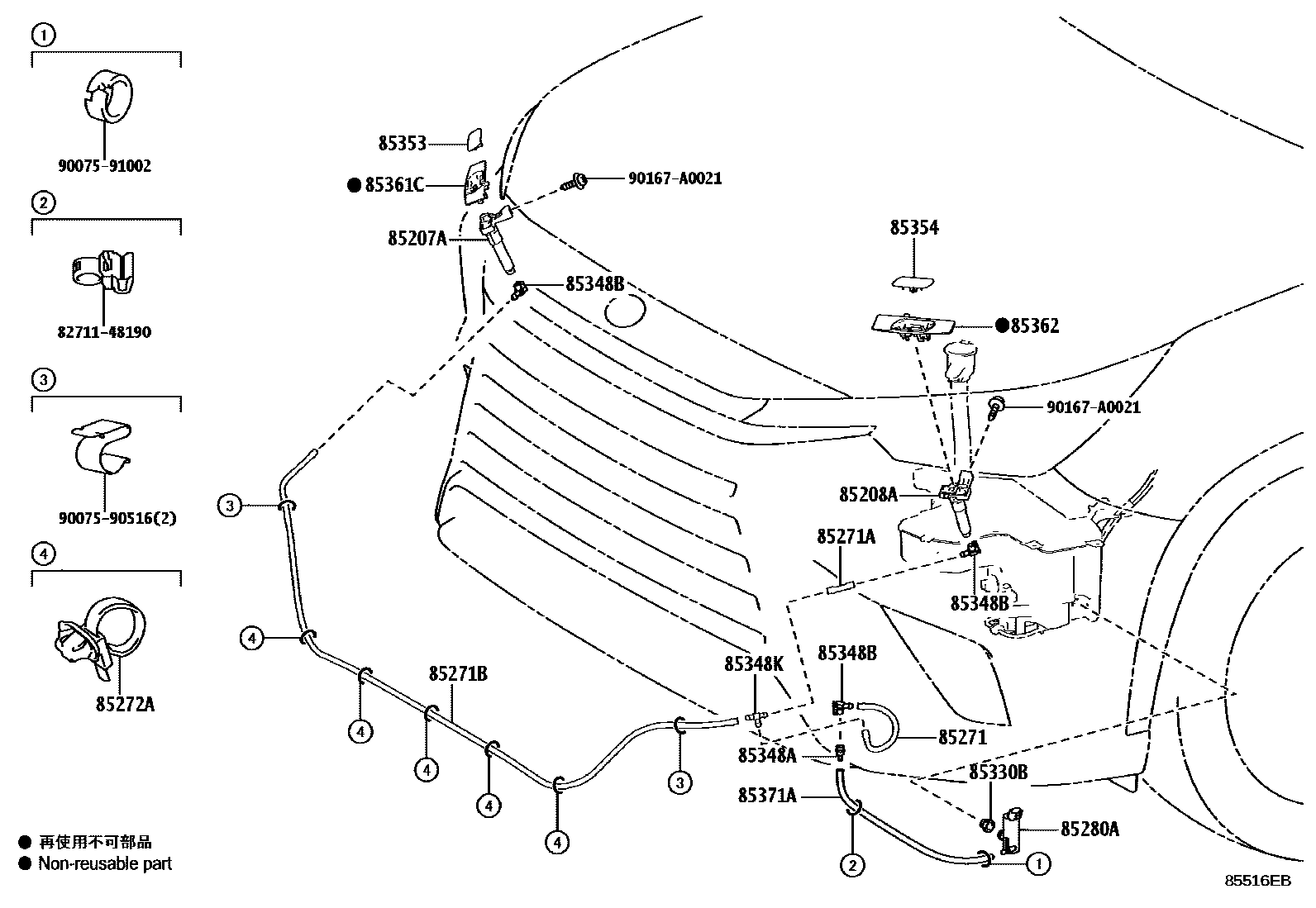

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85272ACLAMP, HEADLAMP CLEANER, NO.1
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85353COVER, HEADLAMP WASHER, RH
main85353-48904
85354COVER, HEADLAMP WASHER, LH
main85354-48904
85361CBRACKET, WASHER
85362BRACKET, WASHER, NO.2
main85362-0E040
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
8271148190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48190
9007590516
main90075-90516
9007591002
main90075-91002
90167A0021
main90167-A0021
20 parts on this diagram · 1 diagram in section
