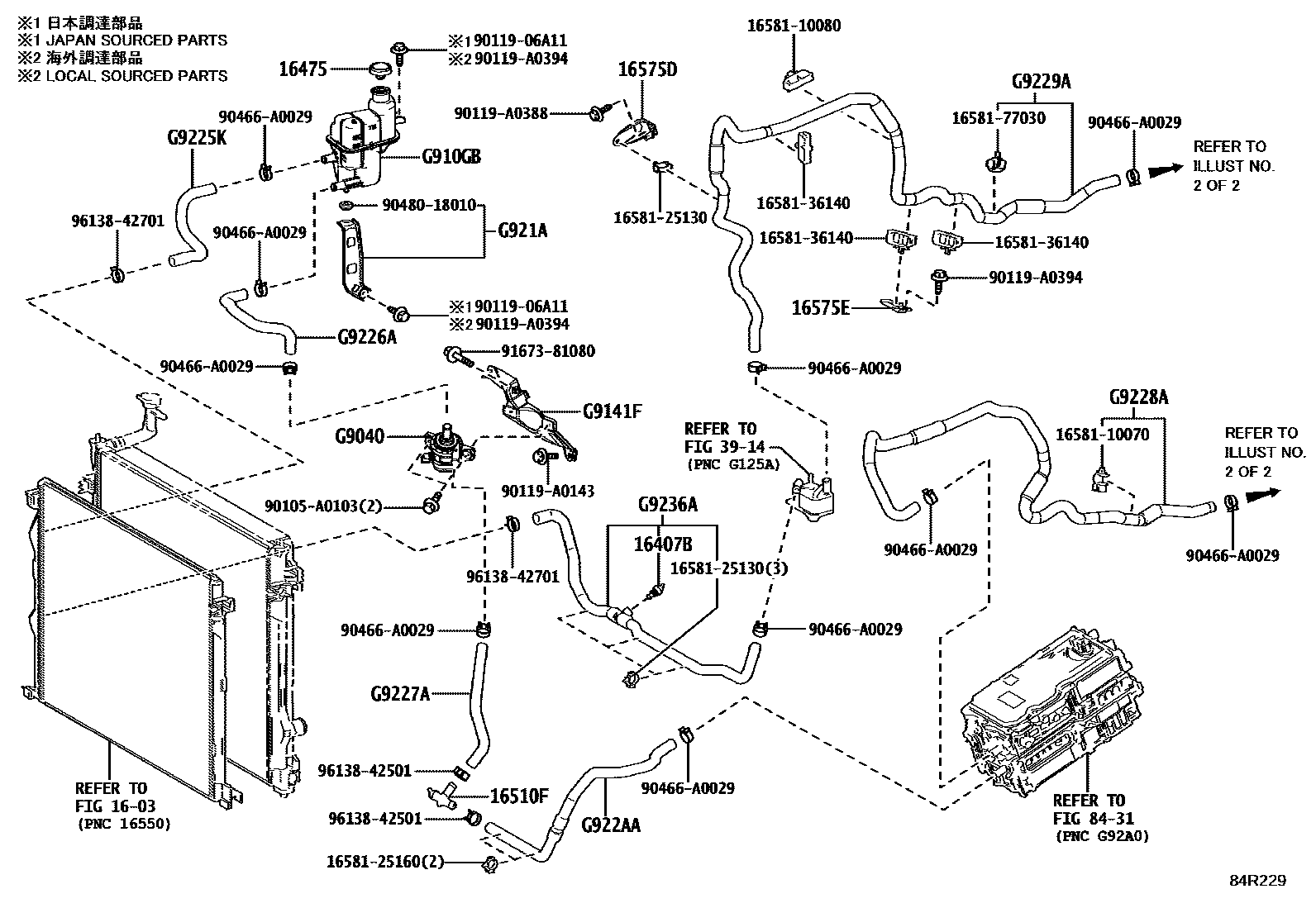

INVERTER COOLING

0001 1 0002 1 0003 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iT24,2GR..GYU15,TAUH15202309

16475CAP, RESERVE TANK

main16475-28140i2GR..GYU15202312

16510FCOCK ASSY, DRAIN

main90910-09134i2GR..GYU15202312

16575DBRACKET, WATER HOSE CLAMP, NO.1

main82715-40290i2GR..GYU15202312

16575EBRACKET, WATER HOSE CLAMP, NO.2

main16575-31050i2GR..GYU15202312

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904040010iGYU15202312

mainG904048030iTAUH15202309

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0E020iGYU15202312

G9141FBRACKET, HV WATER PUMP

mainG914140020iGYU15202312

mainG914148040iTAUH15202309

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H240010iGYU15202312

G9225KHOSE, INVERTER COOLING, NO.1

mainG922540020iGYU15202312

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E070iTAUH15202309

mainG922640020iGYU15202312

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E060iTAUH15202309

mainG922740020iGYU15202312

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E060iTAUH15202309

mainG922840020iGYU15202312

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E060iTAUH15202309

mainG922940020iGYU15202312

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A40020iGYU15202312

G9236AHOSE, INVERTER COOLING, NO.6

mainG922940030iGYU15202312

1658110070CLAMP, HOSE(FOR WATER HOSE)

main16581-10070

1658110080CLAMP, HOSE(FOR WATER HOSE)

main16581-10080

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030

90105A0103

main90105-A0103

9011906A11

main90119-06A11

90119A0143

main90119-A0143

90119A0388

main90119-A0388

90119A0394

main90119-A0394

90466A0029

main90466-A0029

9048018010

main90480-18010

9167381080

main91673-81080

9613842501

main96138-42501

9613842701

main96138-42701

35 parts on this diagram · 3 diagrams in section
