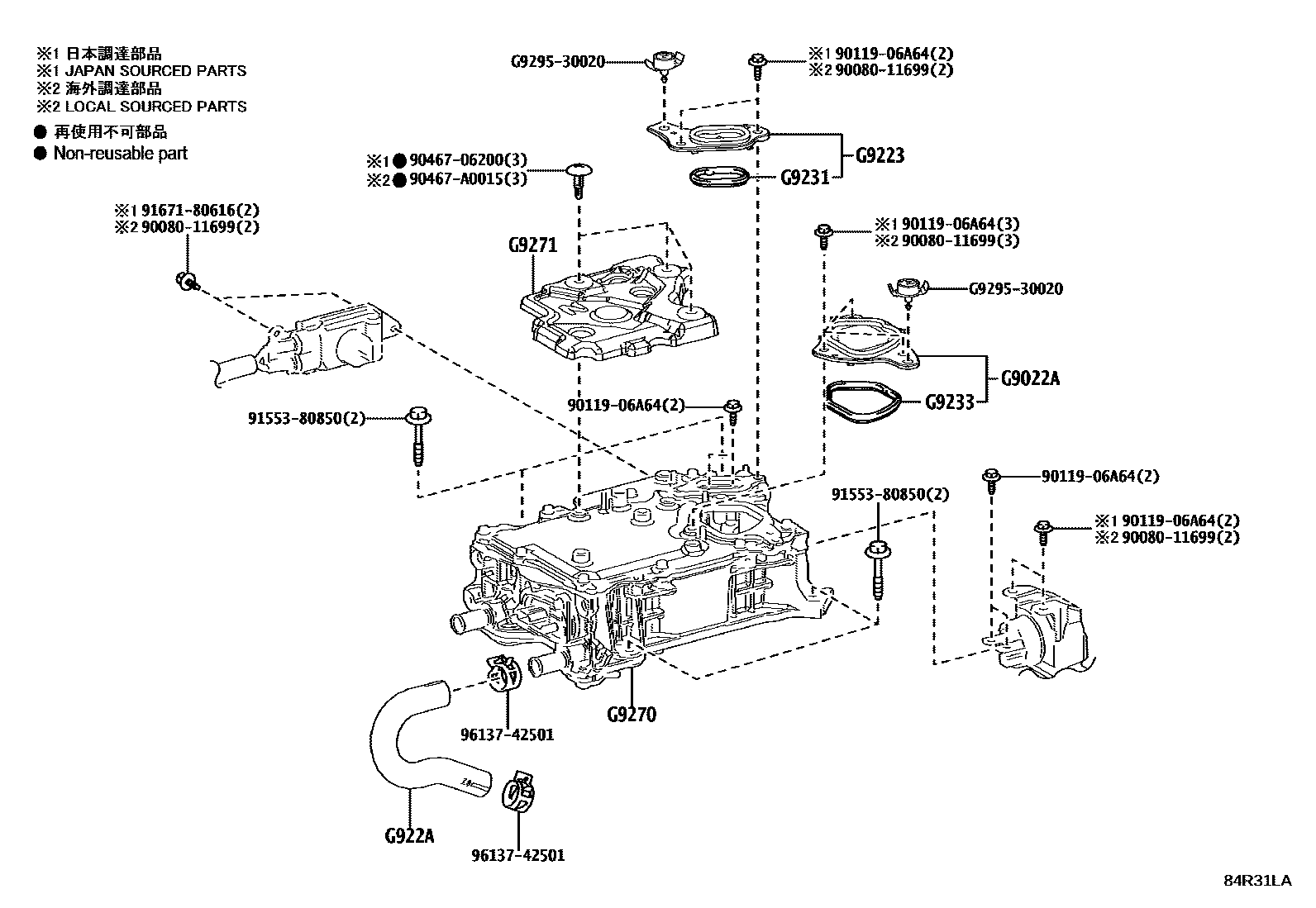

HEV INVERTER

0001 1 0002 1 0003 1 0004 1 0005 1

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iGYU15202312

mainG920348030iTAUH15202309

G9223COVER, INVERTER TERMINAL

mainG922348060iTAUH15202309

G922AHOSE, INVERTER COOLING INLET, NO.1

mainG91730E010iTAUH15202309

(L)

mainG917348010iTAUH15202309

(J)

G9231GASKET, INVERTER COVER

mainG923148040iTAUH15202309

G9233GASKET, INVERTER TERMINAL

mainG923348010iTAUH15202309

G9270CONVERTER ASSY, EV

mainG927048130iTAUH15202309

G9271COVER, CONVERTER

mainG927148030iTAUH15202309

9008011699

main90080-11699

9011906A64

main90119-06A64

9046706200

main90467-06200

90467A0015

main90467-A0015

9155380850

main91553-80850

9167180616

main91671-80616

9613742501

main96137-42501

G929530020BRACKET, EV BATTERY WATER TANK

mainG9295-30020

15 parts on this diagram · 5 diagrams in section
