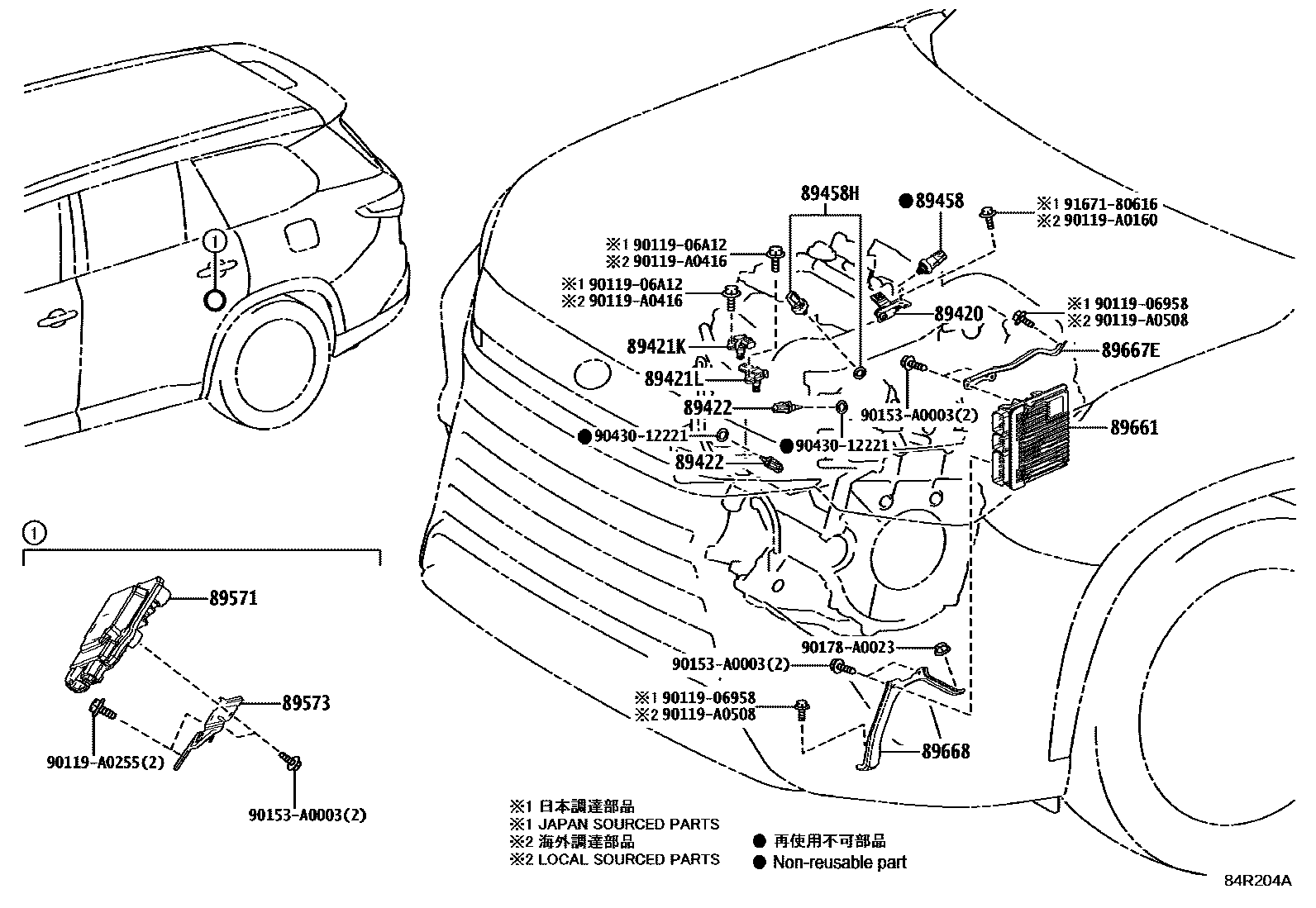

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89420SENSOR ASSY, VACUUM

main89420-48030iTAUH15202309

NO.2

main89420-48040iTAUH15202309

NO.1

main89420-78010iTAUA1#..G,M,N202309

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGYU15202312

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78040iTAUH15;TAUA1#..G,M,N202309

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78040iTAUA15..S202309

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTAUH15;TAUA1#..G,M,N202309

89458SENSOR, FUEL PRESSURE

main89458-78030iTAUH15;TAUA1#..G,M,N202309

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06022iTAUH15;TAUA1#..G,M,N202309

(L)

main89458-33042iTAUA15..S202309

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-08010iTAUA15..S202309

(L)

main89571-0R010iGYU15202312

main89571-58020iTAUH15;TAUA1#..G,M,N202309

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

89661COMPUTER, ENGINE CONTROL

main89661-0EL70iTAUA1#..G,M,N202309-202412

DENSO,*614

main89661-0EL80iTAUH15202309

DENSO,*614

main89661-0EP30iGYU15202312-202406

DENSO,*614

main89661-0EP31iGYU15202407-202509

DENSO,*614

main89661-0ES30iTAUA1#202412

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0E180iTAUH15202309

main89667-0E210iTAUA1#..G,M,N202309

main89667-40040iGYU15202312

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0E230iTAUH15202309

main89668-40040iGYU15202312

main89668-F6010iTAUA1#..G,M,N202309

9011906958

main90119-06958

9011906A12

main90119-06A12

90119A0160

main90119-A0160

90119A0255

main90119-A0255

90119A0416

main90119-A0416

90119A0508

main90119-A0508

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9043012221

main90430-12221

9167180616

main91671-80616

22 parts on this diagram · 3 diagrams in section
