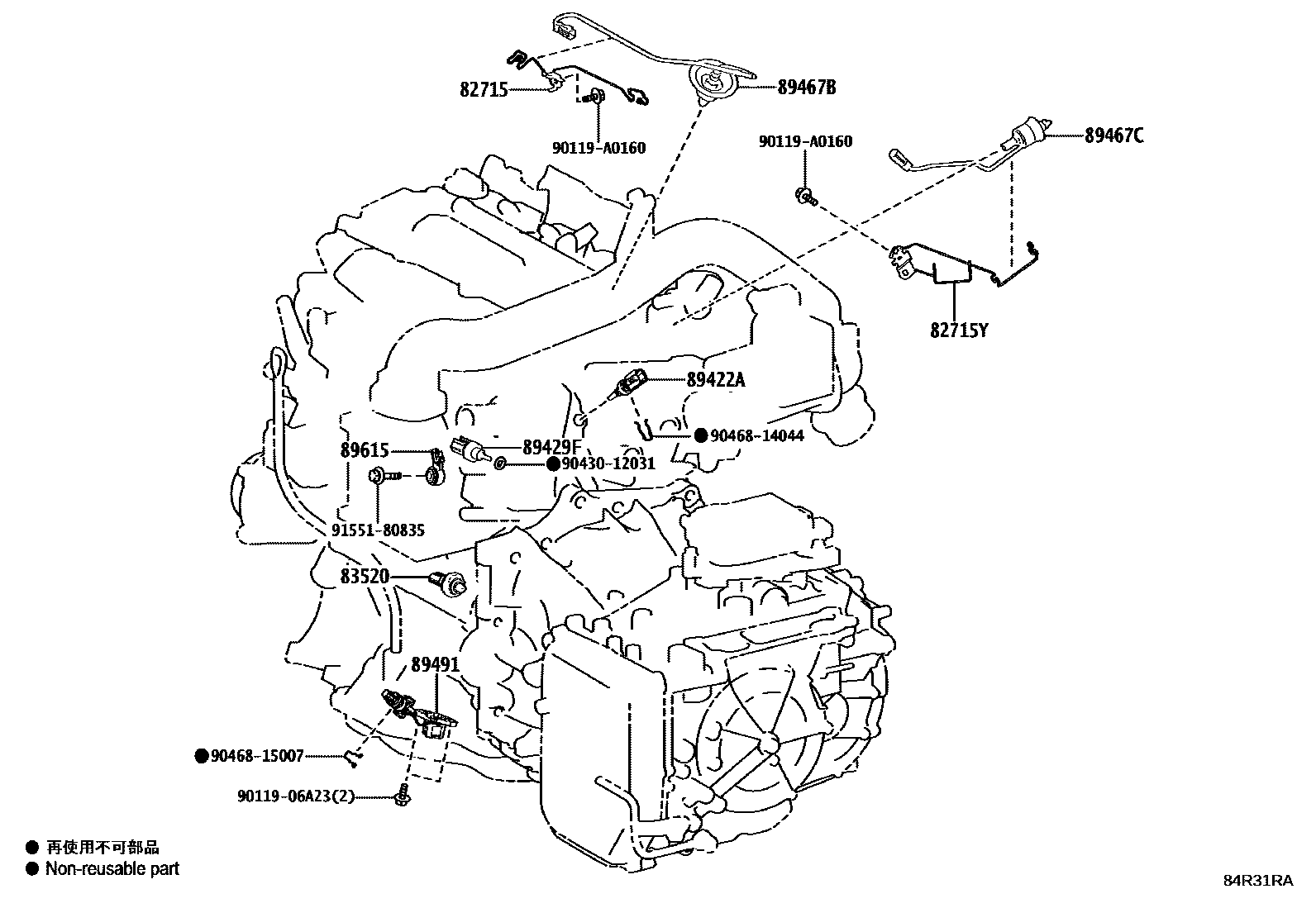

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1CONSOLE BOX 0011 1STEERING 0012 1SEAT 0013 1DOOR & ROOF 0014 1FLOOR & BACK DOOR 1/2 0015 1FLOOR & BACK DOOR 2/2 0016 1FLOOR RELAY BLOCK 0017 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main8946A-48110iTAUH15;TAUA1#..G,M,N202309

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82729-20040iGYU15202312

main8946A-78030iTAUH15;TAUA1#..G,M,N202309

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070iTAUA15..S202309

89422ASENSOR, WATER TEMPERATURE

main89422-33040iTAUH15;TAUA1#..G,M,N202309

main89422-47010iGYU15202312

89429FSENSOR, TEMPERATURE

main89429-12010iTAUH15;TAUA1#..G,M,N202309

89467BSENSOR, AIR FUEL RATIO

main89467-0E450iTAUH15;TAUA1#..G,M,N202309

main89467-0E480iGYU15202312

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E490iGYU15202312

main89467-F6020iTAUH15;TAUA1#..G,M,N202309

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTAUH15;TAUA1#..G,M,N202309

main89491-48041iGYU15202312

89615SENSOR, KNOCK CONTROL

main89615-20090iGYU15202312

main89615-78010iTAUA15..S202309

9011906A23

main90119-06A23

90119A0160

main90119-A0160

9043012031

main90430-12031

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

15 parts on this diagram · 17 diagrams in section
