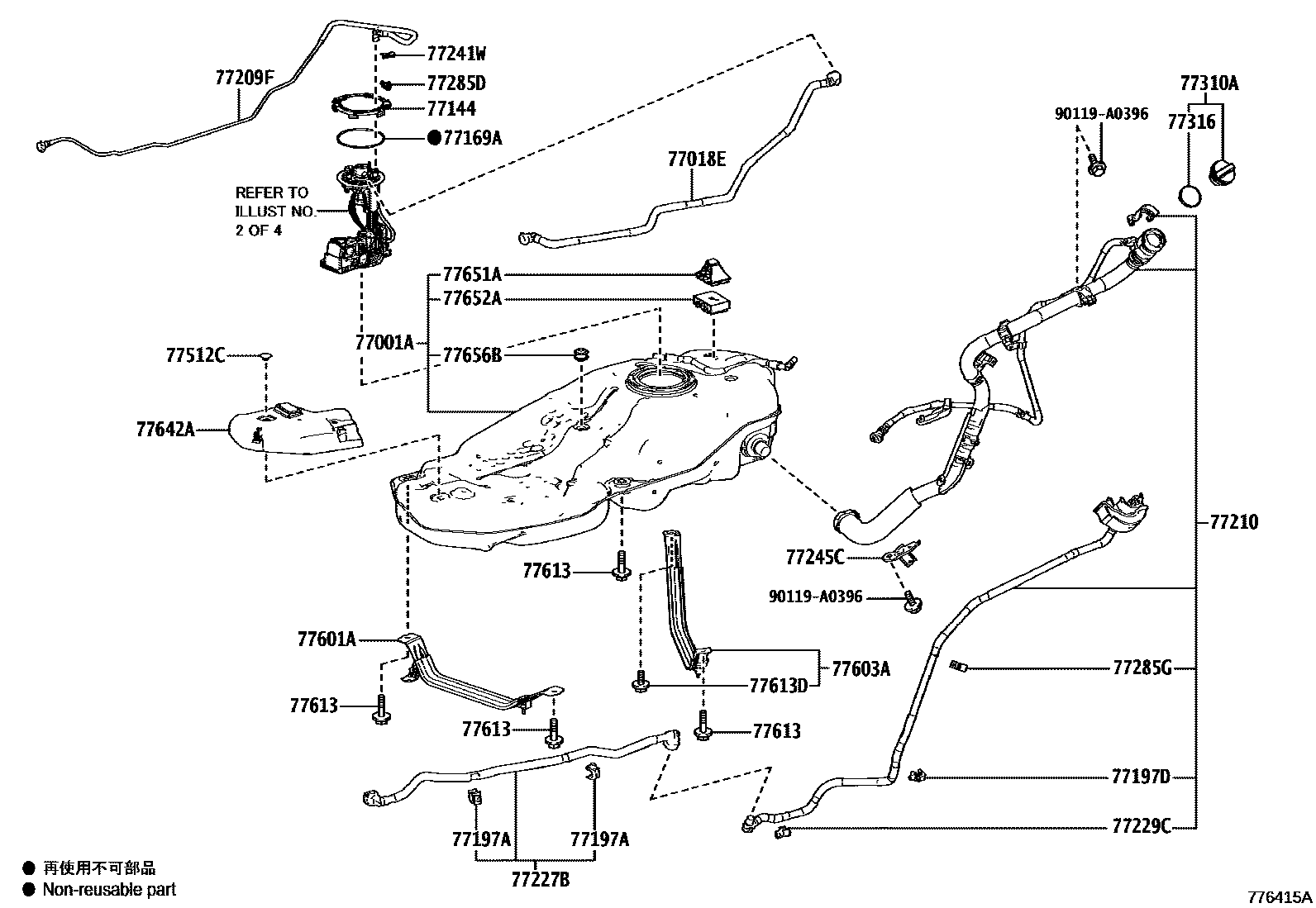

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL PUMP 0005 1FUEL PUMP 0006 1FUEL PUMP 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0E240iTAUA15..S202309

main77001-0E250iTAUH15202309-202409

main77001-0E251iTAUH15202410

main77001-40080iGYU15202312

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0E150iTAUA1#..G,M,N202309

(L)

main77018-0E160iTAUH15202401

(L)

main77018-0E160iTAUH15202309-202401

main77018-48100iTAUH15202401

(J)

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iTAUA15..S202309

(L)

main77144-30030iGYU15202312

77169AGASKET, FUEL SUCTION TUBE SET

main77169-06060iTAUA1#..G,M,N202309

(L)

main77169-47040iGYU15202312

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iTAUH15;TAUA1#..G,M,N202309

main77197-74010iGYU15202312

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33080iTAUH15;GYU15,TAUA1#..G,M,N202309

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E220iTAUA1#..G,M,N202309

(L)

main77209-0E230iTAUH15202309

main77209-40020iGYU15202312

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E310iTAUA15..S202309

main77210-0E320iTAUH15202309

main77210-48670iGYU15202312

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-0E130iTAUA1#..G,M,N202309

main77227-0E140iTAUH15202309

main77227-40040iGYU15202312

77229CCLAMP, BREATHER TUBE

main77229-0E200iTAUA15..S202309

main77229-0E210iTAUH15202309

77241WCLIP, TUBE JOINT

main77241-06020iTAUA1#..G,M,N202309

(L)

main77241-60550iGYU15202312

77245CSUPPORT, FUEL TANK

main77245-48040iTAUA1#..G,M,N202309

77285DCLAMP, FUEL TUBE, NO.1

main77285-06240iTAUA1#..G,M,N202309

(L)

main77285-0E340iTAUH15202309

77285GCLAMP, FUEL TUBE, NO.1

main77285-06510iTAUH15;TAUA1#..G,M,N202309

main77285-47120iGYU15202312

77310ACAP ASSY, FUEL TANK

main77300-06090iGYU15,TAUH15202309

main77300-07040iTAUA1#..G,M,N202309

77316GASKET, FUEL TANK CAP

main77316-06090iTAUH15;GYU15,TAUA1#..G,M,N202309

77512CBRACKET, FUEL TANK

main77512-0E080iTAUA1#..G,M,N202309

(L)

main77512-35140iGYU15202312

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0E080iTAUH15202309

main77601-0E140iTAUA1#..G,M,N202309

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-0E191iTAUA1#..G,M,N202309

main77602-0E201iTAUH15202309

77613BOLT, FUEL TANK BAND SET

main90119-A0430iTAUH15;TAUA1#..G,M,N202309

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-10992iGYU15202312-202407

main90119-A0430iGYU15202407

main90119-A0509iTAUH15;TAUA1#..G,M,N202309

77642APROTECTOR, FUEL TANK, NO.2

main77642-0E110iTAUA1#..G,M,N202309

(L)

main77642-0E120iTAUH15202309

77651ACUSHION, FUEL TANK, NO.1

main77651-06060iTAUA1#..G,M,N202309

(L)

main77651-33060iGYU15202312

77652CUSHION, FUEL TANK, NO.1

main77652-33060iGYU15202312

77652ACUSHION, FUEL TANK, NO.2

main77652-0E110iTAUA15..S202309

(L)

main77652-0E120iTAUH15202309

(L)

77656BCUSHION, FUEL TANK, NO.6

main77656-06030iTAUA1#..G,M,N202309

(L)

main77656-33010iGYU15202312

90119A0396

main90119-A0396

27 parts on this diagram · 10 diagrams in section
