SEAT BELT & CHILD RESTRAINT SEAT

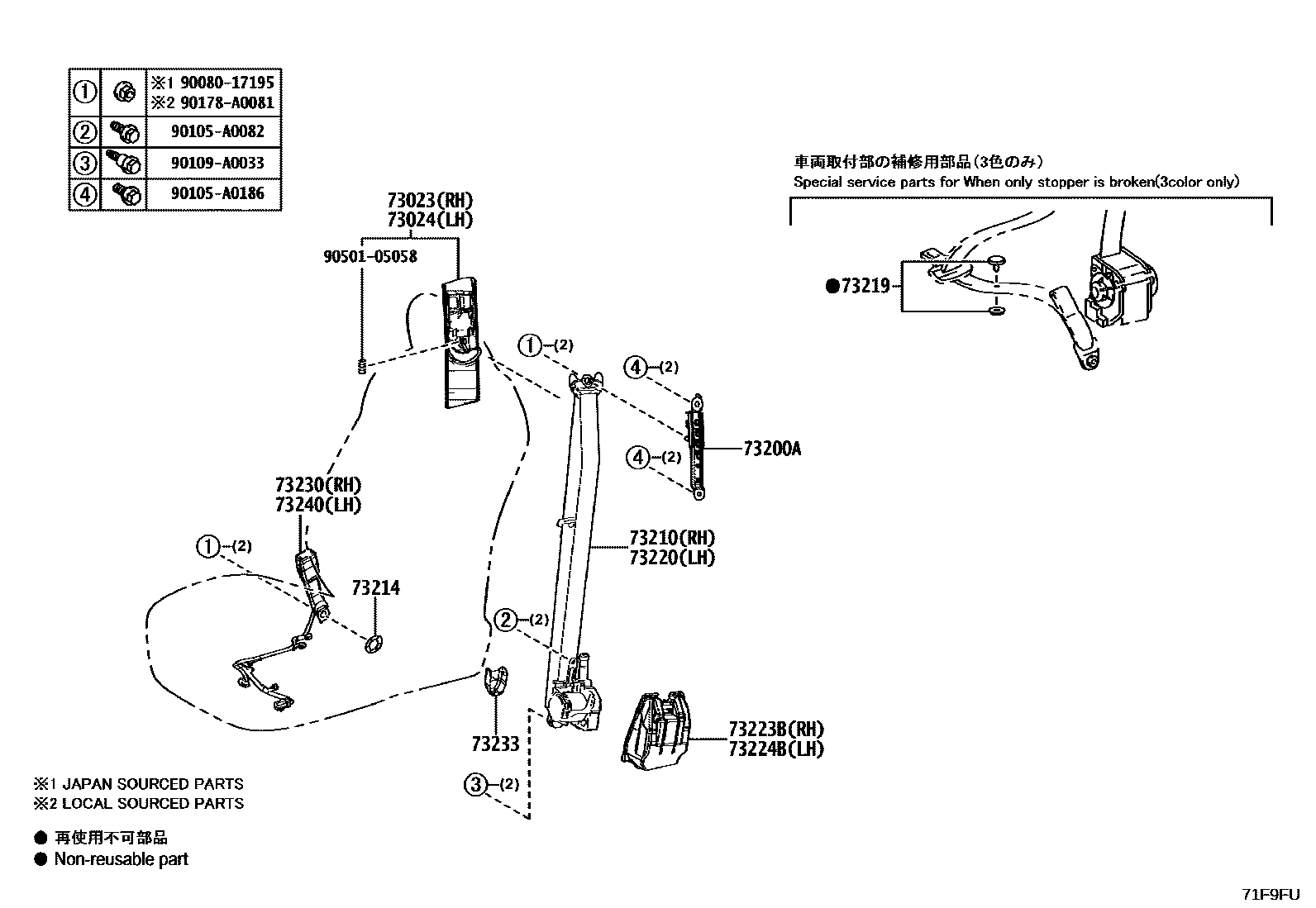

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT(BENCH SEAT) 0003 1REAR NO.1 SEAT(CAPTAIN SEAT) 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02080-C0iGYU15,TAUA1#..G,M202309

BLACK,TRIM0#,2#

main73023-02080-C0iGYU15,TAUA1#..G,M202309

BLACK,TRIM0#,2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02080-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

main73024-02080-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0R010iTAUH15;GYU15,TAUA1#..G,M,N202309

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0E150-C0iGYU15,TAUA1#..G,M202309

BLACK,TRIM0#,2#,4#

main73210-0E150-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010iTAUH15;GYU15,TAUA1#..G,M,N¥260202309

(L)

main73214-75010iTAUH15;GYU15,TAUA1#..G,M,N¥170202309

(J)

73219STOPPER, TONGUE PLATE

main73219-02010iTAUA15..S¥80202309

BLACK

main73219-02020iTAUH15;GYU15,TAUA1#..G,M,N¥80202309

GRAY

main73219-02030iTAUA15..S¥80202309

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-F6010-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

main73220-F6010-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#,4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0E100iTAUH15;GYU15,TAUA1#..G,M,N¥1,220202309

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0E080iTAUH15;GYU15,TAUA1#..G,M,N¥1,220202309

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0E510-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

main73230-0E510-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

main73233-0C010-C1iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0E500-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#

main73230-0E500-C0iTAUH15;TAUA1#..N202309

BLACK,TRIM0#,2#,4#

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0186

main90105-A0186

90109A0033

main90109-A0033

90178A0081

main90178-A0081

9050105058

main90501-05058¥80

18 parts on this diagram · 4 diagrams in section
