BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-0E040iTAUA15..S202309

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E510iTAUA15..S202309

67005BCUSHION(FOR BACK DOOR PANEL)

main68984-0E030iTAUA15..S202309

67372AWEIGHT, BACK DOOR

main67372-0E030iTAUA15..S202309

67837NSEAL, BACK DOOR DUST PROOF

main67837-0E190iTAUH15;GYU15,TAUA1#..G,M,N202404

main67837-0R040iGYU15,TAUA1#,TAUH15202309-202403

67881AWEATHERSTRIP, BACK DOOR

main67881-0E151iTAUH15;GYU15,TAUA1#..G,M,N202309

68131GLASS, BACK DOOR

main68105-0E290iTAUH15;GYU15,TAUA1#..G,M,N202309

68294ADAM, BACK DOOR GLASS ADHESIVE

main64813-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iTAUH15;GYU15,TAUA1#..G,M,N202309

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

9008011699

main90080-11699

9095001948

main90950-01948

9095001A17

main90950-01A17

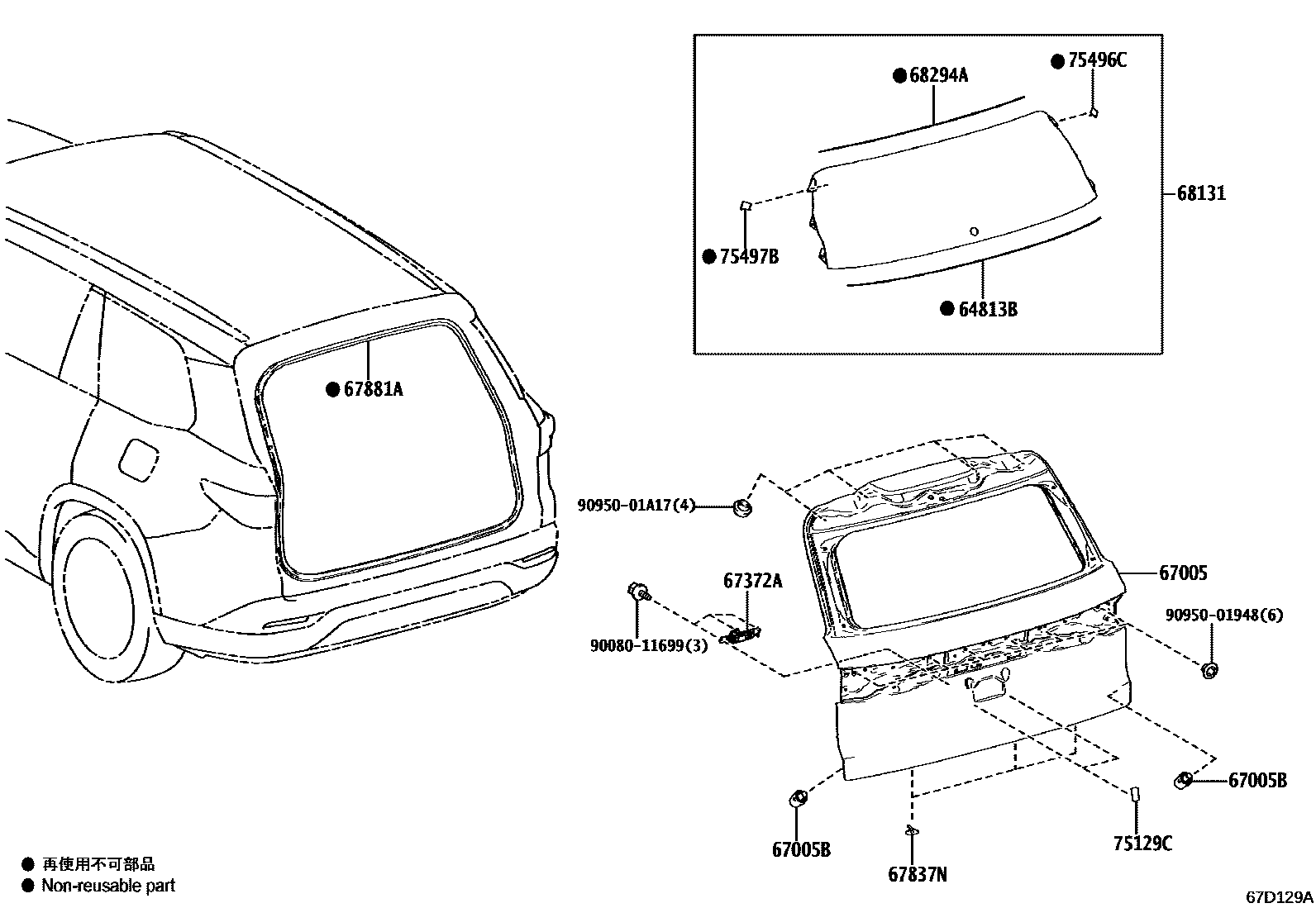

14 parts on this diagram · 2 diagrams in section
