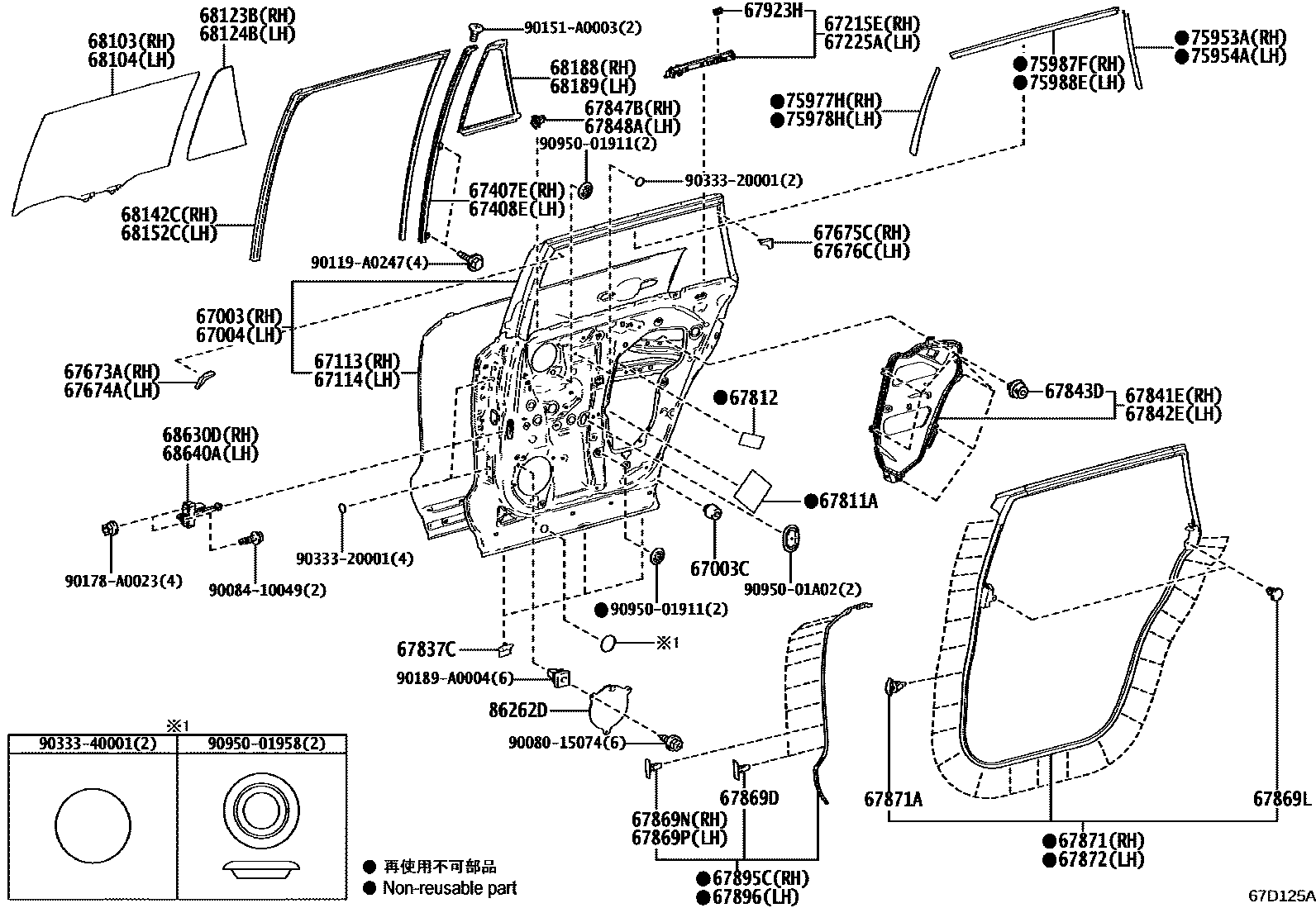

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0E280iTAUH15;GYU15,TAUA1#..G,M,N202309

67003CCUSHION, REAR DOOR PANEL

main90541-09124iTAUH15;GYU15,TAUA1#..G,M,N202309

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0E270iTAUH15;GYU15,TAUA1#..G,M,N202309

67113PANEL, REAR DOOR, OUTER RH

main67113-0E140iTAUA15..S202309

67114PANEL, REAR DOOR, OUTER LH

main67114-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

67215ESTOP, QUARTER WINDOW, UPPER RH

main67215-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

67225ASTOP, QUARTER WINDOW, UPPER LH

main67225-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0E140iTAUA15..S202309

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

67811APAD, REAR DOOR SILENCER

main67811-0E030iTAUH15;GYU15,TAUA1#..G,M,N202309

67812PAD, REAR DOOR SILENCER

main67811-0E040iTAUH15;GYU15,TAUA1#..G,M,N202309

67837CSEAL, REAR DOOR DUST PROOF

main67837-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-A0048iTAUH15;GYU15,TAUA1#..G,M,N202309

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-0E100iTAUH15;GYU15,TAUA1#..G,M,N202309

67869DCLIP, DOOR WEATHERSTRIP

main67869-78030iTAUH15;GYU15,TAUA1#..G,M,N202309

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iTAUH15;GYU15,TAUA1#..G,M,N202309

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-78010iTAUH15;GYU15,TAUA1#..G,M,N202309

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-78020iTAUH15;GYU15,TAUA1#..G,M,N202309

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iTAUH15;GYU15,TAUA1#..G,M,N202309

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-0E110iTAUH15;GYU15,TAUA1#..G,M,N202309

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-0E110iTAUH15;GYU15,TAUA1#..G,M,N202309

67923HRETAINER, DOOR CORNER SEAL

main67923-33100iTAUH15;GYU15,TAUA1#..G,M,N202309

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0E220iTAUH15;GYU15,TAUA1#..G,M,N202309

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0E220iTAUH15;GYU15,TAUA1#..G,M,N202309

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0E170iTAUH15;GYU15,TAUA1#..G,M,N202309

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0E170iTAUH15;GYU15,TAUA1#..G,M,N202309

68142CRUN, REAR DOOR GLASS, RH

main68142-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

68152CRUN, REAR DOOR GLASS, LH

main68152-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309

68630DCHECK ASSY, REAR DOOR, RH

main68630-48130iTAUH15;GYU15,TAUA1#..G,M,N202309

68640ACHECK ASSY, REAR DOOR, LH

main68640-48120iTAUH15;GYU15,TAUA1#..G,M,N202309

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-0E060iTAUH15;GYU15,TAUA1#..G,M,N202309

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-0E080iTAUH15;GYU15,TAUA1#..G,M,N202309

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-0E080iTAUH15;GYU15,TAUA1#..G,M,N202309

86262DCOVER, REAR DOOR SPEAKER

main86262-47010iTAUH15;GYU15,TAUA1#..G,M,N202309

9008015074

main90080-15074

9008410049

main90084-10049

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90178A0023

main90178-A0023

90189A0004

main90189-A0004

9033320001

main90333-20001

9033340001

main90333-40001

9095001911

main90950-01911

9095001958

main90950-01958

9095001A02

main90950-01A02

59 parts on this diagram · 2 diagrams in section
