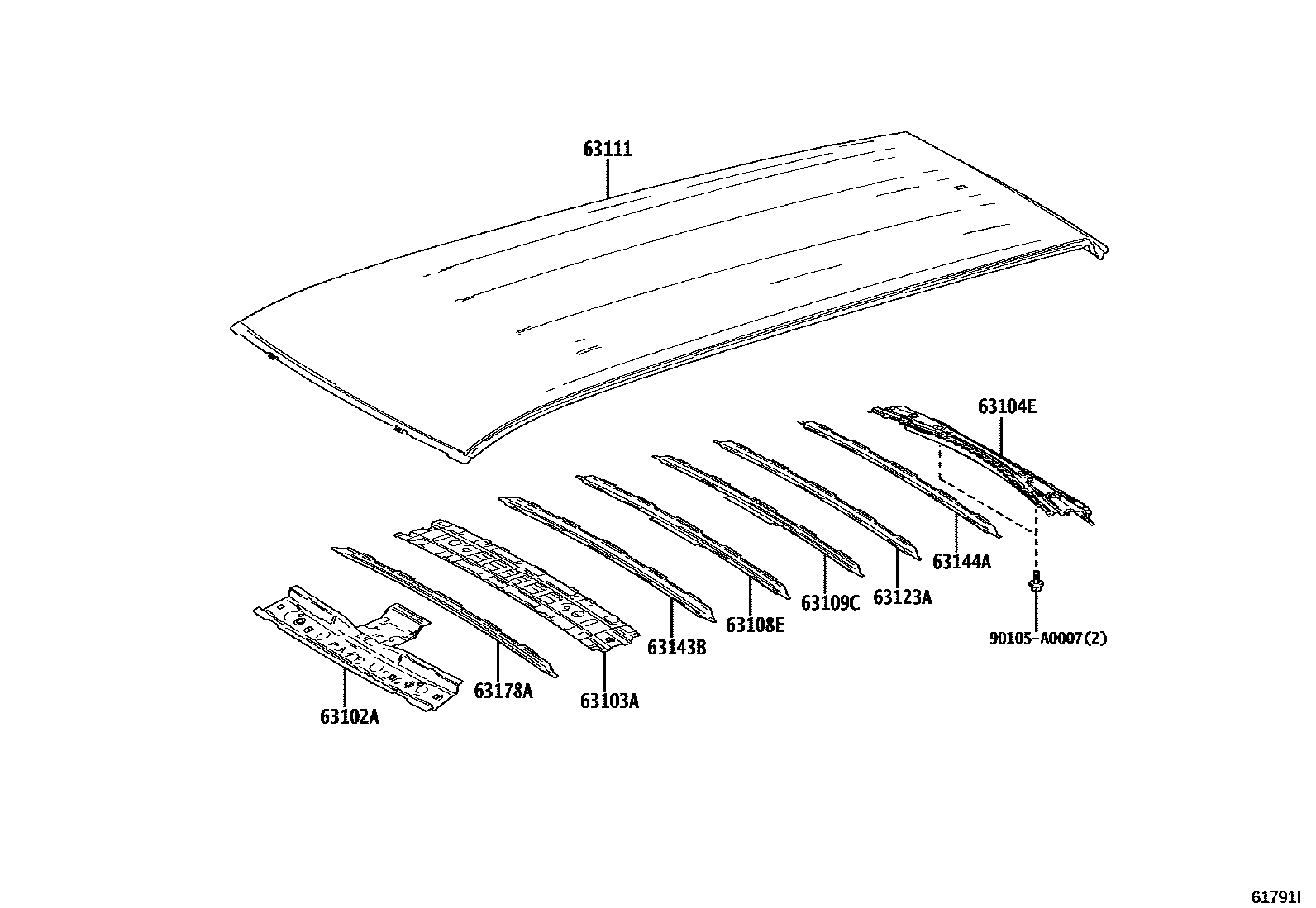

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF & DRAIN HOSE 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E920iTAUA1#..N;GYU15,TAUH15202309

main63102-0E921iTAUA1#..G,M202309

UPGRADE PACKAGE

main63102-0E921iTAUA15..S202412

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0E170iTAUA1#..N;GYU15,TAUH15202309

main63103-0E180iTAUA1#..G,M202309

UPGRADE PACKAGE

main63103-0E180iTAUA15..S202412

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0E130iTAUH15;GYU15,TAUA1#..G,M,N202309

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-0E020iTAUA1#..N;GYU15,TAUH15202309

63109CRETAINER SUB-ASSY, ROOF REINFORCEMENT

main63109-0E010iTAUA1#..N;GYU15,TAUH15202309

63111PANEL, ROOF

main63111-0E520iTAUA1#..N;GYU15,TAUH15202309

main63111-0E530iTAUA1#..G,M202309

UPGRADE PACKAGE

main63111-0E530iTAUA15..S202412

63123AREINFORCEMENT, ROOF PANEL, REAR NO.1

main63125-0E020iTAUA1#..N;GYU15,TAUH15202309

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E170iTAUA1#..N;GYU15,TAUH15202309

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-0E060iTAUA1#..N;GYU15,TAUH15202309

90105A0007

main90105-A0007

11 parts on this diagram · 4 diagrams in section
