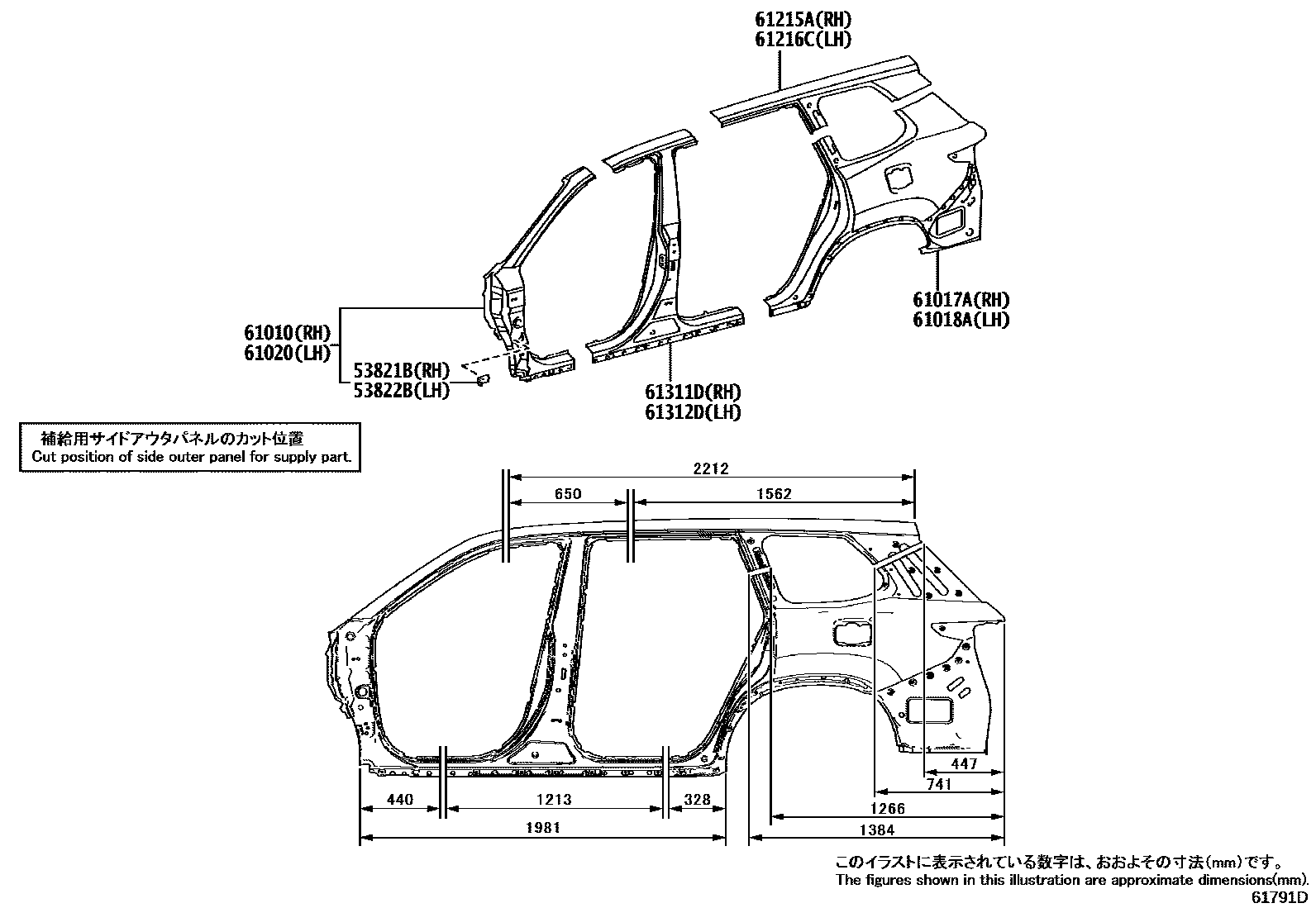

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, RH 0004 1INNER PANEL, LH 0005 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0E180iTAUA15..S202309

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0E180iTAUH15;GYU15,TAUA1#..G,M,N202309

61010MEMBER ASSY, SIDE, RH

main61010-0E050iTAUA15..S202309

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-0E100iTAUH15;TAUA1#..G,M,N202309

main61017-0E120iGYU15202312

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-0E090iTAUA15..S202309

61020MEMBER ASSY, SIDE, LH

main61020-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

61215ARAIL, ROOF SIDE, OUTER NO.3 RH

main61215-0E130iTAUH15;GYU15,TAUA1#..G,M,N202309

61216CRAIL, ROOF SIDE, OUTER NO.3 LH

main61216-0E130iTAUA15..S202309

61311DPANEL, REAR BODY, FRONT OUTSIDE RH

main61311-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

61312DPANEL, REAR BODY, FRONT OUTSIDE LH

main61312-0E140iTAUH15;GYU15,TAUA1#..G,M,N202309

10 parts on this diagram · 5 diagrams in section
