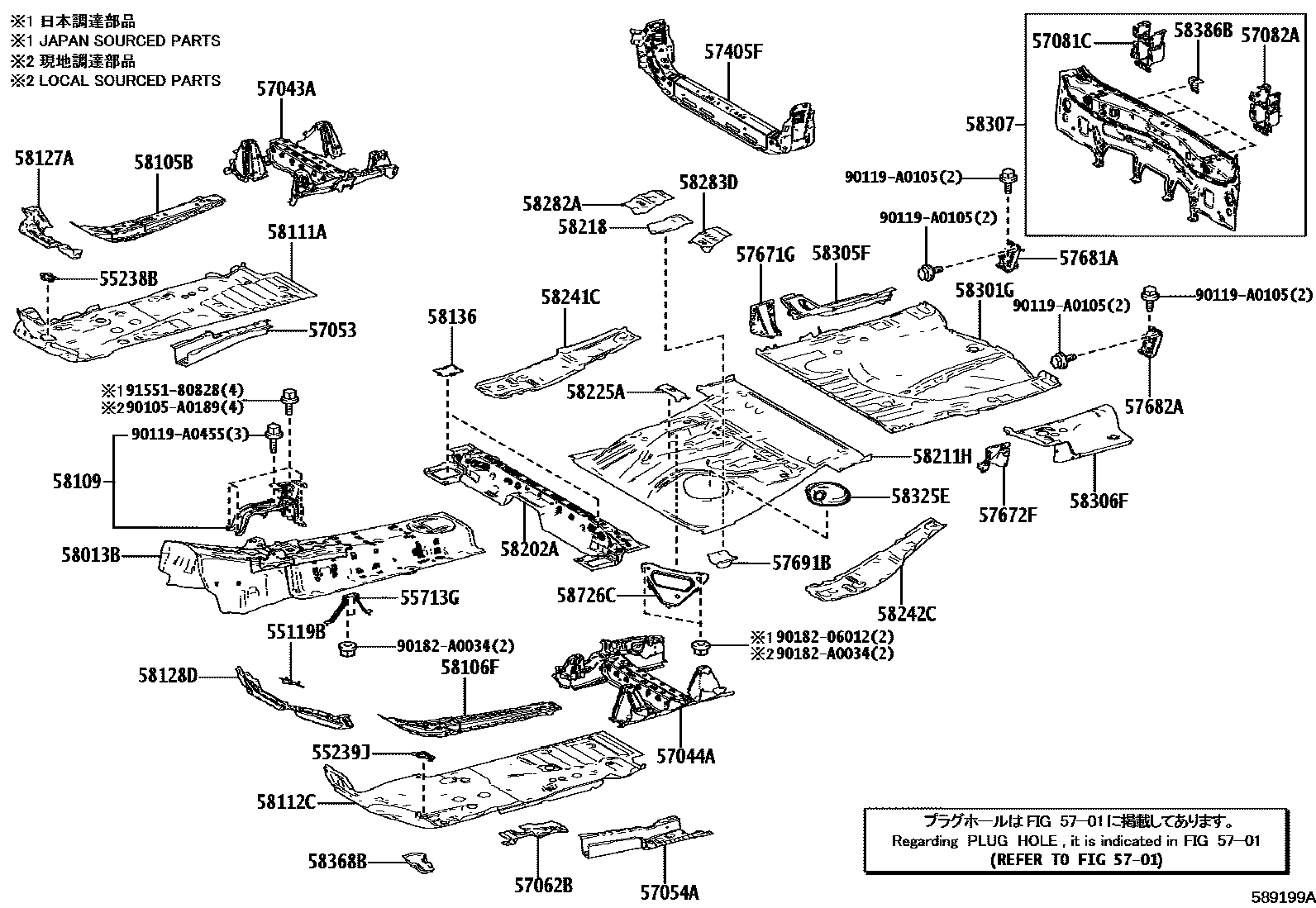

FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57082ABRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57671GMEMBER, REAR FLOOR CROSS, NO.1 RH
57672FMEMBER, REAR FLOOR CROSS, NO.1 LH
57681ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER
57682ABRACE, REAR FLOOR NO.2 CROSSMEMBER, OUTER LH
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58218PLATE, SEAT FLOOR PANEL
58225ABRACKET, CENTER MOUNTING
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58301GPAN SUB-ASSY, REAR FLOOR
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58325ECOVER, REAR FLOOR SERVICE HOLE
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
58726CSTAY, ENGINE SERVICE COVER, NO.2
90105A0189
main90105-A0189
90119A0105
main90119-A0105
90119A0455
main90119-A0455
9018206012
main90182-06012
90182A0034
main90182-A0034
9155180828
main91551-80828
49 parts on this diagram · 3 diagrams in section
