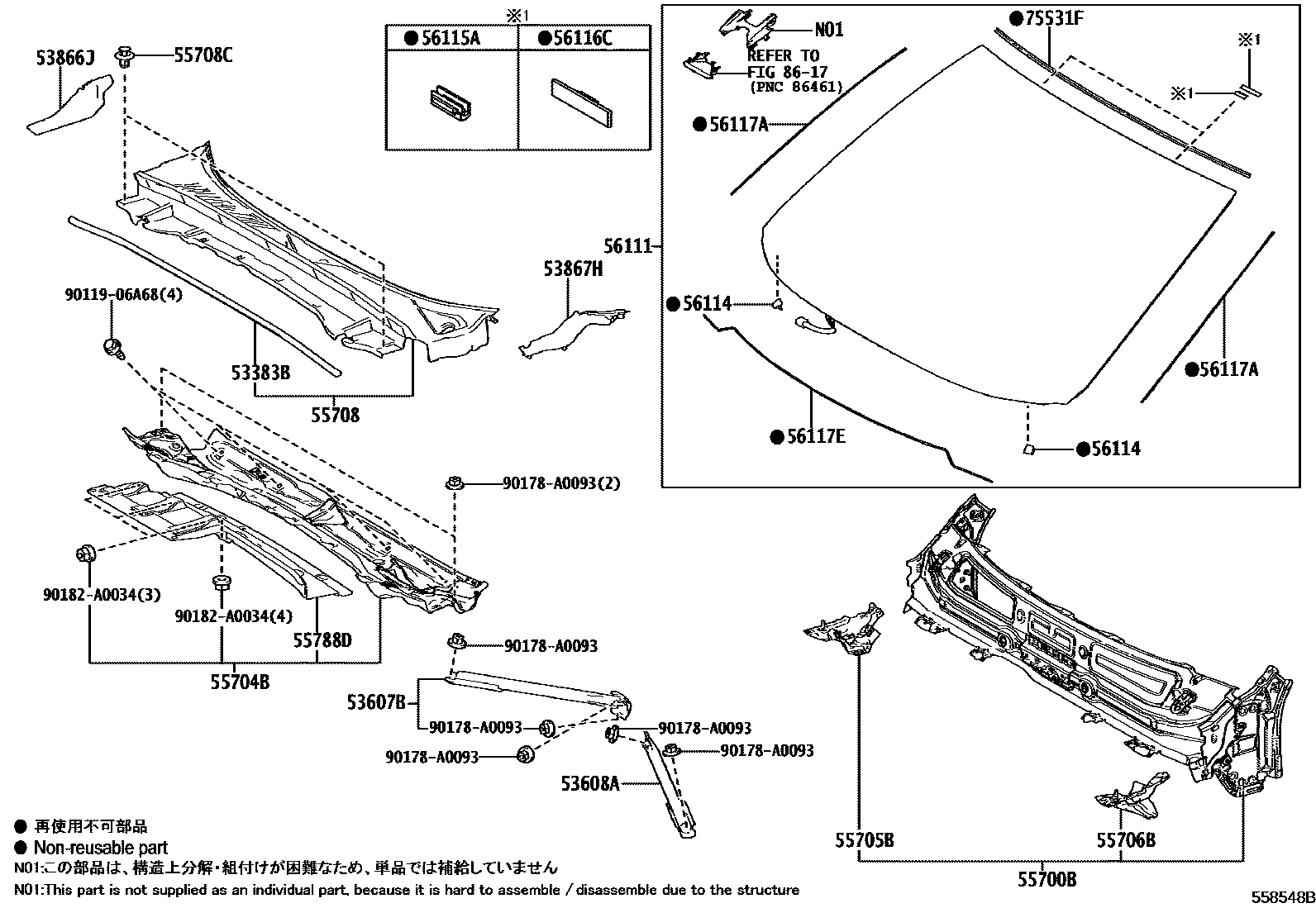

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53607BBRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, RH
53608ABRACE SUB-ASSY, FRONT SUSPENSION UPPER TO COWL, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55700BCOWL ASSY
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55788DINSULATOR, COWL TOP PANEL, NO.2
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=668
*D,L=668,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)
*D,L=668,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)&HEAD UP DISPLAY-WITH
*D,L=668,HEAD UP DISPLAY-WITH
56117EDAM, WINDOW GLASS ADHESIVE
*D,L=1537
*D,L=1537,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)
*D,L=1537,INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & W(*GDO)&HEAD UP DISPLAY-WITH
*D,L=1537,HEAD UP DISPLAY-WITH
75531FMOULDING, WINDSHIELD, OUTSIDE UPPER
8617
9011906A68
main90119-06A68
90178A0093
main90178-A0093
90182A0034
main90182-A0034
23 parts on this diagram · 2 diagrams in section
