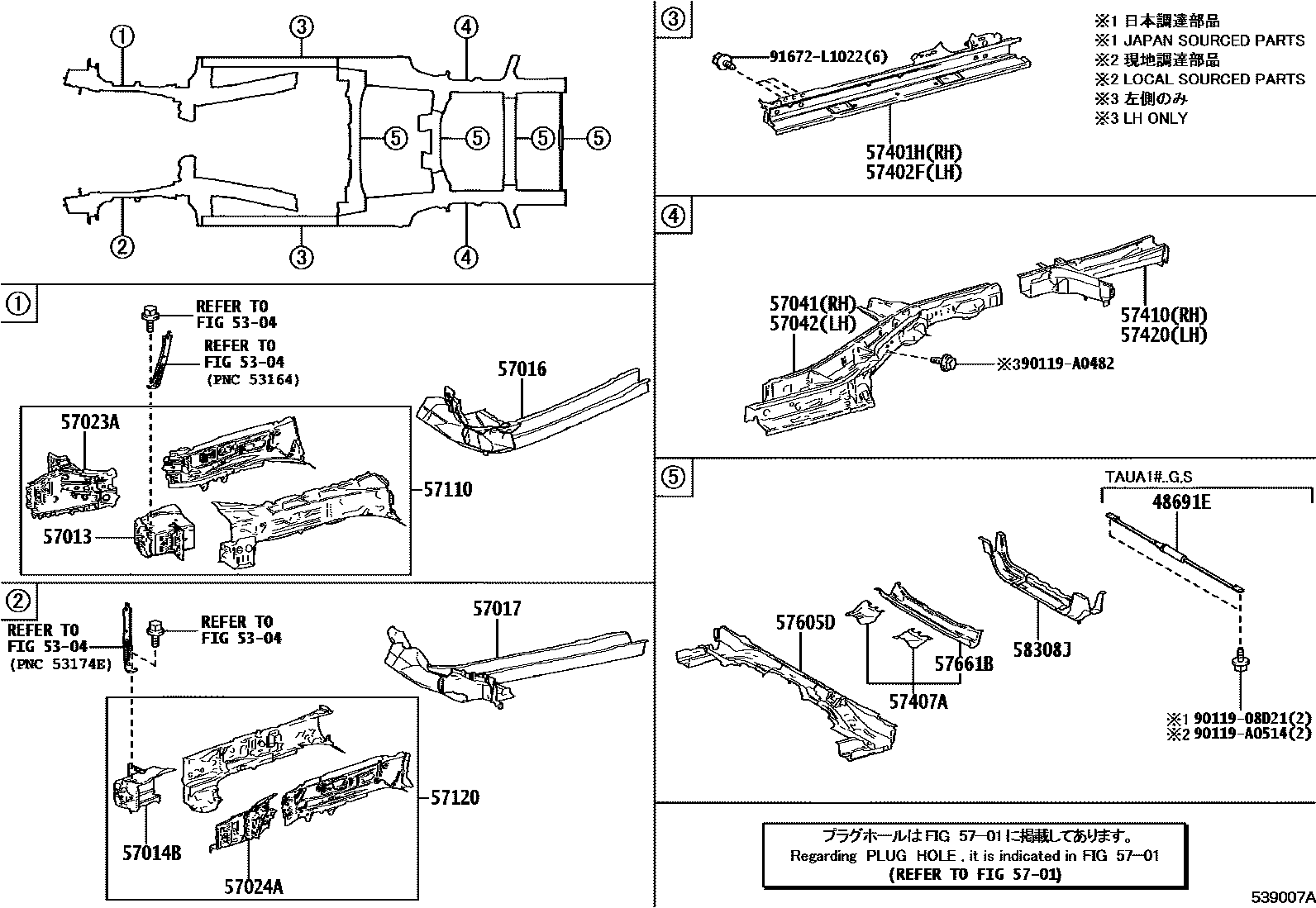

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

48691EDAMPER, SUSPENSION TOWER

main48691-48080iTAUA15..S202309

5304

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0E040iTAUH15;GYU15,TAUA1#..G,M,N202309

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0E040iTAUH15;TAUA1#..G,M,N202309

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0E090iTAUH15;GYU15,TAUA1#..G,M,N202309

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0E090iTAUA15..S202309

main57017-0E100iGYU15202312

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0E040iTAUH15;GYU15,TAUA1#..G,M,N202309

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0E040iTAUH15;TAUA1#..G,M,N202309

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-0E170iTAUH15;GYU15,TAUA1#..G,M,N202309

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-0E170iTAUH15;GYU15,TAUA1#..G,M,N202309

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0E050iTAUH15;GYU15,TAUA1#..G,M,N202309

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0E150iTAUA15..S202309-202507

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0E150iTAUH15;GYU15,TAUA1#..G,M,N202309-202507

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0E020iTAUA1#..G,M,N202309

main57407-0E040iGYU15202312

57410MEMBER ASSY, FLOOR SIDE, RH

main57410-0E021iTAUA15..S202309

57420MEMBER ASSY, FLOOR SIDE, LH

main57420-0E021iTAUA15..S202309

57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0E200iTAUA1#..G,M,N202309

main57605-0E210iTAUH15202309

main57605-0E220iGYU15202312

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-0E070iTAUH15;TAUA1#..G,M,N202309

58308JBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-0E070iTAUH15;GYU15,TAUA1#..G,M,N202309

9011908D21

main90119-08D21

90119A0482

main90119-A0482

90119A0514

main90119-A0514

91672L1022

main91672-L1022

25 parts on this diagram · 3 diagrams in section
