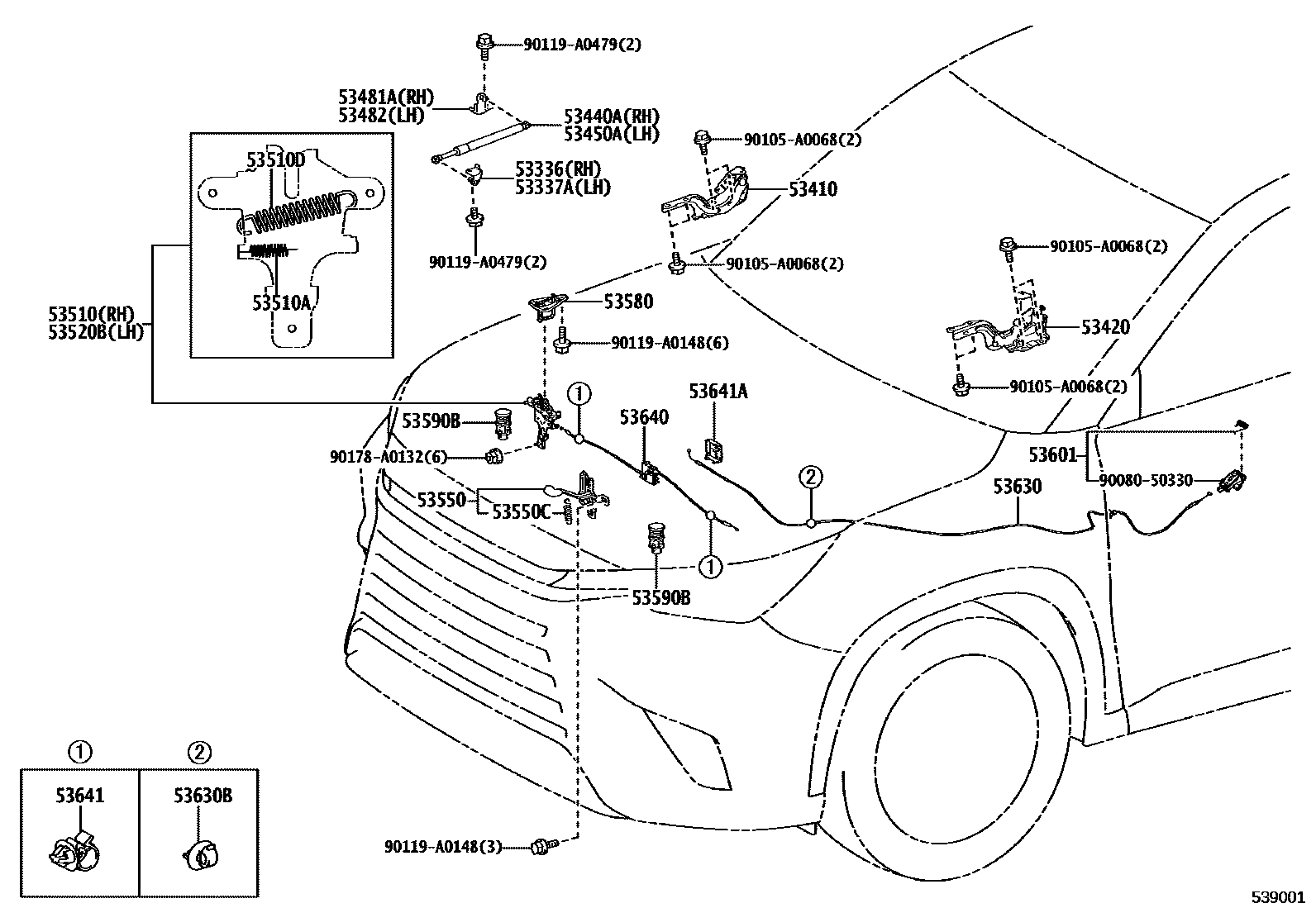

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.0,CW=14
53520BLOCK ASSY, HOOD, LH
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550CSPRING, TENSION(FOR HOOD AUXILIARY CATCH HOOK)
53580STRIKER ASSY, HOOD LOCK
53590BSPRING ASSY, HOOD
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53640JUNCTION ASSY, HOOD LOCK CONTROL
53641CLAMP, HOOD LOCK CONTROL WIRE
53641ACOVER, HOOD LOCK CONTROL
9008050330
main90080-50330
90105A0068
main90105-A0068
90119A0148
main90119-A0148
90119A0479
main90119-A0479
90178A0132
main90178-A0132
27 parts on this diagram · 1 diagram in section
