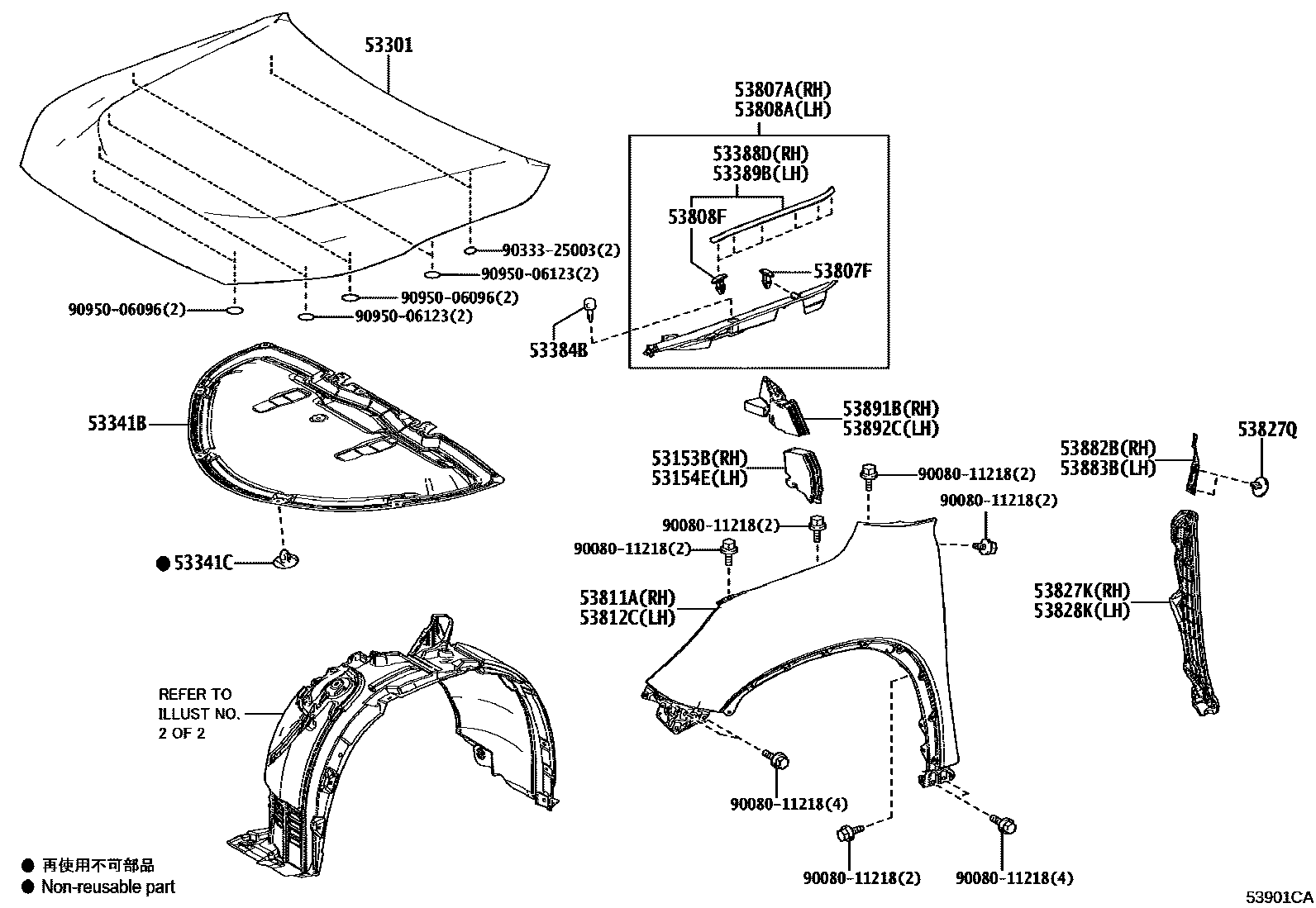

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53807FCLIP, FRONT FENDER REINFORCEMENT
SILVER
BLACK
53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53808FCLIP, FRONT FENDER REINFORCEMENT
SILVER
PINK
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53891BSEAL, FRONT FENDER SPLASH SHIELD, FRONT RH
53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
9008011218
main90080-11218
9033325003
main90333-25003
9095006096
main90950-06096
9095006123
main90950-06123
25 parts on this diagram · 2 diagrams in section
