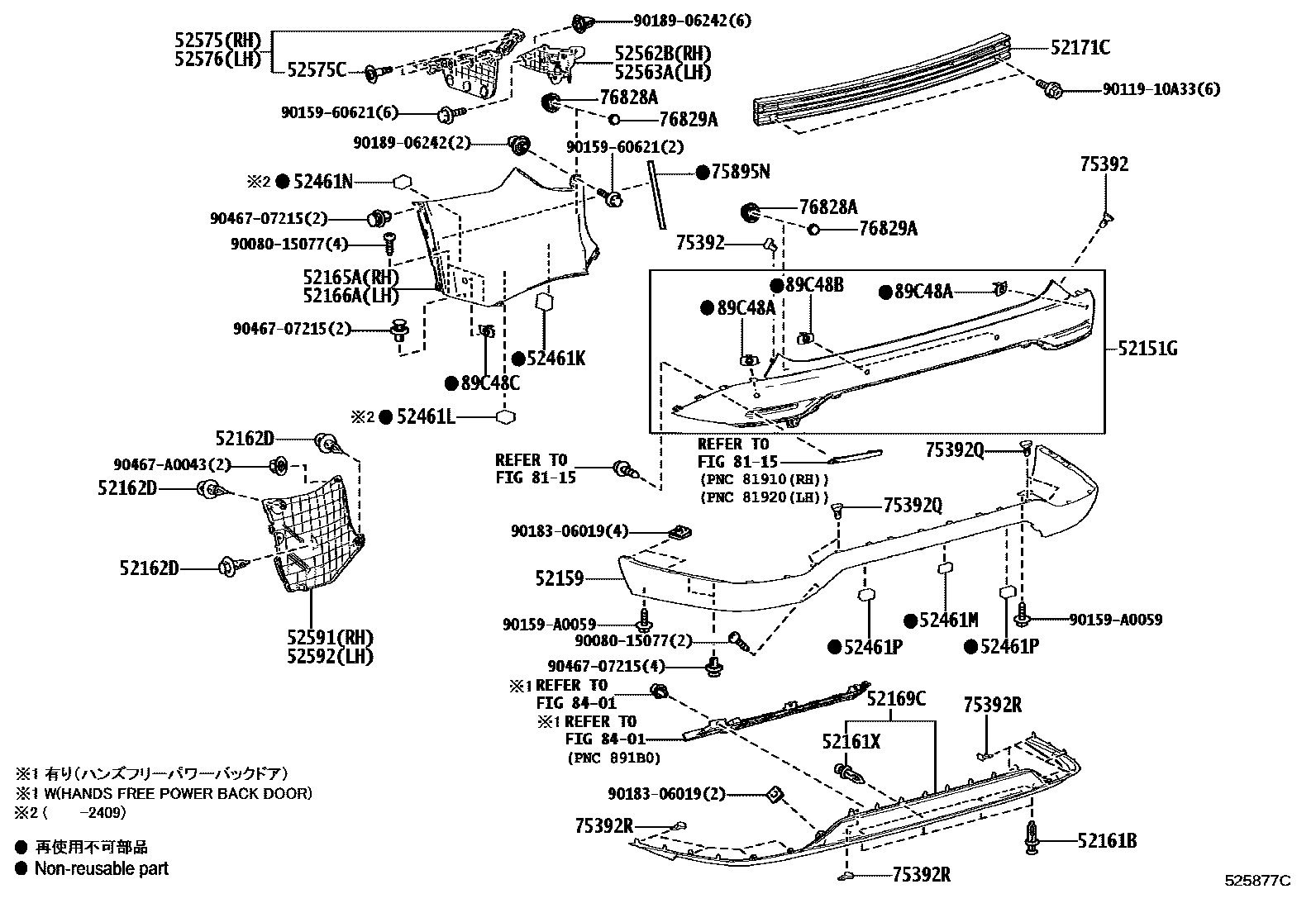

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,TOWING HITCH-TOWING RECEIVE HITCH & WIRE&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
NO PAINT REQ.,TOWING HITCH-ACTIVITY MOUNT&PARKING SUPPORT ALART/BRAKE-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
NO PAINT REQ.
52159COVER, REAR BUMPER
PAINT REQ.,TOWING HITCH-ACTIVITY MOUNT&ADVANCED PARK-WITH
PAINT REQ.,TOWING HITCH-ACTIVITY MOUNT&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
PAINT REQ.
PAINT REQ.,TOWING HITCH-TOWING RECEIVE HITCH & WIRE
PAINT REQ.,TOWING HITCH-TOWING RECEIVE HITCH & WIRE&ADVANCED PARK-WITH
PAINT REQ.,TOWING HITCH-TOWING RECEIVE HITCH & WIRE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
PAINT REQ.,TOWING HITCH-ACTIVITY MOUNT
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-ACTIVITY MOUNT&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-ACTIVITY MOUNT
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&ADVANCED PARK-WITH
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-TOWING RECEIVE HITCH & WIRE&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
PAINT REQ.,BODY COLOR-SILVER ME.(1J9)&TOWING HITCH-ACTIVITY MOUNT&ADVANCED PARK-WITH
PAINT REQ.
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52461MPAD, REAR BUMPER, NO.3
52461NPAD, REAR BUMPER, NO.4
52461PPAD, REAR BUMPER, NO.5
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75392RRETAINER, OUTSIDE MOULDING, NO.3
75895NTAPE, MOULDING, NO.1
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
TOWING HITCH-TOWING RECEIVE HITCH & WIRE&PARKING SUPPORT ALART/BRAKE-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
TOWING HITCH-ACTIVITY MOUNT&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE& *RCTB *BGM)
BLACK,RH
BLACK,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
TOWING HITCH-ACTIVITY MOUNT&PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE& *RCTB *BGM)
PARKING SUPPORT ALART/BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
TOWING HITCH-TOWING RECEIVE HITCH & WIRE&PARKING SUPPORT ALART/BRAKE-WITH(PARKINGSUPPORT BRAKE & *RCTB *BGM)
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9008015077
main90080-15077
9011910A33
main90119-10A33
9015960621
main90159-60621
90159A0059
main90159-A0059
9018306019
main90183-06019
9018906242
main90189-06242
9046707215
main90467-07215
90467A0043
main90467-A0043
40 parts on this diagram · 6 diagrams in section
