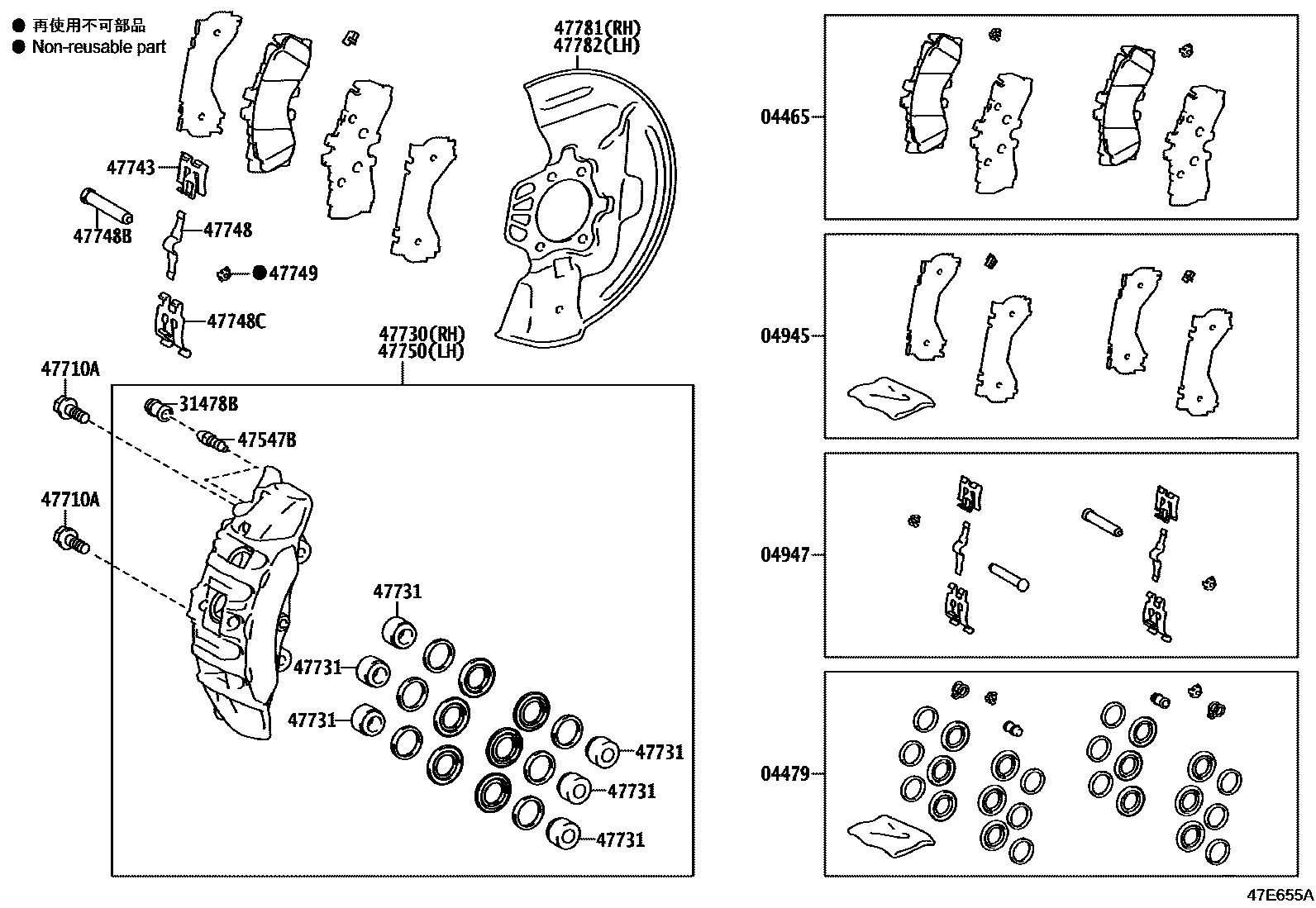

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02530iTAUA1#..G,M,N202309

MARK ADVICS VC084H

main04465-48270iGYU15,TAUH15202309

MARK ADVICS VC115-FG

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02440iTAUA1#..G,M,N202309

main04478-48240iGYU15,TAUH15202309

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02311iTAUA1#..G,M,N202309

main04945-48220iGYU15,TAUH15202309

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E010iTAUA1#..G,M,N202309

main04947-48100iGYU15,TAUH15202309

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGYU15,TAUH15202309

main31478-30010iTAUA1#..G,M,N202309

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iTAUA1#..G,M,N202309

main47547-50010iTAUA15..S202309

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iTAUA15..S202309

*14-1.5PX35.5-31,(J)

main90105-A0435iTAUA15..S202309

*14-1.5PX35.5-31,(L)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0E071iTAUA1#..G,M,N202309

main47730-48260iGYU15202312

main47730-48270iTAUH15202309

47731PISTON, FRONT DISC BRAKE

main47731-0E070iTAUA1#..G,M,N202309

main47731-48260iGYU15,TAUH15202309

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-48260iGYU15,TAUH15202309

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11051iGYU15,TAUH15202309

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-48260iGYU15,TAUH15202309

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-48260iTAUA15..S202309

47749CLIP, PIN HOLD

main47743-11050iGYU15,TAUH15202309

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0E071iTAUA1#..G,M,N202309

main47750-48230iGYU15202312

main47750-48240iTAUH15202309

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E060iTAUA1#..G,M,N202309

main47781-0E090iGYU15,TAUH15202309

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E060iTAUA1#..G,M,N202309

main47782-0E090iGYU15,TAUH15202309

17 parts on this diagram · 2 diagrams in section
