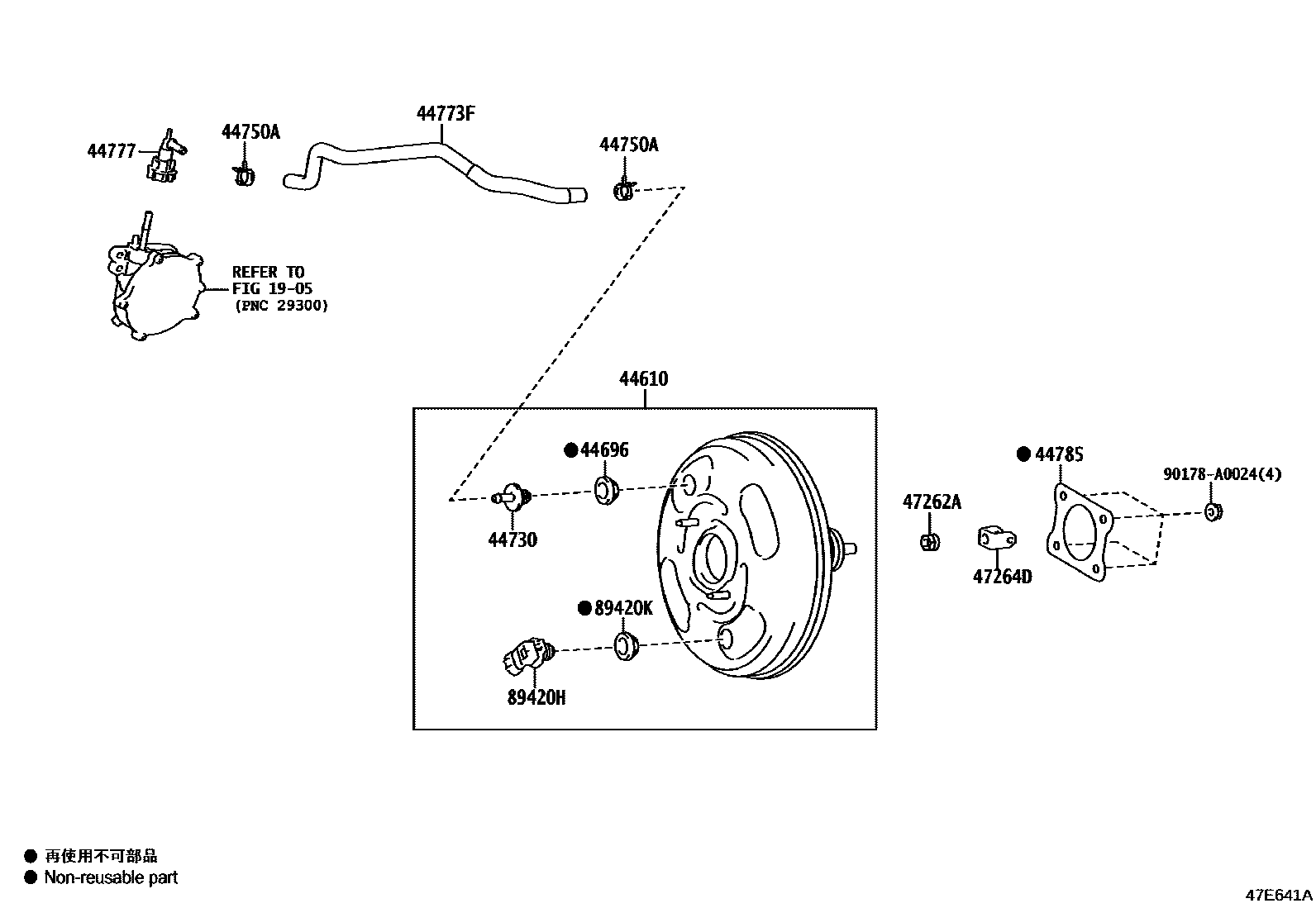

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0E191iTAUA1#..G,M,N202309

main44610-0E230iTAUA15..S202412

44696GROMMET, CHECK VALVE

main90080-48071iTAUA1#..G,M,N202309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iTAUA1#..G,M,N202309

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014iTAUA1#..G,M,N202309

44773FHOSE, UNION TO CHECK VALVE

main44773-0E160iTAUA1#..G,M,N202309

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iTAUA1#..G,M,N202309

44785GASKET, BRAKE BOOSTER

main44785-02060iTAUA1#..G,M,N202309

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iTAUA1#..G,M,N202309

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iTAUA1#..G,M,N202309

89420HSENSOR ASSY, VACUUM

main89421-71040iTAUA1#..G,M,N202309

89420KGROMMET, VACUUM SENSOR

main90080-48071iTAUA1#..G,M,N202309

90178A0024

main90178-A0024

13 parts on this diagram · 1 diagram in section
