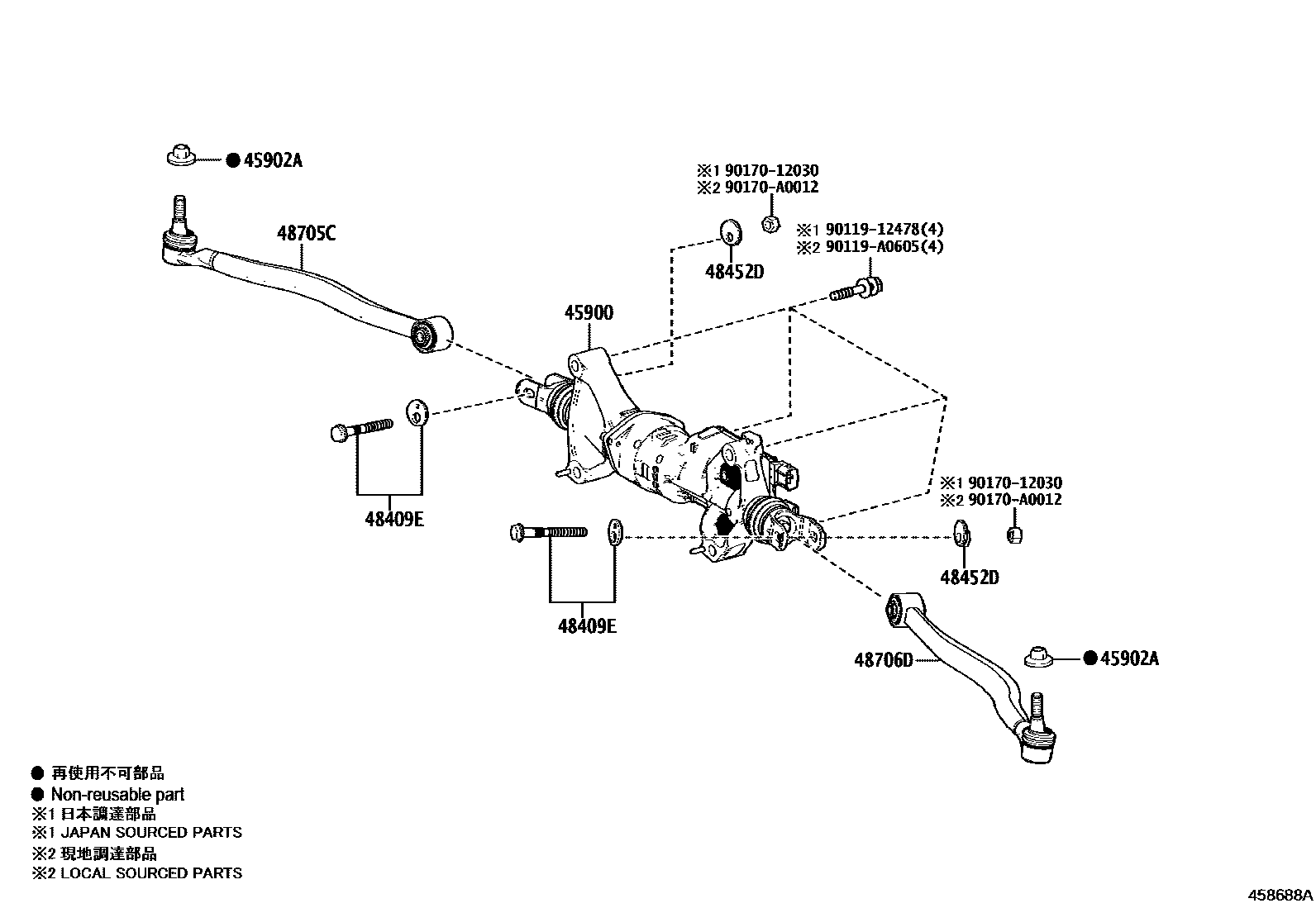

REAR STEERING GEAR (4WS)

45900LINK ASSY, REAR STEERING

main45900-48020iTAUH15202309

45902ANUT, CASTLE(FOR REAR STEERING TIE ROD END)

main90177-14006iTAUH15202309

48409ECAM SUB-ASSY, TOE ADJUST

main48409-0E090iTAUH15202309

48452DPLATE, TOE ADJUST

main48452-50040iTAUH15202309

48705CLINK SUB-ASSY SET, TOE CONTROL, RH

main48705-48020iTAUH15202309

48706DLINK SUB-ASSY SET, TOE CONTROL, LH

main48706-48020iTAUH15202309

9011912478

main90119-12478

90119A0605

main90119-A0605

9017012030

main90170-12030

90170A0012

main90170-A0012

10 parts on this diagram · 1 diagram in section
