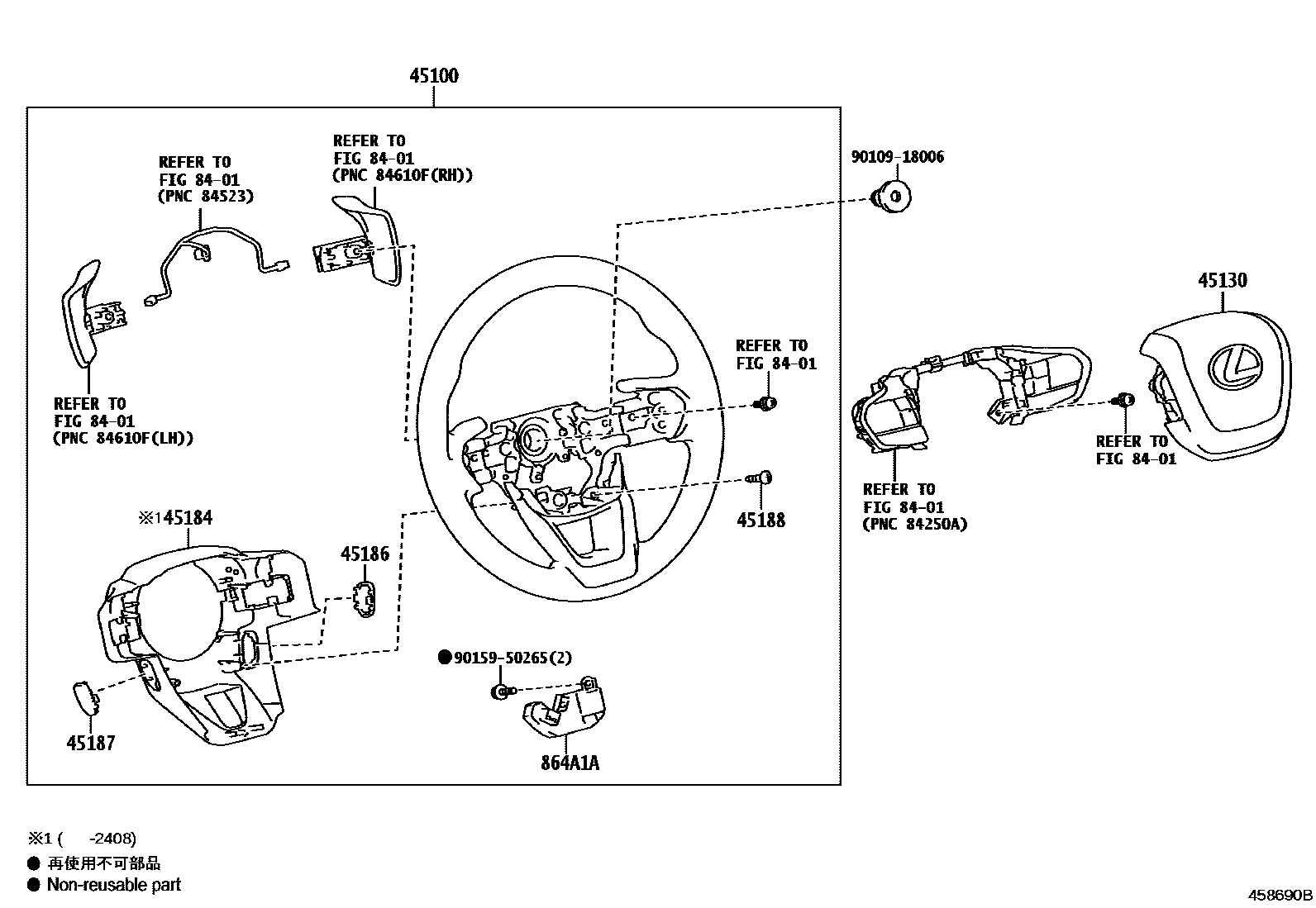

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#,4#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#,4#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#,4#
3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#
REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,2#
STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER),BLACK,TRIM0#,2#
STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#
REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=16.5
L=16.5,STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)
L=16.5,STEERING WHEEL-F SPORT,W(PADDLE SWITCH,STEERING HEATER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST)
L=16.5,REAR & REAR SIDE MONITOR-WITH(*BSM & *LC & SAFE EXIT ASSIST)
8401
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
9010918006
main90109-18006
9015950265
main90159-50265
10 parts on this diagram · 2 diagrams in section
