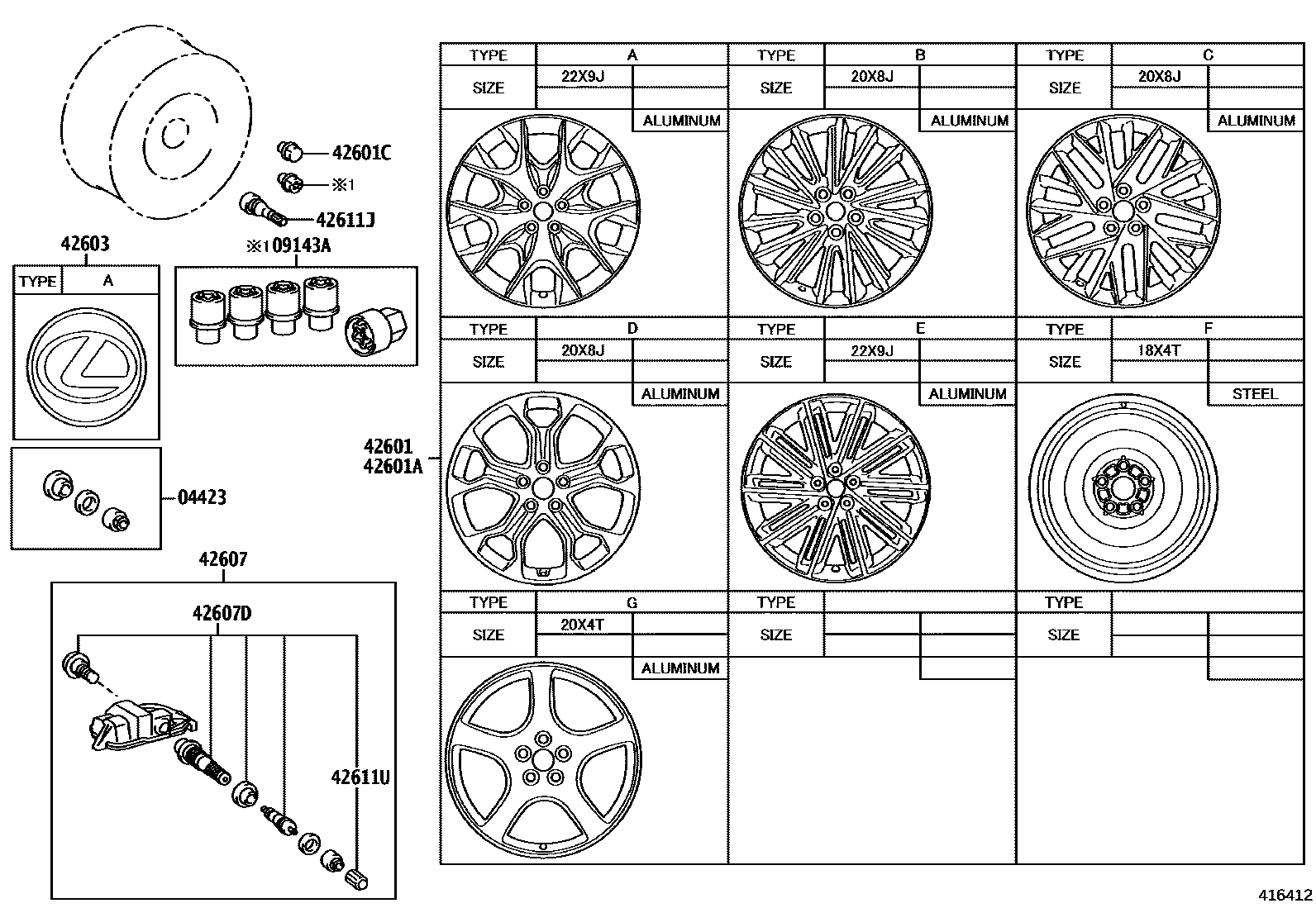

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
09143ANUT, WHEEL LOCK W/SOCKET WRENCH
WHEEL LOCKS-WITH
WHEEL LOCKS-WITH
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE
42601WHEEL, DISC
22X9J,#,TYPE A:REFER ILLUST.
22X9J,#,CANADA SPEC,TYPE A:REFER ILLUST.
22X9J,#,TYPE A:REFER ILLUST.
20X8J,#,TYPE B:REFER ILLUST.
20X8J,#,TYPE C:REFER ILLUST.
20X8J,#,TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE,TYPE C:REFER ILLUST.
20X8J,#,CANADA SPEC&TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE,TYPE C:REFER ILLUST.
20X8J,#,CANADA SPEC,TYPE C:REFER ILLUST.
20X8J,#,TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE,TYPE D:REFER ILLUST.
22X9J,#,TYPE E:REFER ILLUST.
22X9J,#,CANADA SPEC,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE F:REFER ILLUST.
18X4T,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
WHEEL LOCKS-WITH
TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE
WHEEL LOCKS-WITH
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-255/55R20 MUD & SNOW TIRE
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
10 parts on this diagram · 2 diagrams in section
