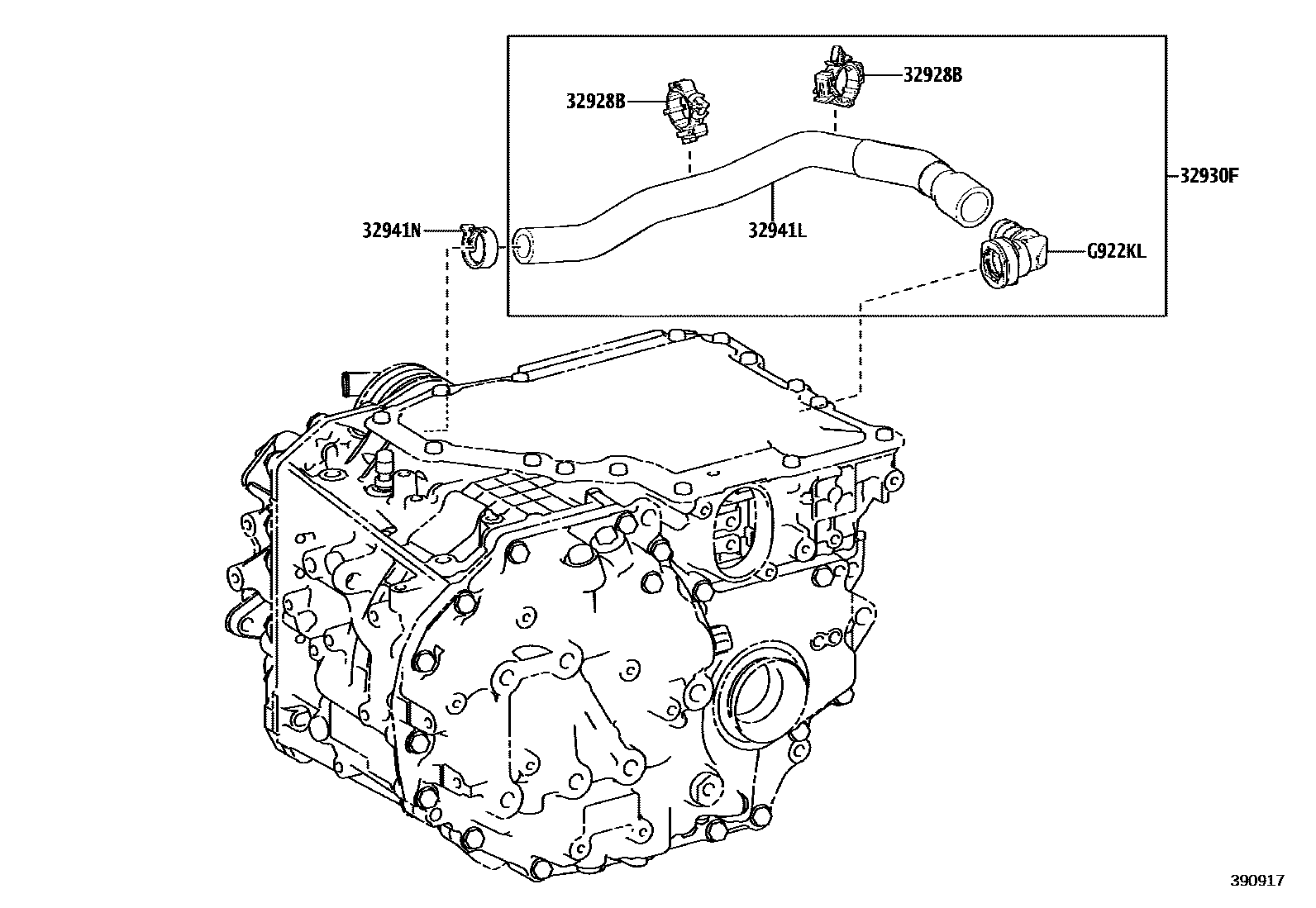

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0003 1

32928BCLAMP, FLEXIBLE HOSE, NO.1

main16581-25160iGYU15,TAUH15¥300202309

(J)

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-0E210iGYU15,TAUH15202309

(L)

main32930-40010iGYU15202312

main32930-48110iGYU15,TAUH15¥2,500202309

(J)

32941LHOSE, OIL COOLER INLET, NO.1

main32941-0E190iGYU15,TAUH15202309

(L)

main32941-48080iGYU15,TAUH15¥1,920202309

(J)

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-A0029iGYU15,TAUH15202309

(L)

main96138-42501iGYU15,TAUH15¥180202309

(J)

G922KLCONNECTOR, EHV WATER HOSE

mainG922K48020iGYU15,TAUH15202309

(J)

5 parts on this diagram · 2 diagrams in section
