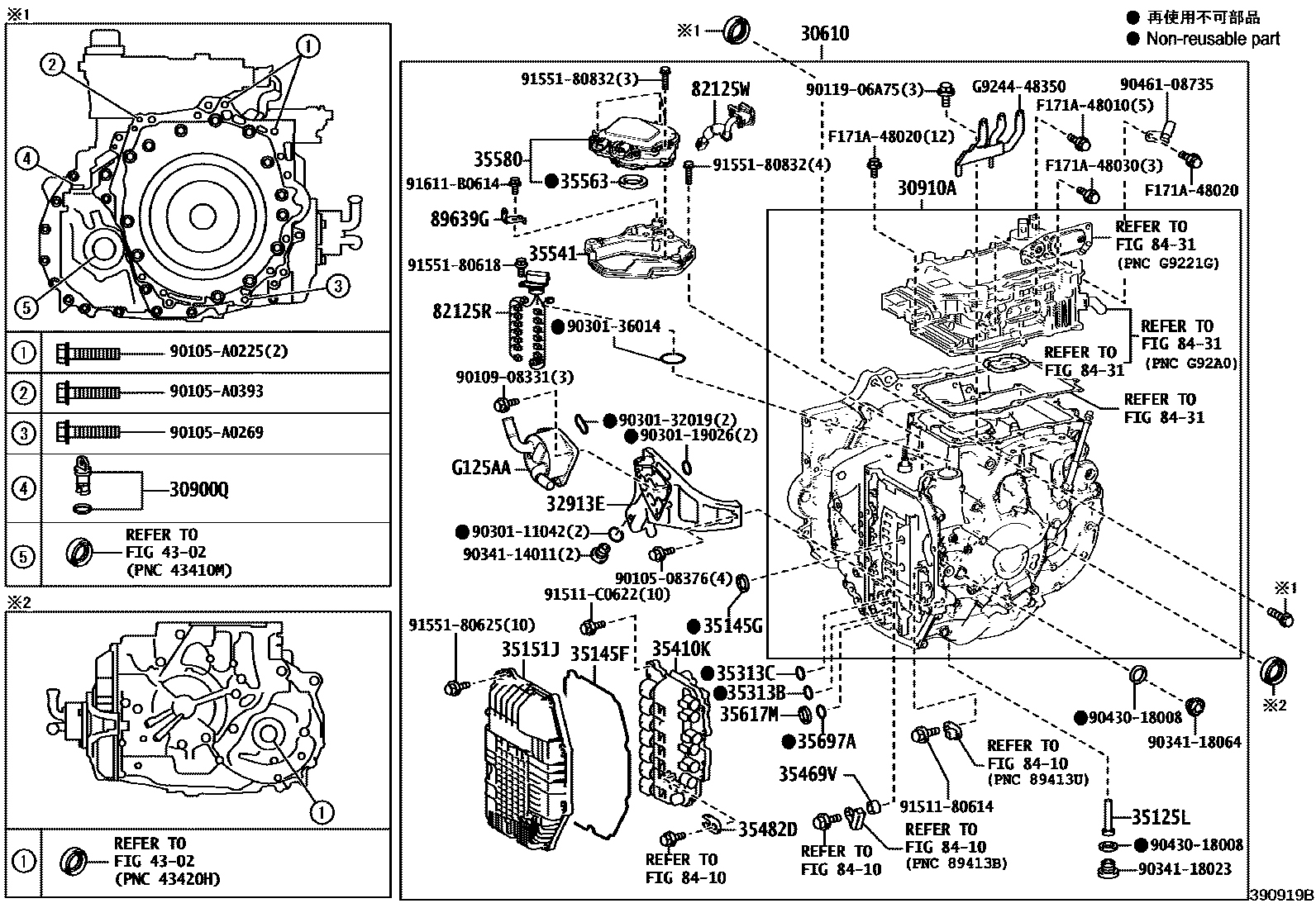

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1RR W/MOTOR&INVERTER TRANSAXLE

30610TRANSAXLE ASSY, W/MOTOR & INVERTER

main30950-48020iTAUH15202309

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-40010iGYU15202312-202411

main30970-40010iGYU15202411

30900QPLUG, FILLER(HEV)

main35150-45010iTAUH15202309

main90341-18016iGYU15202312

30910ATRANSMISSION ASSY, HYBRID VEHICLE

main30910-48020iTAUH15202309

32913EBRACKET, TRANSMISSION OIL COOLER, NO.1

main32913-30080iTAUH15202309

35125LTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-30530iTAUH15202309

35145FGASKET, TRANSAXLE CASE

main35145-30010iTAUH15202309

35145GGASKET, TRANSAXLE CASE, NO.2

main35145-33020iTAUH15202309

35151JCOVER, AUTOMATIC TRANSMISSION CASE

main35151-30060iTAUH15202309

35313BGASKET, FRONT OIL PUMP COVER, NO.1

main35313-30020iTAUH15202309

35313CGASKET, FRONT OIL PUMP COVER, NO.2

main35313-30030iTAUH15202309

35410KBODY ASSY, TRANSMISSION VALVE

main35410-30A80iTAUH15202309

35469VSPACER

main35469-48030iTAUH15202309

35482DCLAMP, TEMPERATURE SENSOR

main35482-30070iTAUH15202309

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-30030iTAUH15202309

main35541-78010iGYU15202312

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iGYU15202312

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-48011iTAUH15202309

main35580-52011iGYU15202312

35617MRING, CLUTCH DRUM OIL SEAL

main35617-30040×2iTAUH15202309

35697ARING, TRANSAXLE OIL SEAL

main35697-30010×2iTAUH15202309

4302

82125RWIRE, TRANSMISSION

main82125-30610iTAUH15202309

82125WWIRE, TRANSMISSION, NO.2

main82125-48070iTAUH15202309

8410

8431

89639GCLAMP

main89639-48020iTAUH15202309

G125AACOOLER, MOTOR COOLING

mainG125A48030iTAUH15202309

9010508376

main90105-08376

90105A0225

main90105-A0225

90105A0269

main90105-A0269

90105A0393

main90105-A0393

9010908331

main90109-08331

9011906A75

main90119-06A75

9030111042

main90301-11042

9030119026

main90301-19026

9030132019

main90301-32019

9030136014

main90301-36014

9034114011

main90341-14011

9034118023

main90341-18023

9034118064

main90341-18064

9043018008

main90430-18008

9046108735

main90461-08735

9151180614

main91511-80614

91511C0622

main91511-C0622

9155180618

main91551-80618

9155180625

main91551-80625

9155180832

main91551-80832

91611B0614

main91611-B0614

F171A48010

mainF171A-48010

F171A48020

mainF171A-48020

F171A48030

mainF171A-48030

G924448350PLATE, INVERTER BUS-BAR, NO.1

mainG9244-48350

51 parts on this diagram · 4 diagrams in section
