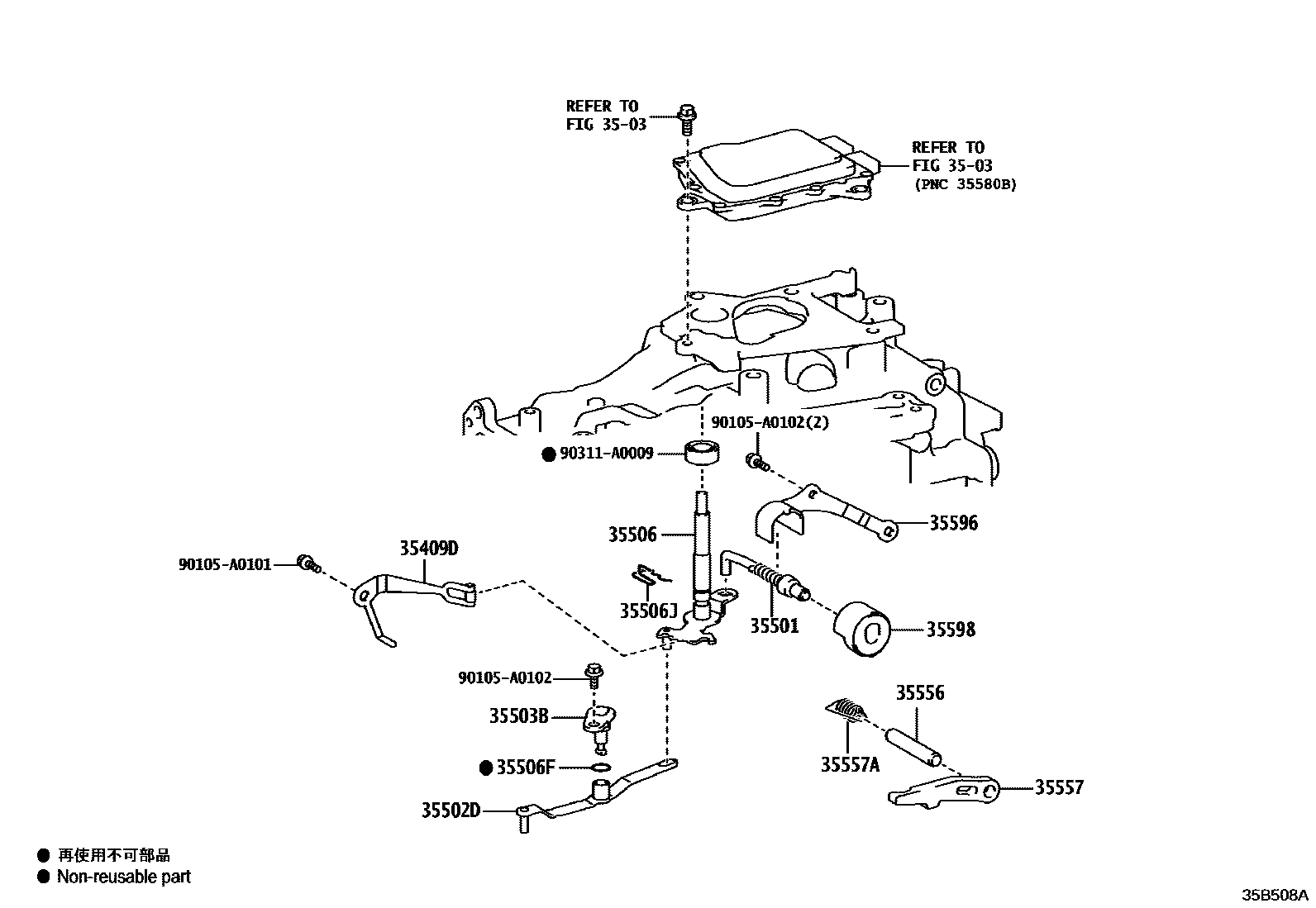

THROTTLE LINK & VALVE LEVER (ATM)

3503

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iTAUA1#..G,M,N202309

35501ROD SUB-ASSY, PARKING LOCK

main35501-48040iTAUA1#..G,M,N202309

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-48010iTAUA1#..G,M,N202309

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iTAUA1#..G,M,N202309

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-78020iTAUA1#..G,M,N202309

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-A0063iTAUA1#..G,M,N202309

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iTAUA1#..G,M,N202309

35556SHAFT, PARKING LOCK PAWL

main35556-48030iTAUA1#..G,M,N202309

35557PAWL, PARKING LOCK

main35557-48040iTAUA1#..G,M,N202309

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iTAUA1#..G,M,N202309

35596PLATE, PAWL STOPPER

main35596-06010iTAUA1#..G,M,N202309

35598SLEEVE, PARKING LOCK

main35598-06020iTAUA1#..G,M,N202309

90105A0101

main90105-A0101

90105A0102

main90105-A0102

90311A0009

main90311-A0009

16 parts on this diagram · 1 diagram in section
