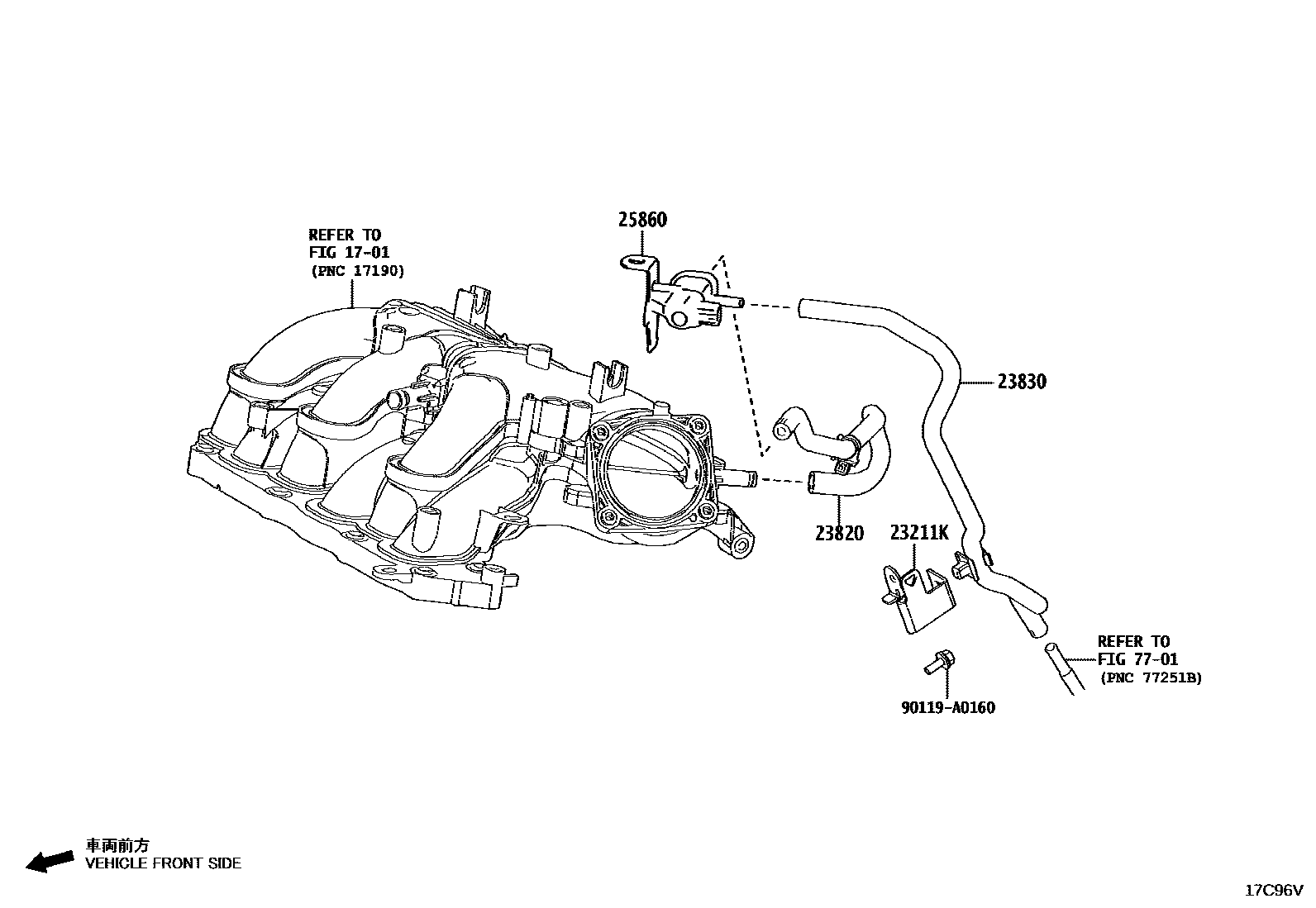

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

23211KBRACKET

main23881-31090i2GR..GYU15202312

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31370i2GR..GYU15202312

main23820-F0370iT24..TAUA15..S202309

main23820-F0480iT24..TAUH15202309

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23820-25430iT24..TAUH15202309

main23830-31080i2GR..GYU15202312

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25080iT24..TAUA1#..G,M,N202309

main25860-31200i2GR..GYU15202312

7701

90119A0160

main90119-A0160

7 parts on this diagram · 4 diagrams in section
