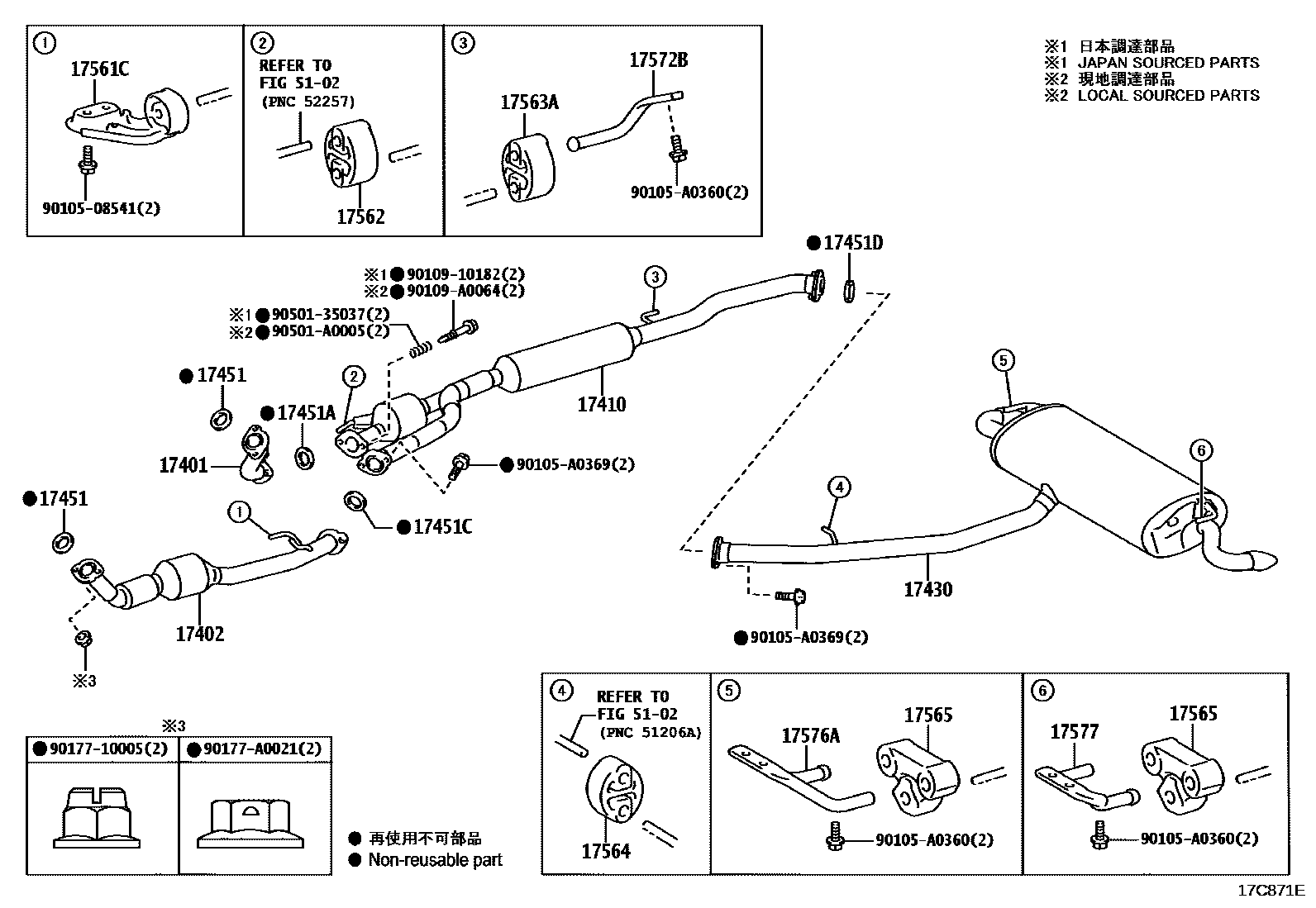

EXHAUST PIPE
17401PIPE SUB-ASSY, EXHAUST, FRONT
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
(J)
(L)
17451CGASKET, EXHAUST PIPE, NO.3
17451DGASKET, EXHAUST PIPE, NO.4
17561CSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17565SUPPORT, EXHAUST PIPE, NO.5
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
5102
9010508541
main90105-08541
90105A0360
main90105-A0360
90105A0369
main90105-A0369
9010910182
main90109-10182
90109A0064
main90109-A0064
9017710005
main90177-10005
90177A0021
main90177-A0021
9050135037
main90501-35037
90501A0005
main90501-A0005
26 parts on this diagram · 2 diagrams in section
