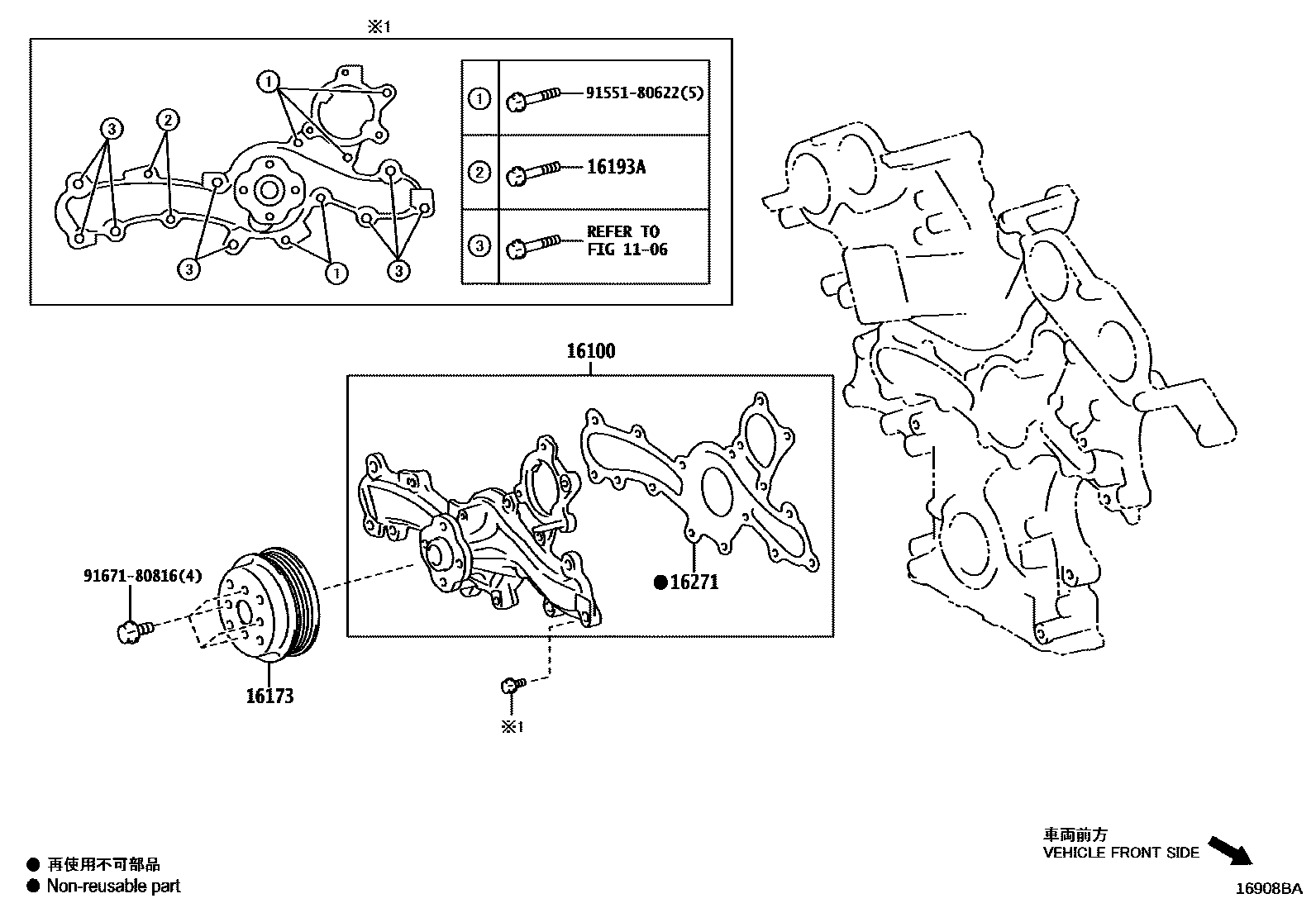

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-25030iT24..TAUA1#..G,M,N¥10,500202309

(J)

main16100-25040iT24..TAUH15¥10,000202309

main16100-39616i2GR..GYU15¥9,500202312

main16100-F0010iT24..TAUA1#..G,M,N202309

(L)

16173PULLEY, WATER PUMP

main16173-31042i2GR..GYU15¥3,000202312

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GR..GYU15¥210202312

16271GASKET, WATER PUMP

main16271-25020iT24..TAUA1#..G,M,N¥590202309

main16271-25030iT24..TAUH15¥520202309

main16271-31050i2GR..GYU15¥1,740202312

9155180622

main91551-80622¥60

9167180816

main91671-80816¥80

7 parts on this diagram · 2 diagrams in section
