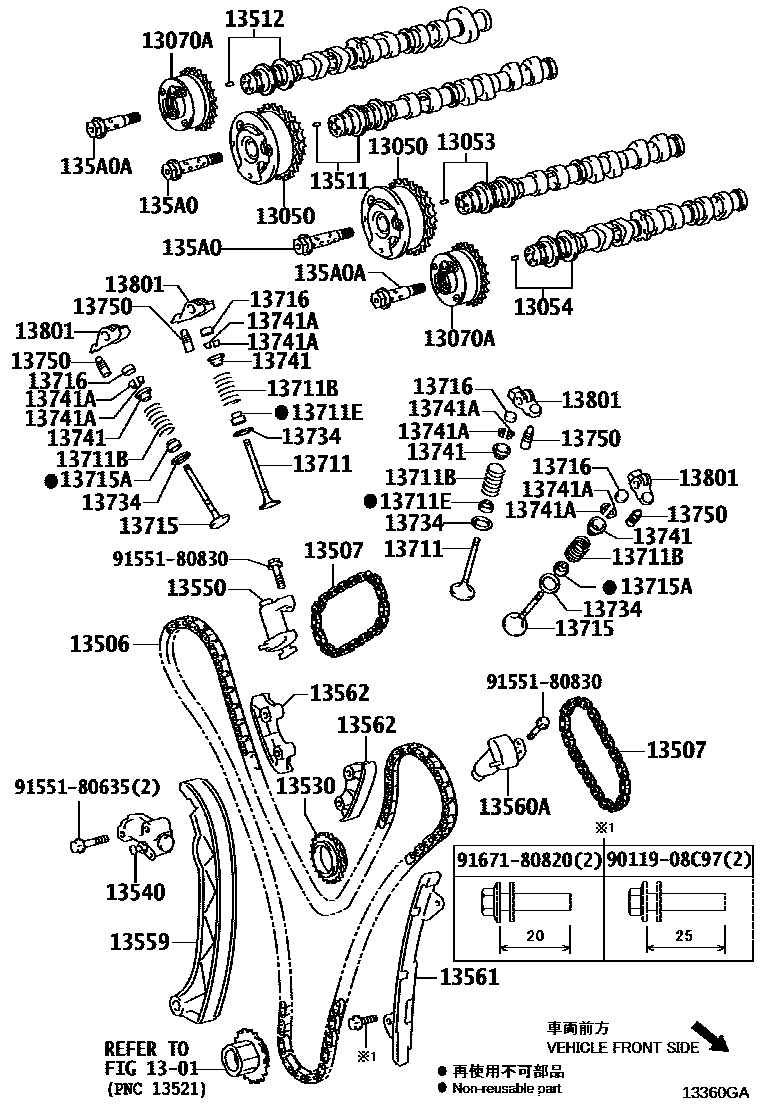

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
(J)
(L)
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(J)
(L)
13506CHAIN SUB-ASSY
(J)
(L)
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
(J)
(L)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
(L)
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
(J)
(L)
13562DAMPER, CHAIN VIBRATION, NO.2
(J)
(L)
135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)
(J)
(L)
135A0ABOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST)
(J)
(L)
13711VALVE, INTAKE
(J)
(L)
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
(J)
(L)
(L)
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(J)
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(J)
(L)
9011908C97
main90119-08C97
9155180635
main91551-80635
9155180830
main91551-80830
9167180820
main91671-80820
33 parts on this diagram · 2 diagrams in section
