11011WASHER SET, CRANKSHAFT THRUST

main11011-31080i202312

STD

11711BEARING, CRANKSHAFT

main11071-31060-A1i202312

MARK UPPER 1 LOWER 1,NO.2,REFER R/M

sub11071-31060

main11071-31060-A2i202312

MARK UPPER 1 LOWER 2,NO.2,REFER R/M

sub11071-31060

main11071-31060-B2i202312

MARK UPPER 2 LOWER 2,NO.2,REFER R/M

sub11071-31060

main11071-31060-B3i202312

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

sub11071-31060

main11071-31060-C3i202312

MARK UPPER 3 LOWER 3,NO.2,REFER R/M

sub11071-31060

main11071-31060-C4i202312

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

sub11071-31060

main11071-31060-D4i202312

MARK UPPER 4 LOWER 4,NO.2,REFER R/M

sub11071-31060

main11071-31060-D5i202312

MARK UPPER 4 LOWER 5,NO.2,REFER R/M

sub11071-31060

main11071-31060-E5i202312

MARK UPPER 5 LOWER 5,NO.2,REFER R/M

sub11071-31060

main11701-25050-01i202309

MARK 1,(J),NO.1 REFER R/M

main11701-25050-02i202309

MARK 2,(J),NO.1 REFER R/M

main11701-25050-03i202309

MARK 3,(J),NO.1 REFER R/M

main11701-25050-04i202309

MARK 4,(J),NO.1 REFER R/M

main11701-25060-01i202309

MARK 1,(J),NO.2 REFER R/M

main11701-25060-02i202309

MARK 2,(J),NO.2 REFER R/M

main11701-25060-03i202309

MARK 3,(J),NO.2 REFER R/M

main11701-25060-04i202309

MARK 4,(J),NO.2 REFER R/M

main11701-31100-A1i202312

MARK UPPER 1 LOWER 1,NO.1,REFER R/M

sub11701-31100

main11701-31100-A2i202312

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

sub11701-31100

main11701-31100-B2i202312

MARK UPPER 2 LOWER 2,NO.1,REFER R/M

sub11701-31100

main11701-31100-B3i202312

MARK UPPER 2 LOWER 3,NO.1,REFER R/M

sub11701-31100

main11701-31100-C3i202312

MARK UPPER 3 LOWER 3,NO.1,REFER R/M

sub11701-31100

main11701-31100-C4i202312

MARK UPPER 3 LOWER 4,NO.1,REFER R/M

sub11701-31100

main11701-31100-D4i202312

MARK UPPER 4 LOWER 4,NO.1,REFER R/M

sub11701-31100

main11701-31100-D5i202312

MARK UPPER 4 LOWER 5,NO.1,REFER R/M

sub11701-31100

main11701-31100-E5i202312

MARK UPPER 5 LOWER 5,NO.1,REFER R/M

sub11701-31100

main11701-F0050-01i202309

MARK 1,(L),NO.1 REFER R/M

main11701-F0050-02i202309

MARK 2,(L),NO.1 REFER R/M

main11701-F0050-03i202309

MARK 3,(L),NO.1 REFER R/M

main11701-F0050-04i202309

MARK 4,(L),NO.1 REFER R/M

main11701-F0060-01i202309

MARK 1,(L),NO.2 REFER R/M

main11701-F0060-02i202309

MARK 2,(L),NO.2 REFER R/M

main11701-F0060-03i202309

MARK 3,(L),NO.2 REFER R/M

main11701-F0060-04i202309

MARK 4,(L),NO.2 REFER R/M

13011RING SET, PISTON

main13011-15140i202309

STD,(J)

main13011-31290i202312

STD

main13011-F0080i202309

STD,(L)

13041BEARING, CONNECTING ROD

main13041-25040-01i202309

MARK 1,(J),REFER R/M

main13041-25040-02i202309

MARK 2,(J),REFER R/M

main13041-25040-03i202309

MARK 3,(J),REFER R/M

main13041-31100-01i202312

MARK 1,REFER REPAIR MANUAL

main13041-31100-02i202312

MARK 2,REFER REPAIR MANUAL

main13041-31100-03i202312

MARK 3,REFER REPAIR MANUAL

main13041-31100-04i202312

MARK 4,REFER REPAIR MANUAL

main13041-F0030-01i202309

MARK 1,(L),REFER R/M

main13041-F0030-02i202309

MARK 2,(L),REFER R/M

main13041-F0030-03i202309

MARK 3,(L),REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-25050i202309

STD,(J)

main13101-31181-A0i202312

STD,MARK A,REFER REPAIR MANUAL

main13101-31181-B0i202312

STD,MARK B,REFER REPAIR MANUAL

main13101-31181-C0i202312

STD,MARK C,REFER REPAIR MANUAL

main13101-F0080i202309

STD,(L)

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i202312

main90520-25090i202309

13201ROD SUB-ASSY, CONNECTING

main13201-39285-A0i202312

MARK A,REFER REPAIR MANUAL

main13201-39285-B0i202312

MARK B,REFER REPAIR MANUAL

main13201-39285-C0i202312

MARK C,REFER REPAIR MANUAL

main13201-F9100-A0i202309

MARK A,REFER REPAIR MANUAL

main13201-F9100-B0i202309

MARK B,REFER REPAIR MANUAL

main13201-F9100-C0i202309

MARK C,REFER REPAIR MANUAL

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144i202312

13265BOLT, CONNECTING ROD

main13265-25020i202309

(J)

main13265-28020i202312

main13265-F0010i202309

(L)

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31111-A0i202312

STD,MARK A,REFER REPAIR MANUAL

main13301-31111-B0i202312

STD,MARK B,REFER REPAIR MANUAL

main13301-31111-C0i202312

STD,MARK C,REFER REPAIR MANUAL

13405FLYWHEEL SUB-ASSY

main13405-31131i202312

main13450-25010i202309

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i202312

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10048i202312

main90110-12020i202309

13411CRANKSHAFT

main13401-25060i202309

(J)

main13401-31070i202312

sub13401-31080

main13401-F0050i202309

(L)

13471PULLEY, CRANKSHAFT

main13470-31080i202312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202312

main90119-16020i202309

(J)

main90119-A0265i202309

(L)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25030i202309

(J)

main13521-31070i202312

main13521-F0030i202309

(L)

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i202312

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i202312

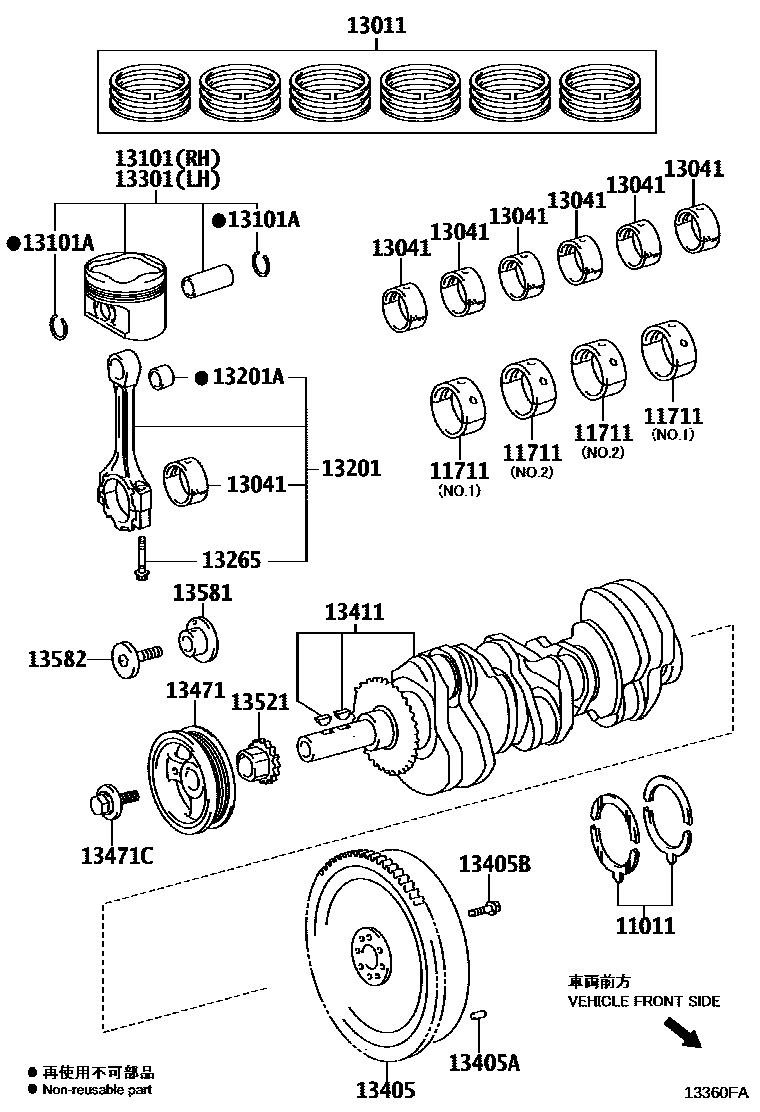

CRANKSHAFT & PISTON
