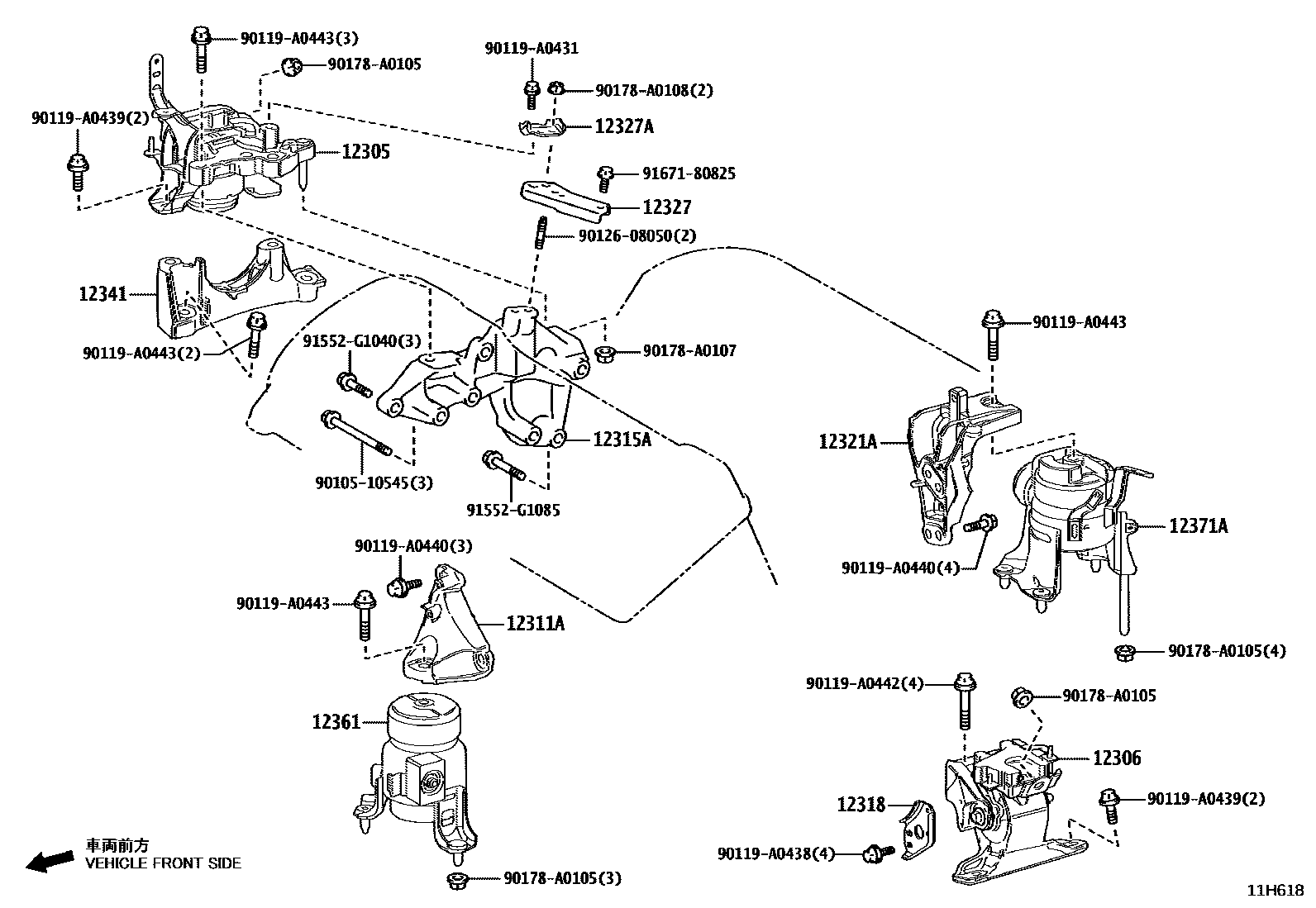

MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-31120i2GR..GYU15202312

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-31040i2GR..GYU15202312

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25140iT24..TAUH15202309

main12311-31280i2GR..GYU15202312

main12311-F0160iT24..TAUA1#..G,M,N202309

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25070iT24..TAUA15..S202412

main12315-31160i2GR..GYU15202312

12318STAY, ENGINE MOUNTING, LH

main12318-25050iT24..TAUH15202309

main12318-F0110i2GR..GYU15202312

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-F0240iT24..TAUA15..G,M,N202309

main12321-31280i2GR..GYU15202312

main12321-F0130iT24..TAUH15202309

main12321-F0170iT24..TAUA10202309

12327STAY, ENGINE MOUNTING, REAR RH

main12327-31120i2GR..GYU15202312

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0P090i2GR..GYU15202312

12341SPACER, ENGINE MOUNTING

main12341-F0010iT24..TAUH15;T24..TAUA1#..G,M,N202309

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-25130iT24..TAUH15202309

main12361-31570i2GR..GYU15202312

main12361-F0220iT24..TAUA10202309

main12361-F0230iT24..TAUA15..G,M,N202309

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31470i2GR..GYU15202312

main12371-F0260iT24..TAUA10202309

main12371-F0310iT24..TAUA15..S202412

main12371-V2040iT24..TAUH15202309

9010510545

main90105-10545

90119A0431

main90119-A0431

90119A0438

main90119-A0438

90119A0439

main90119-A0439

90119A0440

main90119-A0440

90119A0442

main90119-A0442

90119A0443

main90119-A0443

9012608050

main90126-08050

90178A0105

main90178-A0105

90178A0107

main90178-A0107

90178A0108

main90178-A0108

91552G1040

main91552-G1040

91552G1085

main91552-G1085

9167180825

main91671-80825

25 parts on this diagram · 4 diagrams in section
