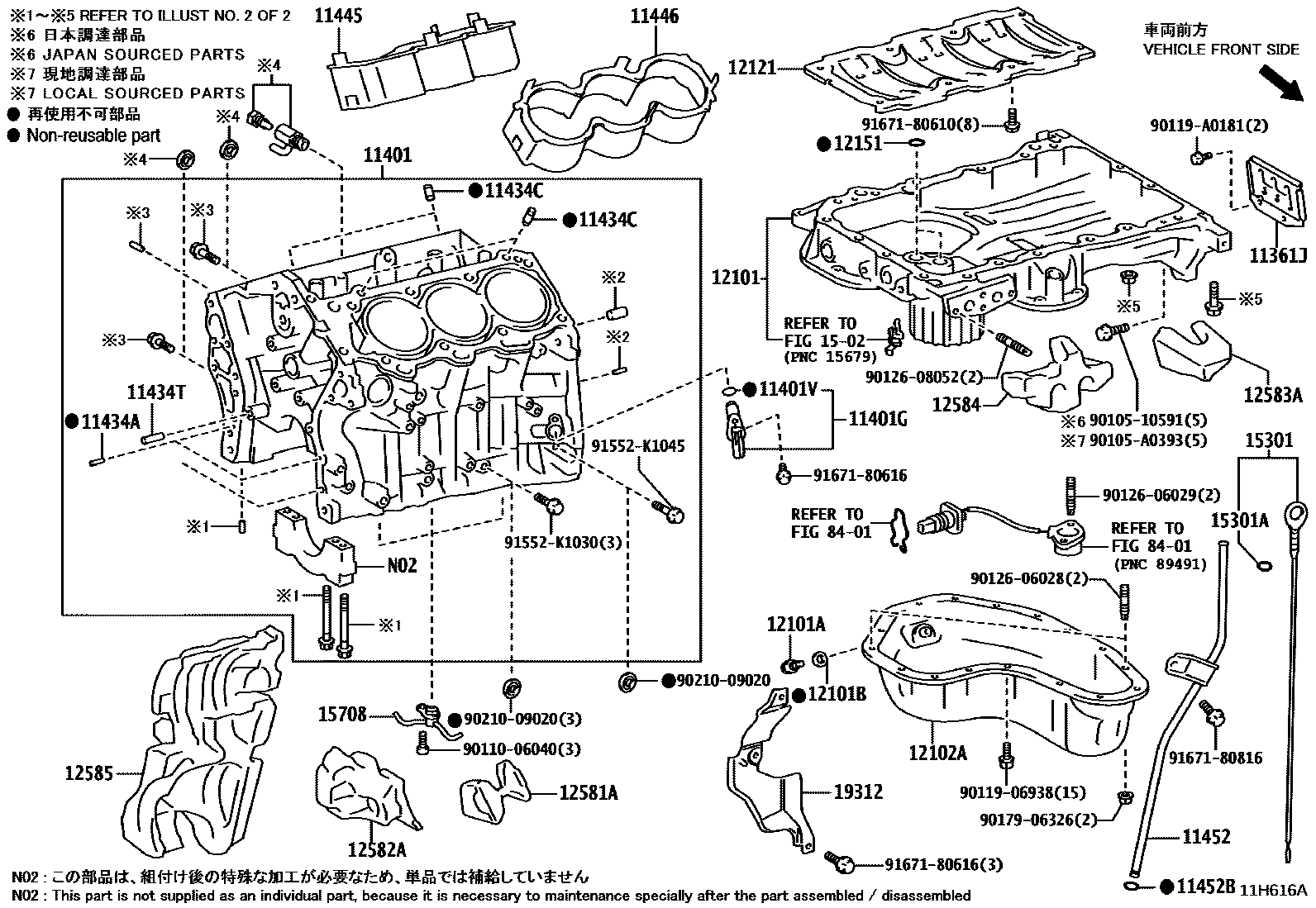

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
(J)
(L)
11401GSENSOR, CRANK POSITION
(J)
(L)
11401VO-RING, CRANK POSITION SENSOR
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6,(J)
L=14,OD=6,(L)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11446SPACER, CYLINDER BLOCK WATER JACKET, LH
11452GUIDE, OIL LEVEL GAGE
(J)
(L)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
(J)
(L)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12102APAN SUB-ASSY, OIL, NO.2
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
12151GASKET, OIL PAN
12581AINSULATOR, CYLINDER BLOCK, NO.1
12582AINSULATOR, CYLINDER BLOCK, NO.2
12583AINSULATOR, CYLINDER BLOCK, NO.3
12584INSULATOR, CYLINDER BROCK, NO.4
12585INSULATOR, CYLINDER BROCK, NO.5
1502
15301GAGE SUB-ASSY, OIL LEVEL
(J)
(L)
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
19312PROTECTOR, CRANK POSITION SENSOR
8401
9010510591
90105A0393
main90105-A0393
9011006040
9011906938
90119A0181
main90119-A0181
9012606028
9012606029
9012608052
9017906326
9021009020
91552K1030
91552K1045
9167180610
9167180616
9167180816
43 parts on this diagram · 4 diagrams in section
