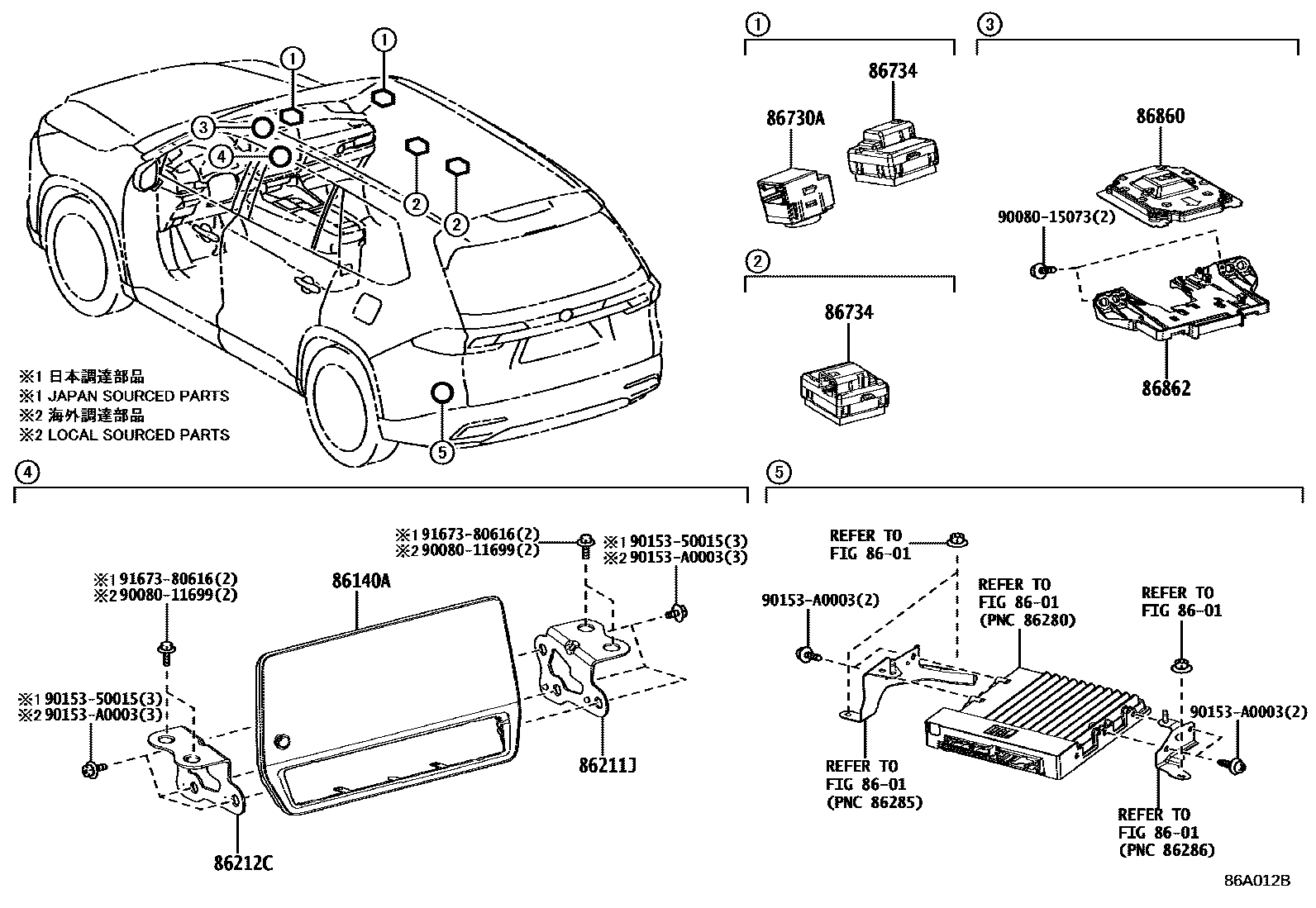

NAVIGATION & FRONT MONITOR DISPLAY

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-0E430iAASH1#,TASA1#..M,N202306-202310

DENSO TEN

main86100-0E440iAASH1#,TASA1#,TASH15..G,V,Z202306-202310

DENSO TEN

main86100-0E490iAASH1#,TASA1#..M,N202310

DENSO TEN

main86100-0E500iAASH1#,TASA1#,TASH15..G,V,Z202310

DENSO TEN

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0E270iAASH1#,TASA1#,TASH15202306

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0E260iAASH1#,TASA1#,TASH15202306

86730AMICROPHONE ASSY, TELEPHONE

main86730-0C010iAASH1#,TASA1#,TASH15202306

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-08010iTASH15202306

86860ANTENNA ASSY, NAVIGATION

main86880-02090iAASH1#,TASA1#,TASH15202306

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAASH1#,TASA1#,TASH15¥940202306

9008011699

main90080-11699¥110

9008015073

main90080-15073

9015350015

main90153-50015¥60

90153A0003

main90153-A0003

9167380616

main91673-80616¥60

13 parts on this diagram · 1 diagram in section
