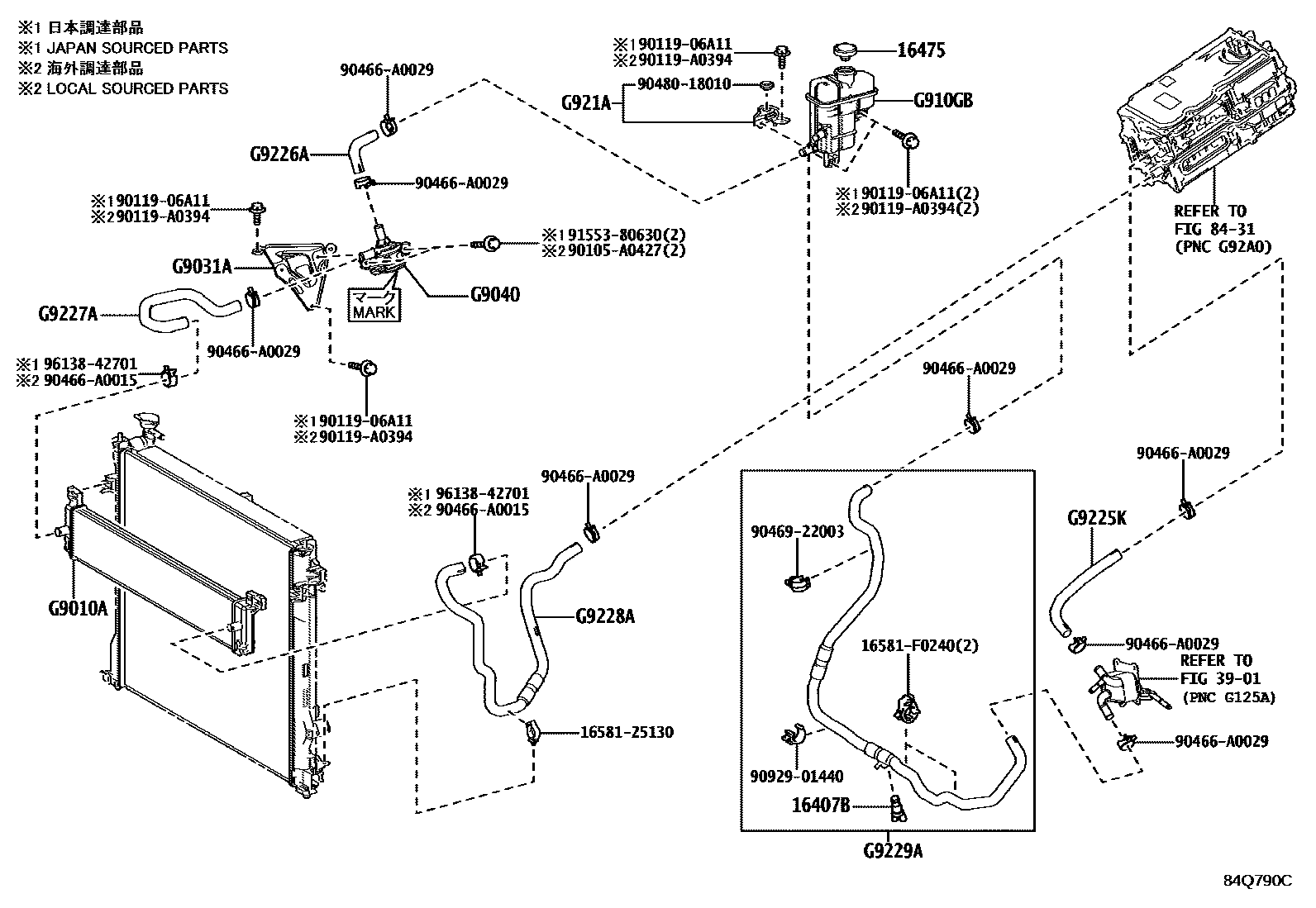

INVERTER COOLING

0001 1 0002 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS,T24AFTS..AASH1#,TASH15202306

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AASH1#202306

3901

8431

G9010ARADIATOR ASSY

mainG901048100iAASH1#202306

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E100iAASH1#202306

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904004020iAASH1#202404

(L),MARK G9040-04020

mainG90400E050iAASH1#202311-202412

(L),MARK G9040-0E050

subG9040-04020

mainG904048030iTASH15202306

mainG904048060iAASH1#202311-202412

(J)

mainG904048060iAASH1#202306-202311

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAASH1#202306

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAASH1#202306

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250E010iAASH1#202306

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E070iTASH15202306

mainG92260R020iAASH1#202306

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E010iAASH1#202306

mainG92270E060iTASH15202306

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E060iTASH15202306

mainG92280E080iAASH1#202306

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E011iAASH1#202306

mainG92290E060iTASH15202306

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0427

main90105-A0427

9011906A11

main90119-06A11

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003

9048018010

main90480-18010

9092901440

main90929-01440

9155380630

main91553-80630

9613842701

main96138-42701

26 parts on this diagram · 2 diagrams in section
