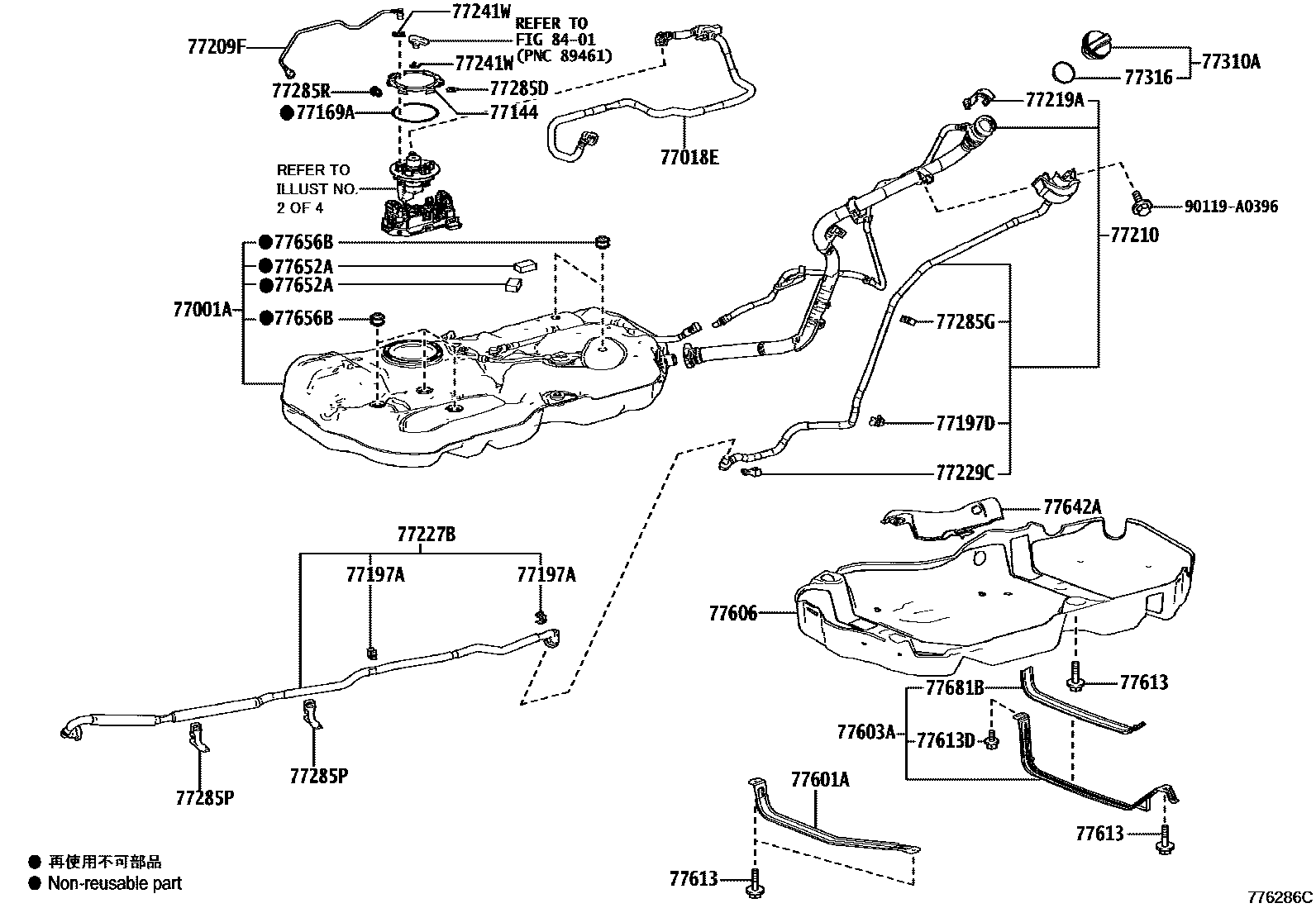

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0E240iTASA1#202306

main77001-0E250iAASH1#,TASH15202306-202409

main77001-0E251iAASH1#,TASH15202410

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0E150iTASA1#202306

main77018-0E160iAASH1#,TASH15202401

(L)

main77018-0E160iAASH1#,TASH15202306-202401

main77018-48100iAASH1#,TASH15202401

(J)

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iAASH1#,TASA1#,TASH15202306

77169AGASKET, FUEL SUCTION TUBE SET

main77169-06060iAASH1#,TASA1#,TASH15202306

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iAASH1#,TASA1#,TASH15202306

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33080iAASH1#,TASA1#,TASH15202306

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E220iTASA1#202306

main77209-0E230iAASH1#,TASH15202306

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E310iTASA1#202306

main77210-0E320iAASH1#,TASH15202306

77219ACOVER, FUEL TANK FILLER PIPE

main77219-0R020iAASH1#,TASH15202306

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-0E130iTASA1#202306

main77227-0E140iAASH1#,TASH15202306

77229CCLAMP, BREATHER TUBE

main77229-0E200iTASA1#202306

main77229-0E210iAASH1#,TASH15202306

77241WCLIP, TUBE JOINT

main77241-06020iTASA1#202306

77285DCLAMP, FUEL TUBE, NO.1

main77285-06240iTASA1#202306

main77285-0E340iAASH1#,TASH15202306

77285GCLAMP, FUEL TUBE, NO.1

main77285-06510iAASH1#,TASA1#,TASH15202306

77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)

main77285-42200iAASH1#,TASH15202306

77285RCLAMP, FUEL TUBE, NO.1

main77285-06240iAASH1#,TASH15202306

77310ACAP ASSY, FUEL TANK

main77300-06090iAASH1#,TASH15202306

main77300-07040iTASA1#202306

77316GASKET, FUEL TANK CAP

main77316-06090iAASH1#,TASA1#,TASH15202306

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0E080iAASH1#,TASH15202306

main77601-0E140iTASA1#202306

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-0E191iTASA1#202306

main77602-0E201iAASH1#,TASH15202306

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E110iAASH1#,TASH15202306

77613BOLT, FUEL TANK BAND SET

main90119-A0430iAASH1#,TASA1#,TASH15202306

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-A0509iAASH1#,TASA1#,TASH15202306

77642APROTECTOR, FUEL TANK, NO.2

main77642-0E110iTASA1#202306

main77642-0E120iAASH1#,TASH15202306

77652ACUSHION, FUEL TANK, NO.2

main77652-0E110iTASA1#202306

main77652-0E120iAASH1#202306-202408

77656BCUSHION, FUEL TANK, NO.6

main77656-06030iTASH15202306-202408

77681BSEAT, FUEL TANK BAND

main77681-0R100iAASH1#,TASA1#,TASH15202306

8401

90119A0396

main90119-A0396

29 parts on this diagram · 8 diagrams in section
