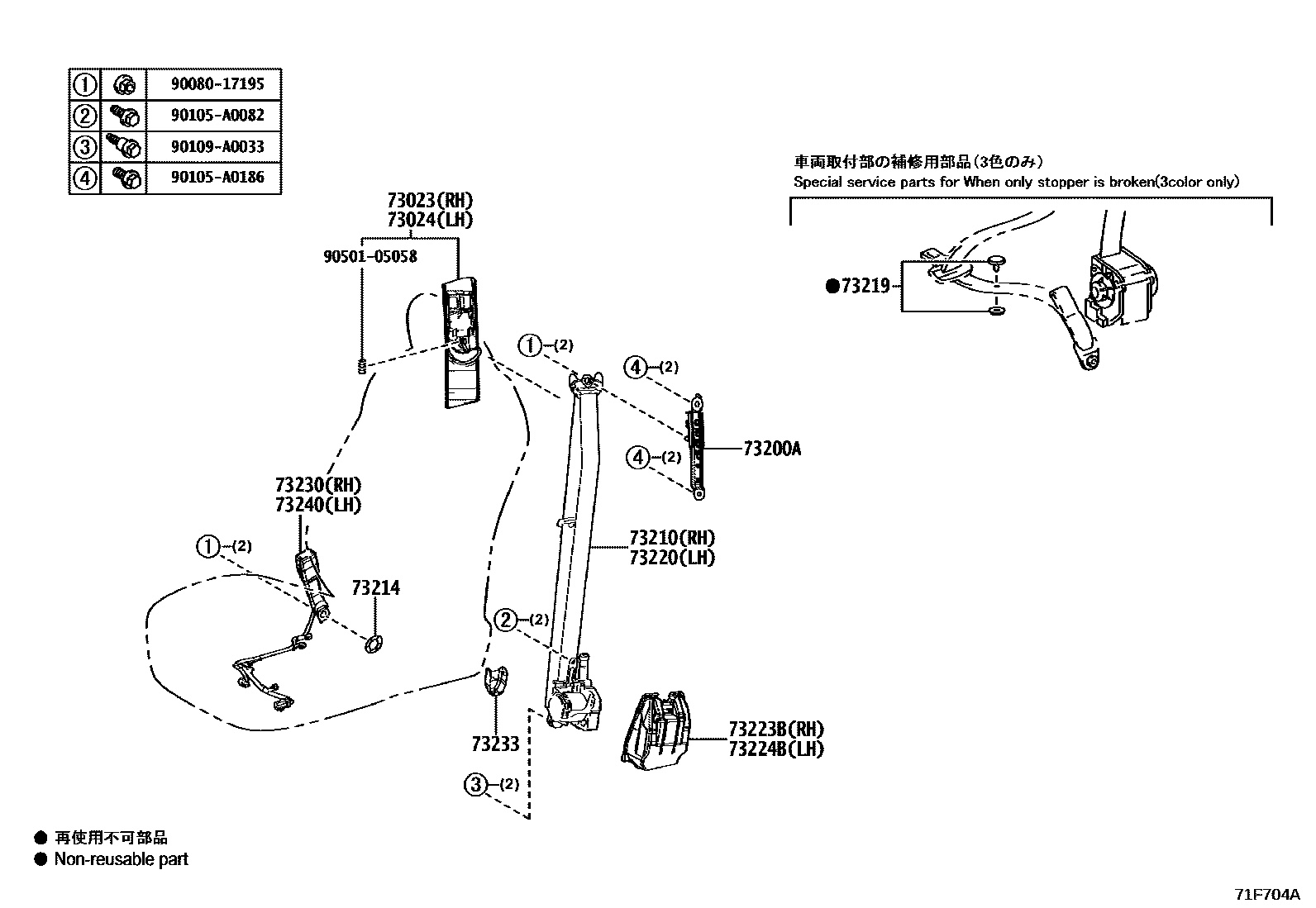

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#
BLACK,TRIM1#,2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#
BLACK,TRIM1#,2#,4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
(L)
(J)
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
9008017195
main90080-17195
90105A0082
main90105-A0082
90105A0186
main90105-A0186
90109A0033
main90109-A0033
9050105058
main90501-05058
17 parts on this diagram · 4 diagrams in section
