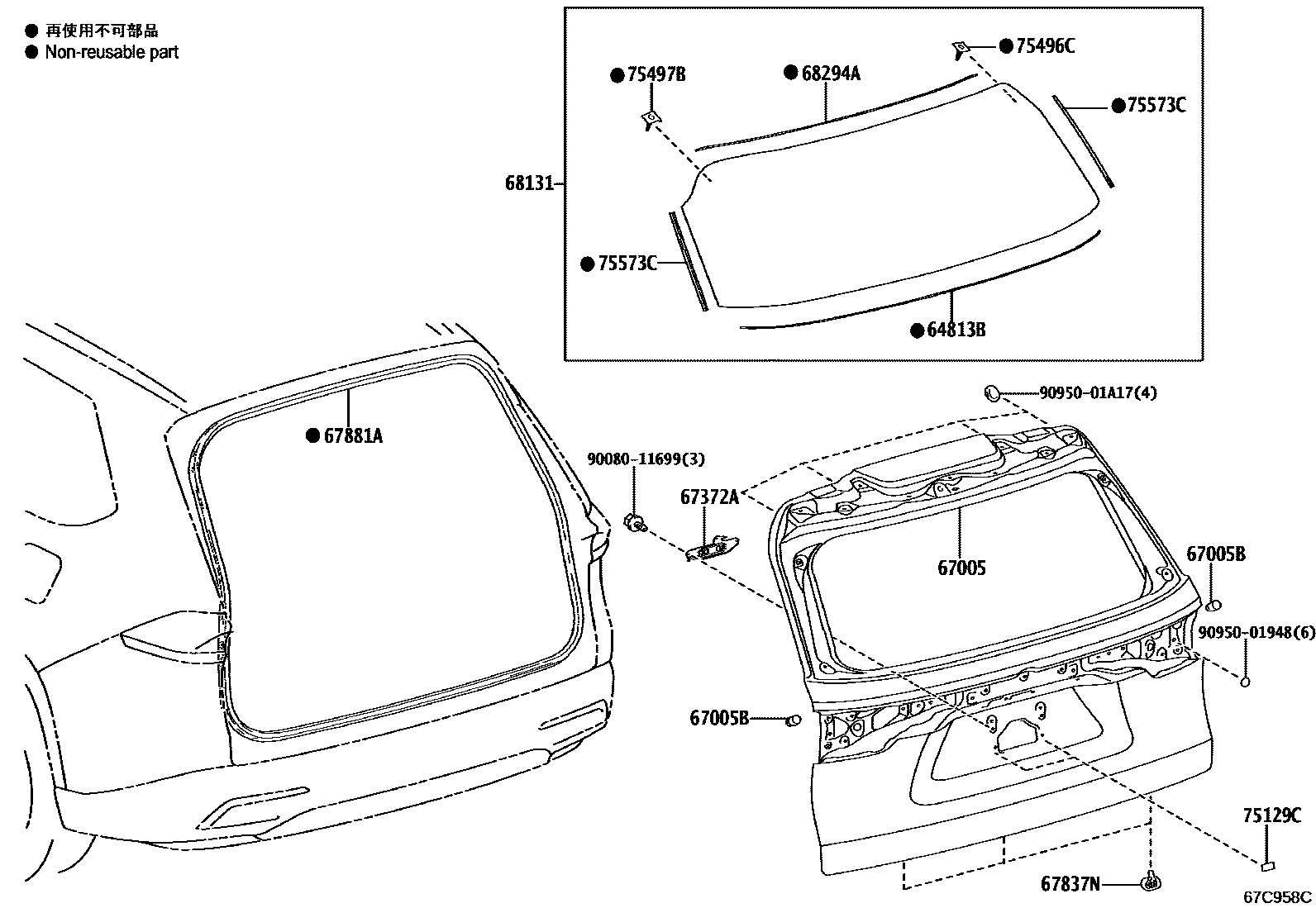

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-0E020iAASH1#,TASA1#,TASH15202306

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E490iAASH1#,TASA1#,TASH15202306

67005BCUSHION(FOR BACK DOOR PANEL)

main68984-0E030iAASH1#,TASA1#,TASH15202306

67372AWEIGHT, BACK DOOR

main67372-0E030iAASH1#,TASA1#,TASH15202306

67837NSEAL, BACK DOOR DUST PROOF

main67837-0E190iAASH1#,TASA1#,TASH15202404

main67837-0R040iAASH1#,TASA1#,TASH15202306-202403

67881AWEATHERSTRIP, BACK DOOR

main67881-0E151iAASH1#,TASA1#,TASH15202306

68131GLASS, BACK DOOR

main68105-0E280iAASH1#,TASA1#,TASH15202306

68294ADAM, BACK DOOR GLASS ADHESIVE

main64813-0E050iAASH1#,TASA1#,TASH15202306

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iAASH1#,TASA1#,TASH15202306

75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH

main75496-0E050iAASH1#,TASA1#,TASH15202306

75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH

main75497-0E050iAASH1#,TASA1#,TASH15202306

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-0E100iAASH1#,TASA1#,TASH15202306

9008011699

main90080-11699

9095001948

main90950-01948

9095001A17

main90950-01A17

15 parts on this diagram · 2 diagrams in section
