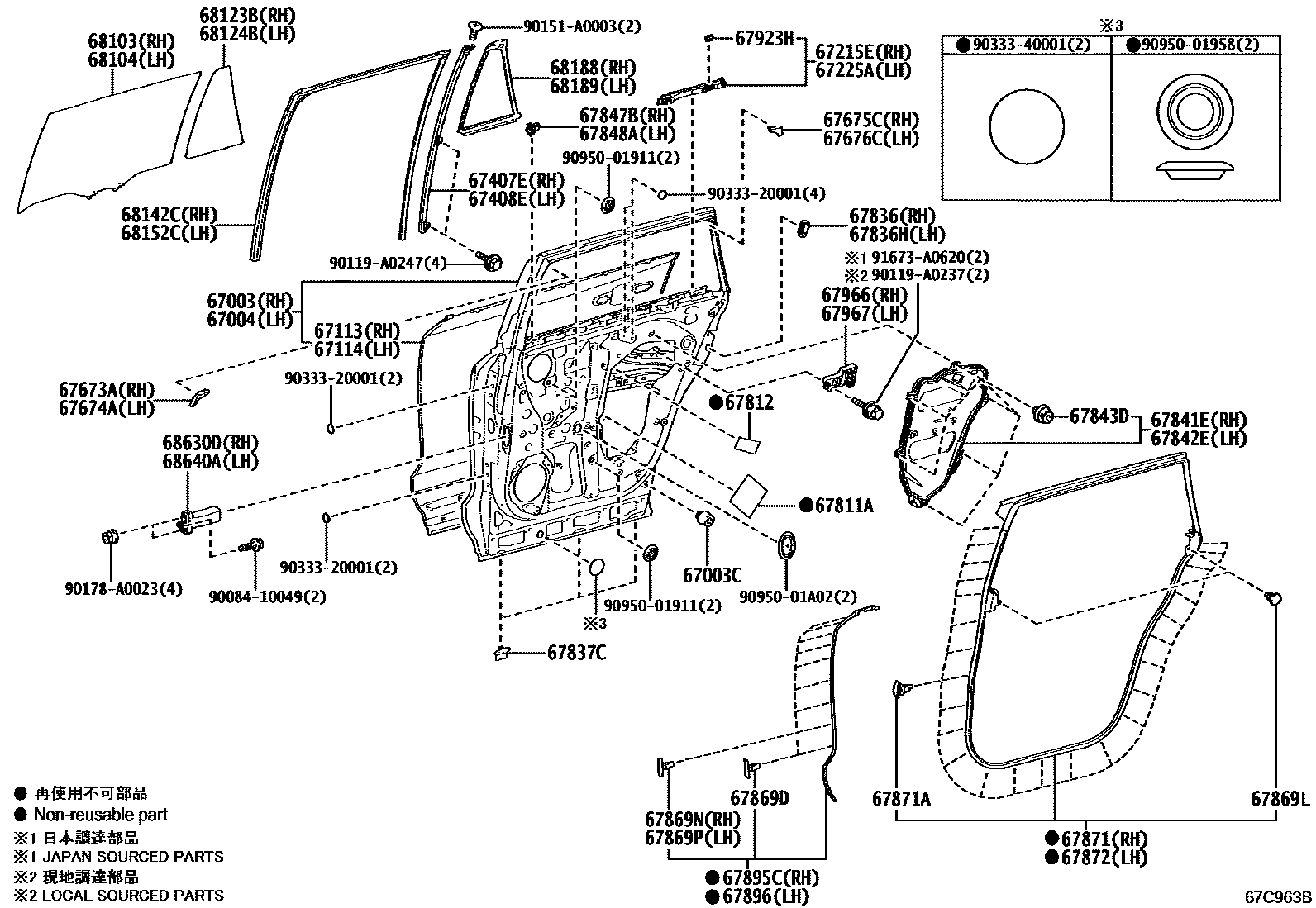

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0E270iAASH1#,TASA1#..N202306

main67003-0E280iAASH1#,TASA1#,TASH15..G,M,V,Z202306

67003CCUSHION, REAR DOOR PANEL

main90541-09124iAASH1#,TASA1#,TASH15202306

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0E260iAASH1#,TASA1#..N202306

main67004-0E270iAASH1#,TASA1#,TASH15..G,M,V,Z202306

67113PANEL, REAR DOOR, OUTER RH

main67113-0E140iAASH1#,TASA1#,TASH15202306

67114PANEL, REAR DOOR, OUTER LH

main67114-0E140iAASH1#,TASA1#,TASH15202306

67215ESTOP, QUARTER WINDOW, UPPER RH

main67215-0E050iAASH1#,TASA1#,TASH15202306

67225ASTOP, QUARTER WINDOW, UPPER LH

main67225-0E050iAASH1#,TASA1#,TASH15202306

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0E150iAASH1#,TASA1#,TASH15202306

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0E140iAASH1#,TASA1#,TASH15202306

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0E140iAASH1#,TASA1#,TASH15202306

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0E100iAASH1#,TASA1#,TASH15202306

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-0E090iAASH1#,TASA1#,TASH15202306

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-0E100iAASH1#,TASA1#,TASH15202306

67811APAD, REAR DOOR SILENCER

main67811-0E030iAASH1#,TASA1#,TASH15202306

67812PAD, REAR DOOR SILENCER

main67811-0E040iAASH1#,TASA1#,TASH15202306

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-48010iAASH1#,TASA1#,TASH15202306

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-48010iAASH1#,TASA1#,TASH15202306

67837CSEAL, REAR DOOR DUST PROOF

main67837-0E060iAASH1#,TASA1#,TASH15202306

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0E150iAASH1#,TASA1#,TASH15202306

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0E150iAASH1#,TASA1#,TASH15202306

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-A0048iAASH1#,TASA1#,TASH15202306

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-0E150iAASH1#,TASA1#,TASH15202306

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-0E100iAASH1#,TASA1#,TASH15202306

67869DCLIP, DOOR WEATHERSTRIP

main67869-78030iAASH1#,TASA1#,TASH15202306

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iAASH1#,TASA1#,TASH15202306

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-78010iAASH1#,TASA1#,TASH15202306

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-78020iAASH1#,TASA1#,TASH15202306

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0E140iAASH1#,TASA1#,TASH15202306

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iAASH1#,TASA1#,TASH15202306

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0E140iAASH1#,TASA1#,TASH15202306

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-0E110iAASH1#,TASA1#,TASH15202306

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-0E110iAASH1#,TASA1#,TASH15202306

67923HRETAINER, DOOR CORNER SEAL

main67923-33100iAASH1#,TASA1#,TASH15202306

67966REINFORCEMENT, SEPARATION DOOR, RH

main67966-0E010iAASH1#,TASA1#,TASH15202306

67967REINFORCEMENT, SEPARATION DOOR, LH

main67967-0E010iAASH1#,TASA1#,TASH15202306

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0E210iAASH1#,TASA1#,TASH15202306

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0E210iAASH1#,TASA1#,TASH15202306

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0E160iAASH1#,TASA1#,TASH15202306

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0E160iAASH1#,TASA1#,TASH15202306

68142CRUN, REAR DOOR GLASS, RH

main68142-0E140iAASH1#,TASA1#,TASH15202306

68152CRUN, REAR DOOR GLASS, LH

main68152-0E140iAASH1#,TASA1#,TASH15202306

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0E090iAASH1#,TASA1#,TASH15202306

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0E090iAASH1#,TASA1#,TASH15202306

68630DCHECK ASSY, REAR DOOR, RH

main68630-48120iAASH1#,TASA1#,TASH15202306

68640ACHECK ASSY, REAR DOOR, LH

main68640-48110iAASH1#,TASA1#,TASH15202306

9008410049

main90084-10049

90119A0237

main90119-A0237

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90178A0023

main90178-A0023

9033320001

main90333-20001

9033340001

main90333-40001

9095001911

main90950-01911

9095001958

main90950-01958

9095001A02

main90950-01A02

91673A0620

main91673-A0620

56 parts on this diagram · 2 diagrams in section
