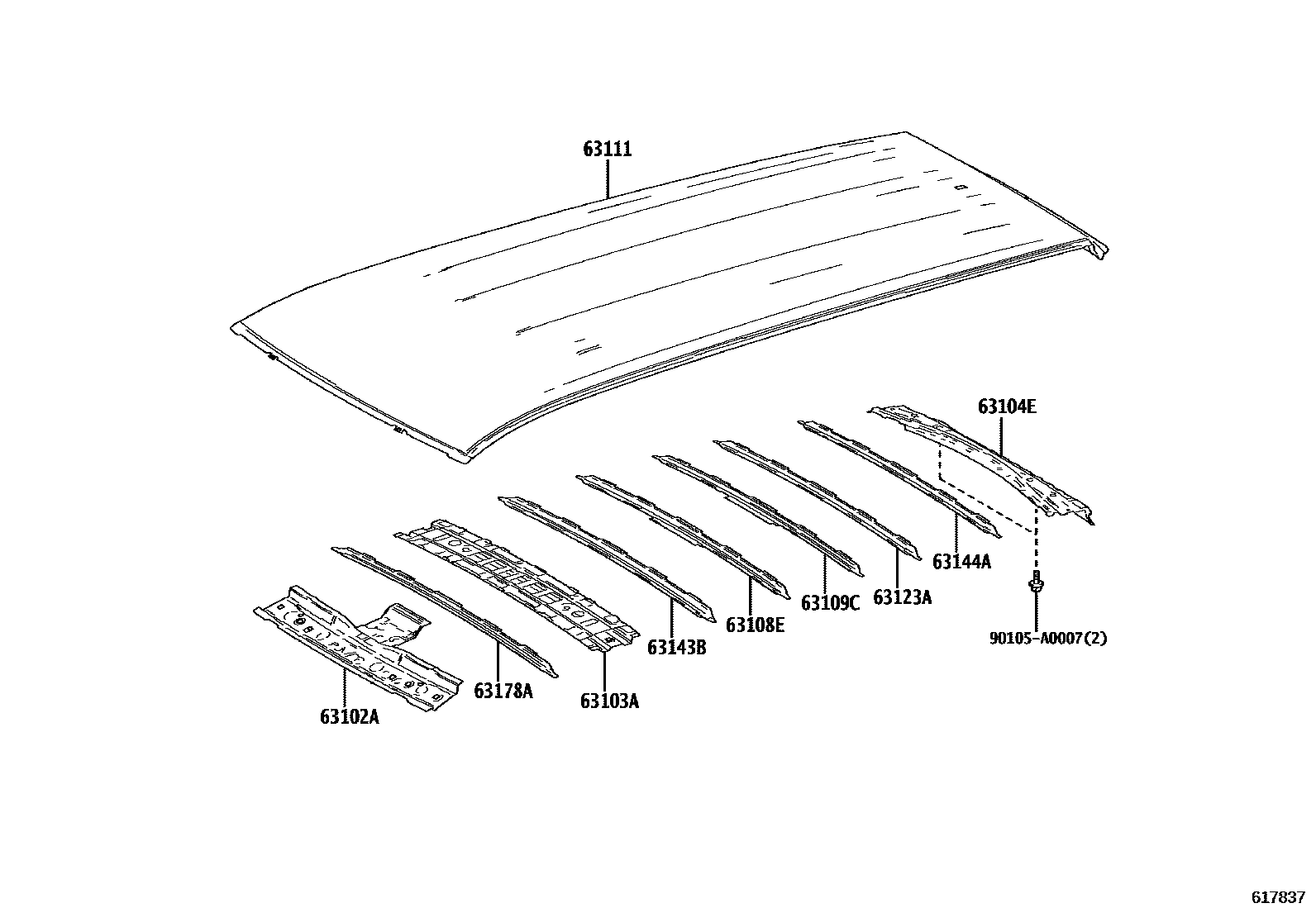

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF & DRAIN HOSE 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E920iAASH1#,TASA1#,TASH15..G,M,N,V202306

main63102-0E921iTASA15,TASH15..Z202306

MOON ROOF-WITH(PANORAMA ROOF)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0E170iAASH1#,TASA1#,TASH15..G,M,N,V202306

main63103-0E180iTASA15,TASH15..Z202306

MOON ROOF-WITH(PANORAMA ROOF)

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0E120iAASH1#,TASA1#,TASH15202306

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-0E020iAASH1#,TASA1#,TASH15..G,M,N,V202306

63109CRETAINER SUB-ASSY, ROOF REINFORCEMENT

main63109-0E010iAASH1#,TASA1#,TASH15..G,M,N,V202306

63111PANEL, ROOF

main63111-0E510iAASH1#,TASA1#..N202306

main63111-0E520iAASH1#,TASA1#,TASH15..G,M,V202306

main63111-0E530iTASA15,TASH15..Z202306

MOON ROOF-WITH(PANORAMA ROOF)

63123AREINFORCEMENT, ROOF PANEL, REAR NO.1

main63125-0E020iAASH1#,TASA1#,TASH15..G,M,N,V202306

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E170iAASH1#,TASA1#,TASH15..G,M,N,V202306

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E150iAASH1#,TASA1#,TASH15202306

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-0E060iAASH1#,TASA1#,TASH15..G,M,N,V202306

90105A0007

main90105-A0007

11 parts on this diagram · 4 diagrams in section
