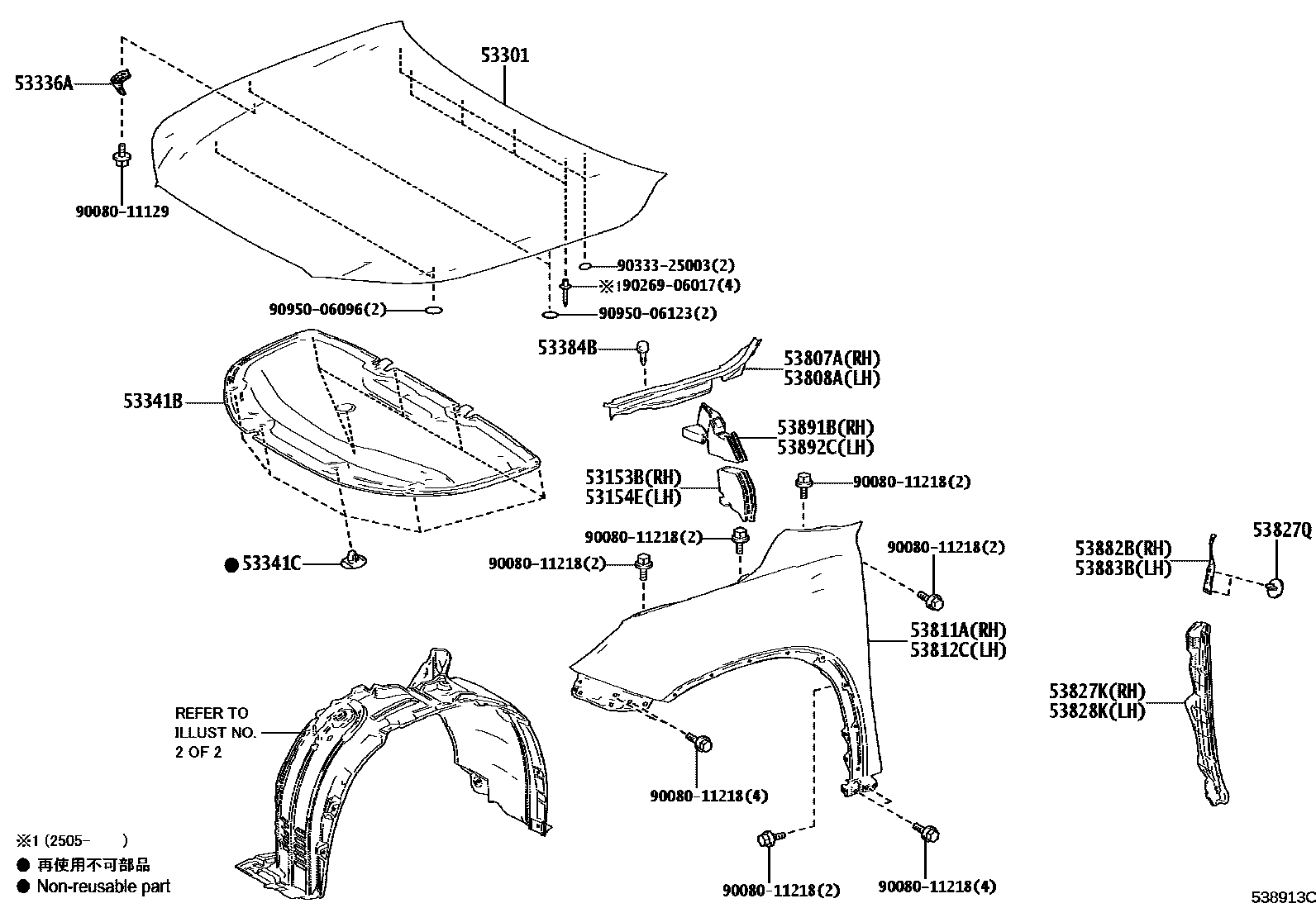

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-0E110iAASH1#,TASA1#,TASH15202306

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-0E110iAASH1#,TASA1#,TASH15202306

53301HOOD SUB-ASSY

main53301-0E270iAASH1#,TASA1#,TASH15202306-202504

53336ABRACKET, HOOD STAY

main53336-0R010iAASH1#,TASA1#,TASH15202306

53341BINSULATOR, HOOD

main53341-0E180iAASH1#,TASA1#,TASH15202306

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003iAASH1#,TASA1#,TASH15202306

53384BCUSHION, HOOD, CENTER

main53384-48030iAASH1#,TASA1#,TASH15202306

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-0E160iAASH1#,TASA1#,TASH15202306

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-0E160iAASH1#,TASA1#,TASH15202306

53811APANEL, FRONT FENDER, RH

main53811-0E240iAASH1#,TASA1#,TASH15202306

53812CPANEL, FRONT FENDER, LH

main53812-0E200iAASH1#,TASA1#,TASH15202306

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0E100iAASH1#,TASA1#,TASH15202306

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAASH1#,TASA1#,TASH15202306

BLACK

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0E100iAASH1#,TASA1#,TASH15202306

53882BSEAL, FRONT FENDER, RH

main53882-0E100iAASH1#,TASA1#,TASH15202306

53883BSEAL, FRONT FENDER, LH

main53883-0E200iAASH1#,TASA1#,TASH15202306

53891BSEAL, FRONT FENDER SPLASH SHIELD, FRONT RH

main53891-0E060iAASH1#,TASA1#,TASH15202306

53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH

main53892-0E060iAASH1#,TASA1#,TASH15202306

9008011129

main90080-11129

9008011218

main90080-11218

9026906017

main90269-06017

9033325003

main90333-25003

9095006096

main90950-06096

9095006123

main90950-06123

24 parts on this diagram · 2 diagrams in section
