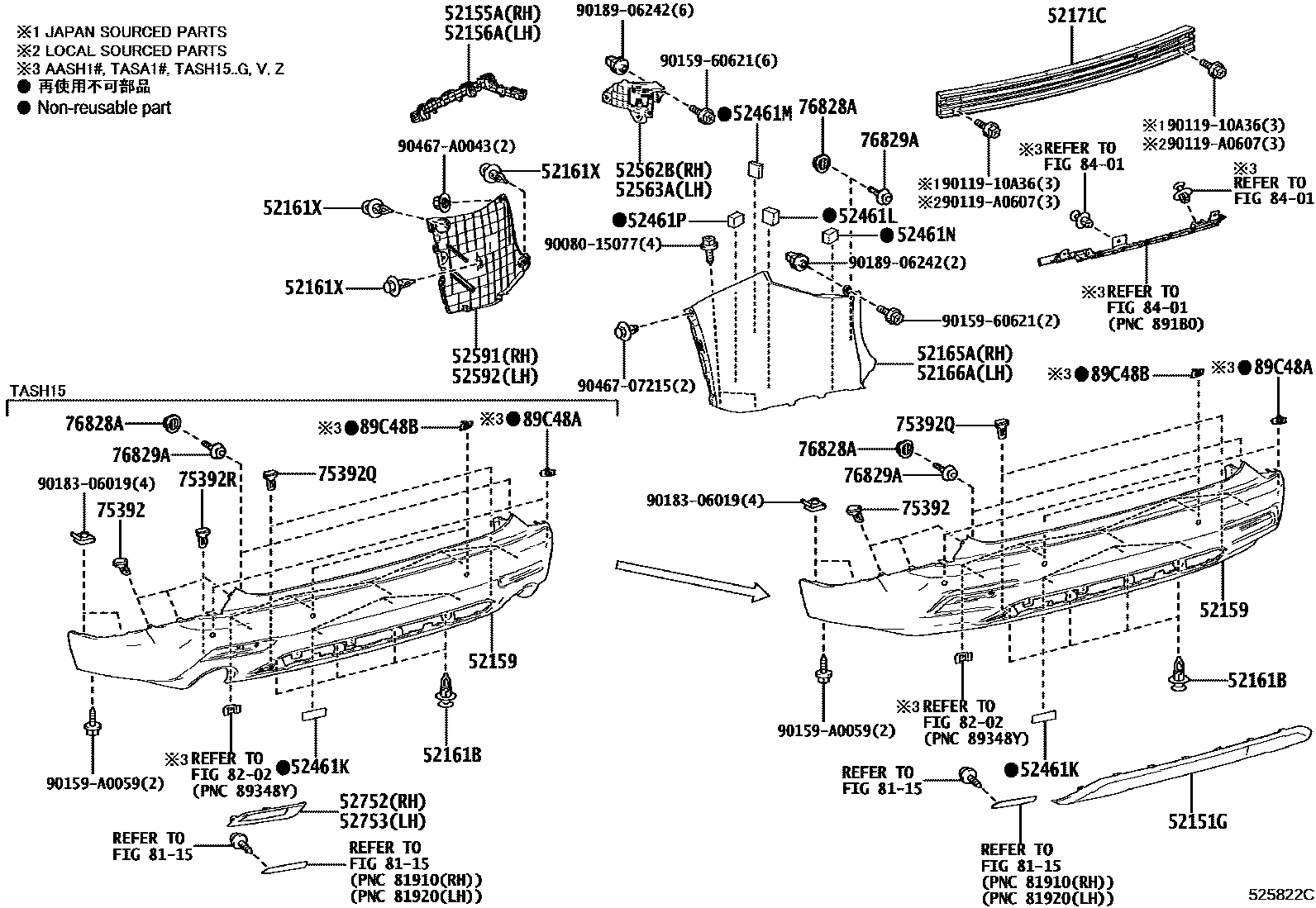

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52165ACOVER, REAR BUMPER, UPR RH
PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52461MPAD, REAR BUMPER, NO.3
52461NPAD, REAR BUMPER, NO.4
52461PPAD, REAR BUMPER, NO.5
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52752MOULDING, REAR BUMPER SIDE, RH
NO PAINT REQ.
52753MOULDING, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
75392RRETAINER, OUTSIDE MOULDING, NO.3
76828ARETAINER, BACK DOOR GARNISH, NO.3
76829ARETAINER, BACK DOOR GARNISH
8115
8202
8401
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9008015077
main90080-15077
9011910A36
main90119-10A36
90119A0607
main90119-A0607
9015960621
main90159-60621
90159A0059
main90159-A0059
9018306019
main90183-06019
9018906242
main90189-06242
9046707215
main90467-07215
90467A0043
main90467-A0043
39 parts on this diagram · 3 diagrams in section
