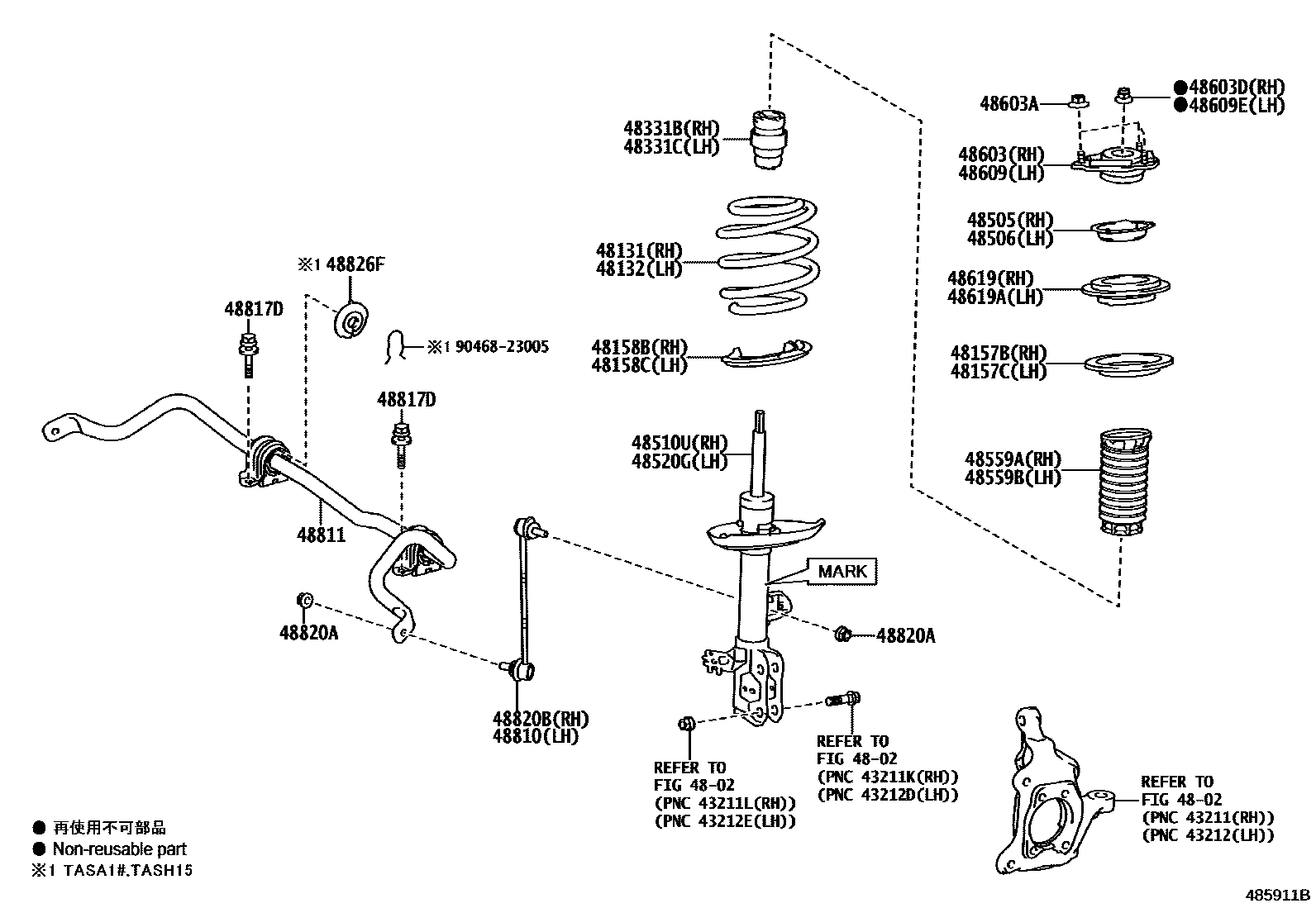

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48505SEAT, FRONT SPRING, RH
48506SEAT, FRONT SPRING, LH
48510UABSORBER SET, SHOCK, FRONT RH
MARK 48510-0E551
MARK 48510-0E561
MARK 48510-0E641
MARK 48510-0E661
48520GABSORBER SET, SHOCK, FRONT LH
MARK 48520-0E541
MARK 48520-0E551
MARK 48520-0E641
MARK 48520-0E661
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48810LINK ASSY, FRONT STABILIZER, LH
48817DBOLT(FOR FRONT STABILIZER)
(J)
(L)
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
48826FPROTECTOR, STABILIZER
9046823005
main90468-23005
29 parts on this diagram · 1 diagram in section
