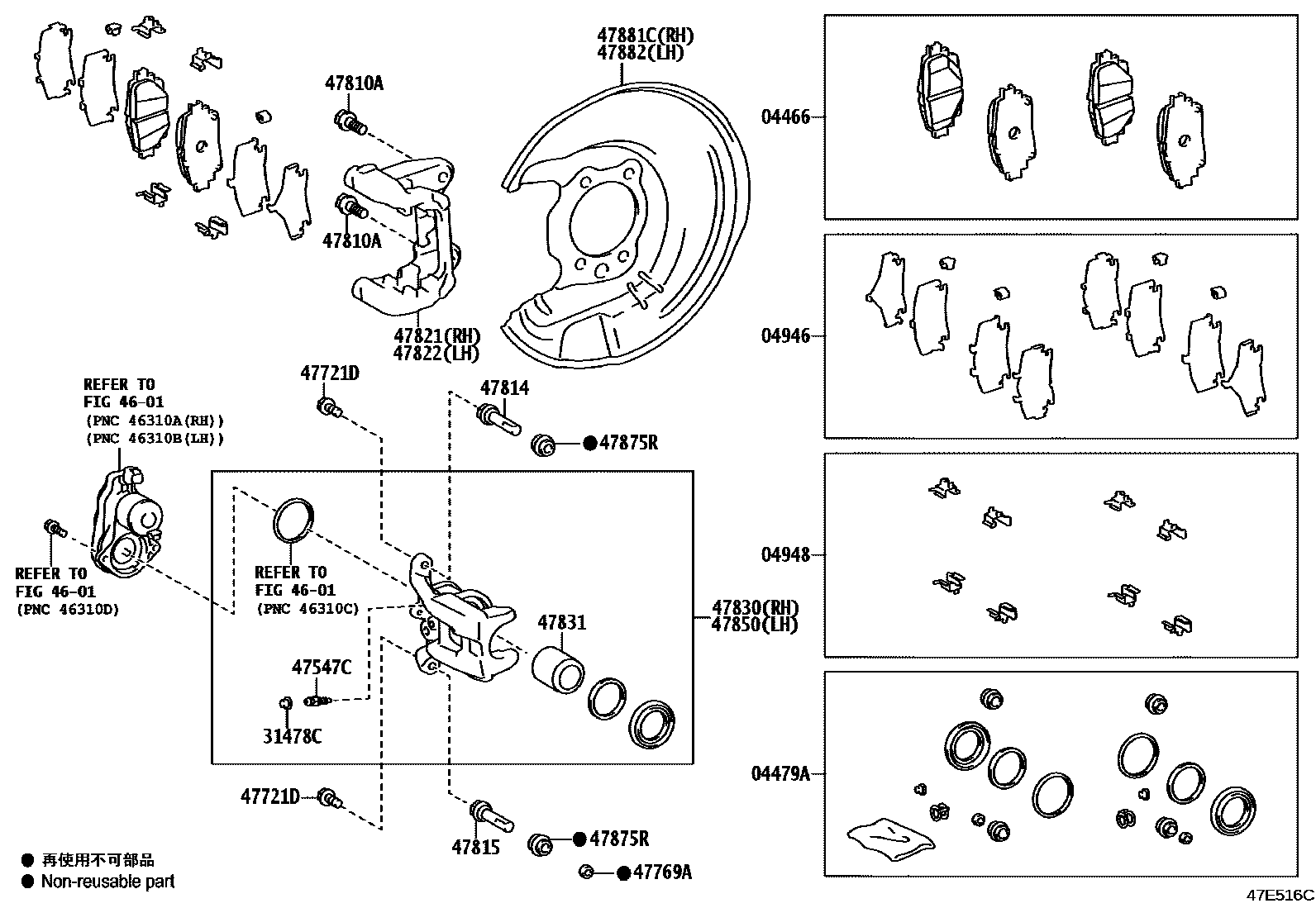

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48170i202306

MARK NBK D6363-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-58031i202306

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48140i202306

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071i202306

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i202306

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i202306

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603i202306

*8-1.00PX23-12.5

sub90016-AA614

main90016-AA614i202409

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010i202306

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-A0486i202306

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050i202409

(L)

main47814-78010i202306

(J)

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050i202409

(L)

main47815-78010i202306

(J)

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E140i202409

(L)

main47821-48160i202306

(J)

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0E140i202409

(L)

main47822-48160i202306

(J)

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E140i202409

(L)

main47830-48160i202306

(J)

47831PISTON, REAR DISC BRAKE

main47831-0E111i202409

(L)

main47831-30460i202306

(J)

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E140i202409

(L)

main47850-48160i202306

(J)

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270i202306

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E050i202306

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E050i202306

20 parts on this diagram · 1 diagram in section
