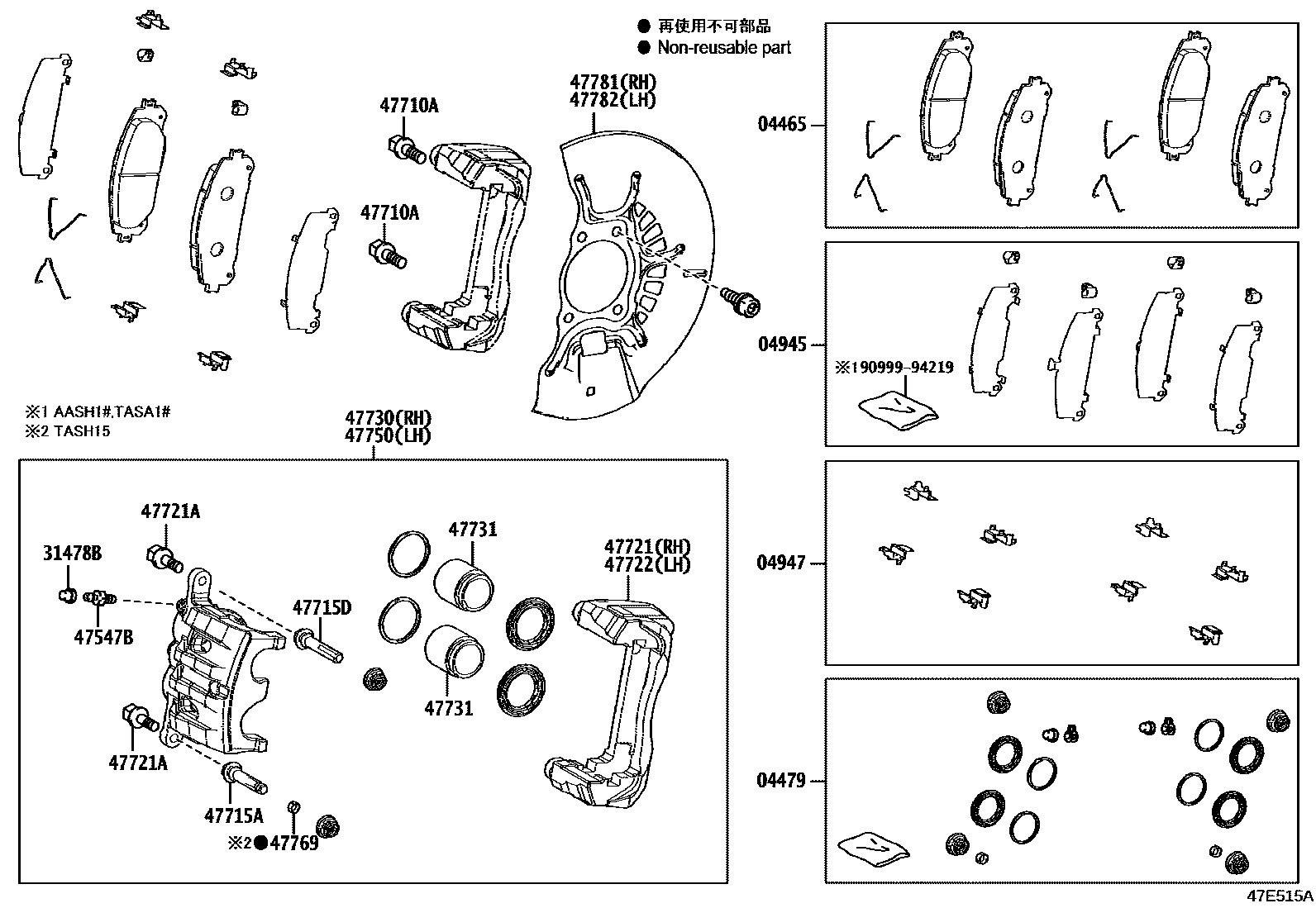

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02530iAASH1#,TASA1#202306

MARK ADVICS VC084H

main04465-48260iTASH15202306

MARK ADVICS VC115

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02440iAASH1#,TASA1#202306

main04478-48210iTASH15202306

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02311iAASH1#,TASA1#202306

main04945-48200iTASH15202306

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E010iAASH1#,TASA1#202306

main04947-48090iTASH15202306

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAASH1#,TASA1#,TASH15202306

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAASH1#,TASA1#,TASH15202306

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14212iAASH1#,TASA1#,TASH15202306

*14-1.5PX35.5-31,(J)

main90105-A0435iAASH1#,TASA1#,TASH15202306

*14-1.5PX35.5-31,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0E070iAASH1#,TASA1#202306

main47715-48200iTASH15202306

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0E070iAASH1#,TASA1#202306

main47714-48200iTASH15202306

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0E071iAASH1#,TASA1#202306

main47721-48220iTASH15202306

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA608iTASH15202306

*10-1.00PX23-9.4

main90016-AA615iAASH1#,TASA1#202306

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0E071iAASH1#,TASA1#202306

main47722-48190iTASH15202306

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0E071iAASH1#,TASA1#202306

main47730-48220iTASH15202306

47731PISTON, FRONT DISC BRAKE

main47731-0E070iAASH1#,TASA1#202306

main47731-48200iTASH15202306

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0E071iAASH1#,TASA1#202306

main47750-48190iTASH15202306

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0E070iTASH15202306

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E060iAASH1#,TASA1#,TASH15202306

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E060iAASH1#,TASA1#,TASH15202306

9099994219

main90999-94219

19 parts on this diagram · 1 diagram in section
