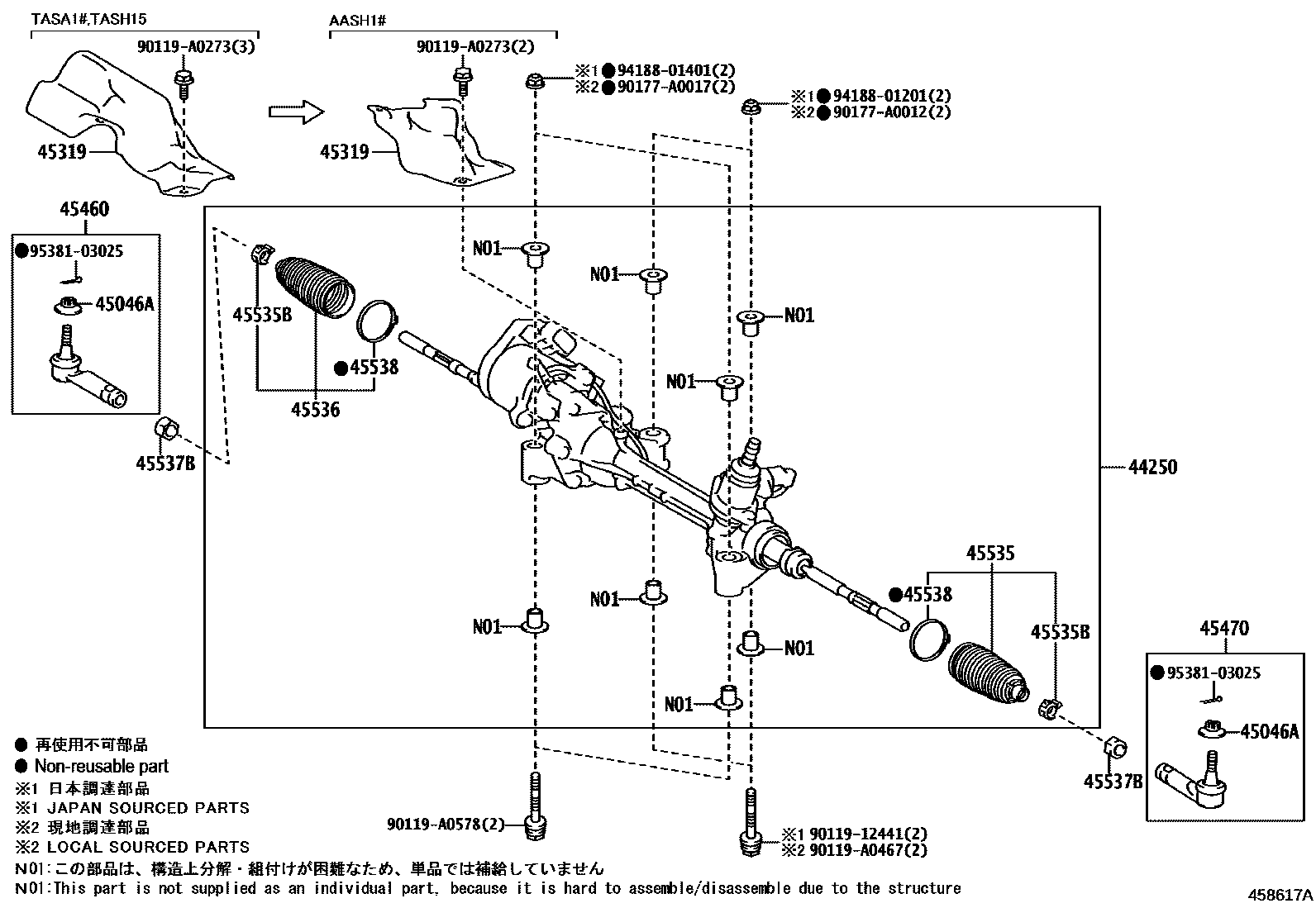

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0E220iAASH1#,TASA1#,TASH15202306

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAASH1#,TASA1#,TASH15202306

45319INSULATOR, STEERING GEAR HEAT

main45319-0R010iAASH1#202306

main45319-F6010iTASA1#,TASH15202306

45460ROD ASSY, TIE, RH

main45460-09470iAASH1#,TASA1#,TASH15202306

45470ROD ASSY, TIE, LH

main45470-09250iAASH1#,TASA1#,TASH15202306

45535BOOT, STEERING RACK, NO.1

main45535-09720iAASH1#,TASA1#,TASH15202306

45535BCLIP(FOR STEERING RACK BOOT)

main45537-08020iAASH1#,TASA1#,TASH15202306

45536BOOT, STEERING RACK, NO.2

main45535-09720iAASH1#,TASA1#,TASH15202306

45537BNUT, RACK END LOCK

main90178-18003iAASH1#,TASA1#,TASH15202306

45538RETAINER, STEERING RACK BOOT

main45538-0T010iAASH1#,TASA1#,TASH15202306

9011912441

main90119-12441

90119A0273

main90119-A0273

90119A0467

main90119-A0467

90119A0578

main90119-A0578

90177A0012

main90177-A0012

90177A0017

main90177-A0017

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

19 parts on this diagram · 1 diagram in section
