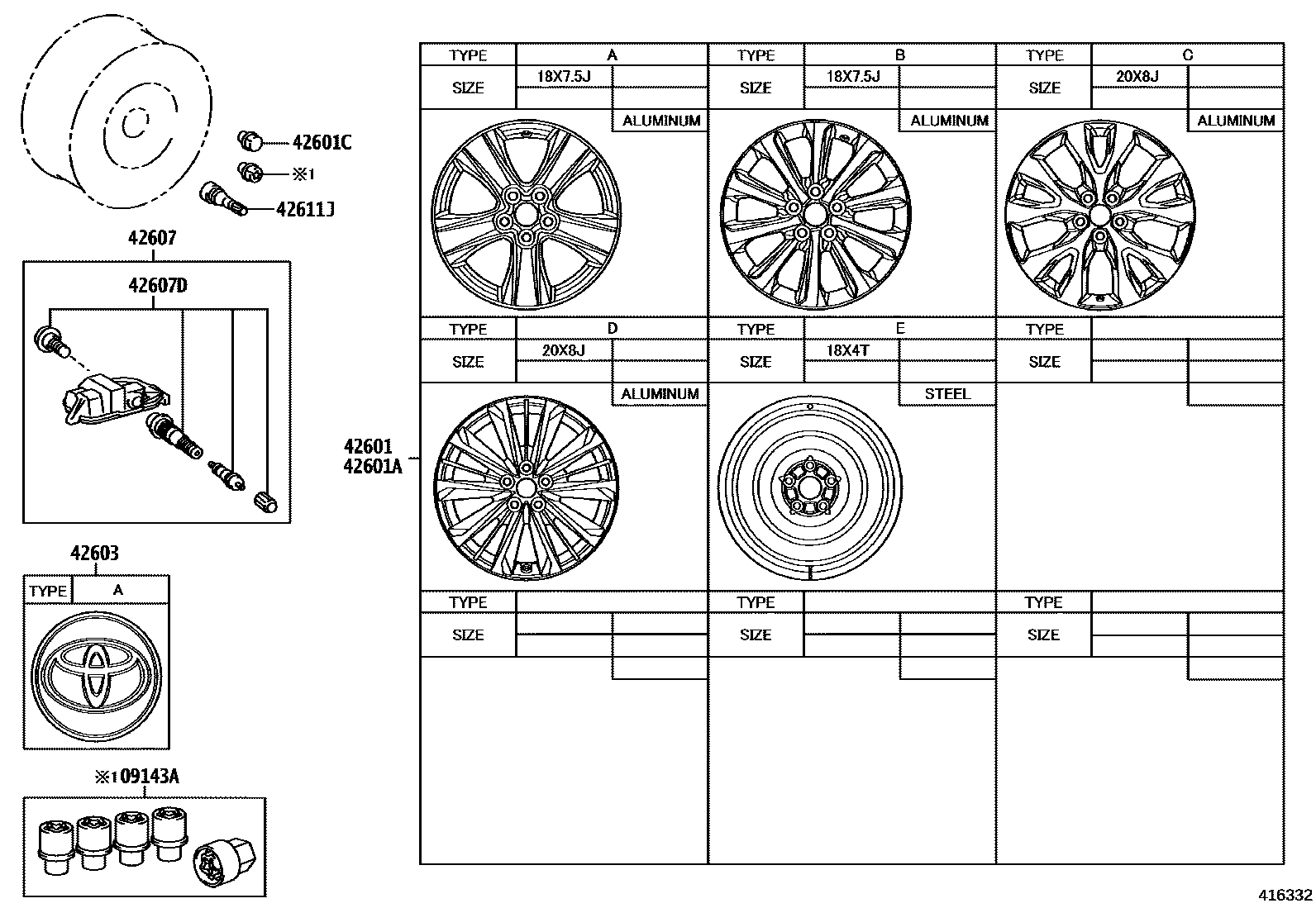

DISC WHEEL & WHEEL CAP

09143ANUT, WHEEL LOCK W/SOCKET WRENCH

42601WHEEL, DISC

main4260D-0E041iTASA15..Z202306

20X8J,CHROME,TYPE D:REFER ILLUST.

main4260D-0E051iTASH15..Z202306

20X8J,CHROME & BLACK,TYPE D:REFER ILLUST.

main42611-0EA01iAASH1#,TASA1#..N202306

18X7.5J, #,TYPE A:REFER ILLUST.

main42611-0EA11iAASH1#,TASA1#..M202306

18X7.5J, #,TYPE B:REFER ILLUST.

main42611-0EA31iTASH15..V202306

20X8J,BLACK,TYPE C:REFER ILLUST.

main4261A-0E311iAASH1#,TASA1#..G202306

20X8J,CHROME,TYPE C:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0E060iAASH1#,TASA1#,TASH15202306

18X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-A1007iAASH1#,TASA1#,TASH15202306

WHEEL LOCKS-WITH

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0E070iAASH1#,TASA1#,TASH15202306

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-0E090iAASH1#,TASA1#,TASH15202306

42607DVALVE, TIRE PRESSURE MONITOR

main90942-A5010iAASH1#,TASA1#,TASH15202306

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45006iAASH1#,TASA1#,TASH15202306

8 parts on this diagram · 1 diagram in section
